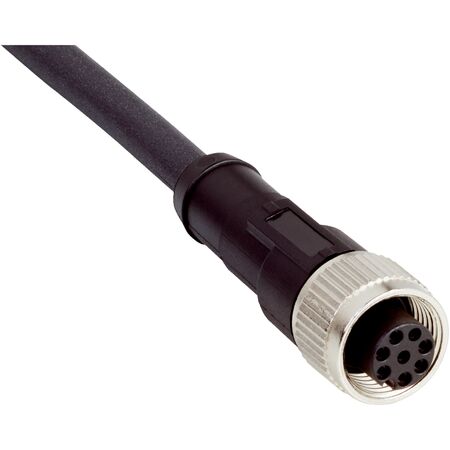

M12 Sensor Cable | 8-Pin Female Connector | Shielded Actuator Cable | IP67 Rated | by SICK
The M12 Sensor Cable is designed for reliable industrial automation, featuring an 8-pin female connector and a durable PVC jacket. With IP67 rating for dust and water protection, this shielded actuator cable ensures optimal signal transmission in factory machinery and robotics applications. Ideal for professionals seeking dependable connections in control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight
- Connection type head B: Flying leads
- Connector material: PVC
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 5 m
- Cable type: 8-wire, PVC jacketed
- Cable diameter: 6.1 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter
- Operating temperature flexible use: +5 °C to +80 °C
- Stationary position temperature: –40 °C to +80 °C
- Head temperature range: –25 °C to +90 °C
- Current loading: 2 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP67
- UL File No.: CYJV.E335179
- Dimensions (H x L x W): 10mm x 5000mm x 10mm
- Weight: 0.1 kg
Key Features
- Shielded sensor/actuator cable for reliable signal transmission
- M12, 8-pin female connector with straight design
- Durable PVC jacket and connector material
- IP67 rated for dust and water protection
- Special color code for easy identification
- Flexible use temperature range from +5 °C to +80 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial sensor cabling to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation sensor and actuator connections
- Factory machinery wiring
- Robotics and control systems requiring shielded sensor cables
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Shielding minimizes electromagnetic interference, improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DOL-1208-G05MF sensor/actuator cable is available for immediate purchase, ideal for industrial automation and control system applications.
