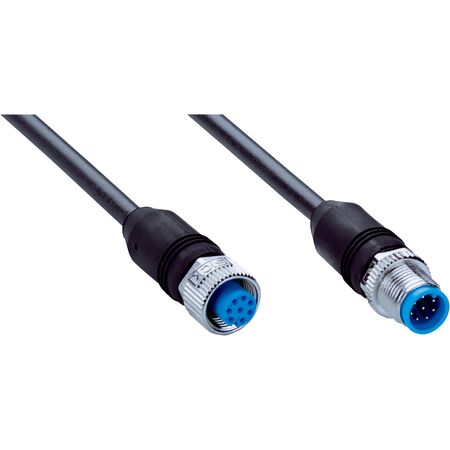

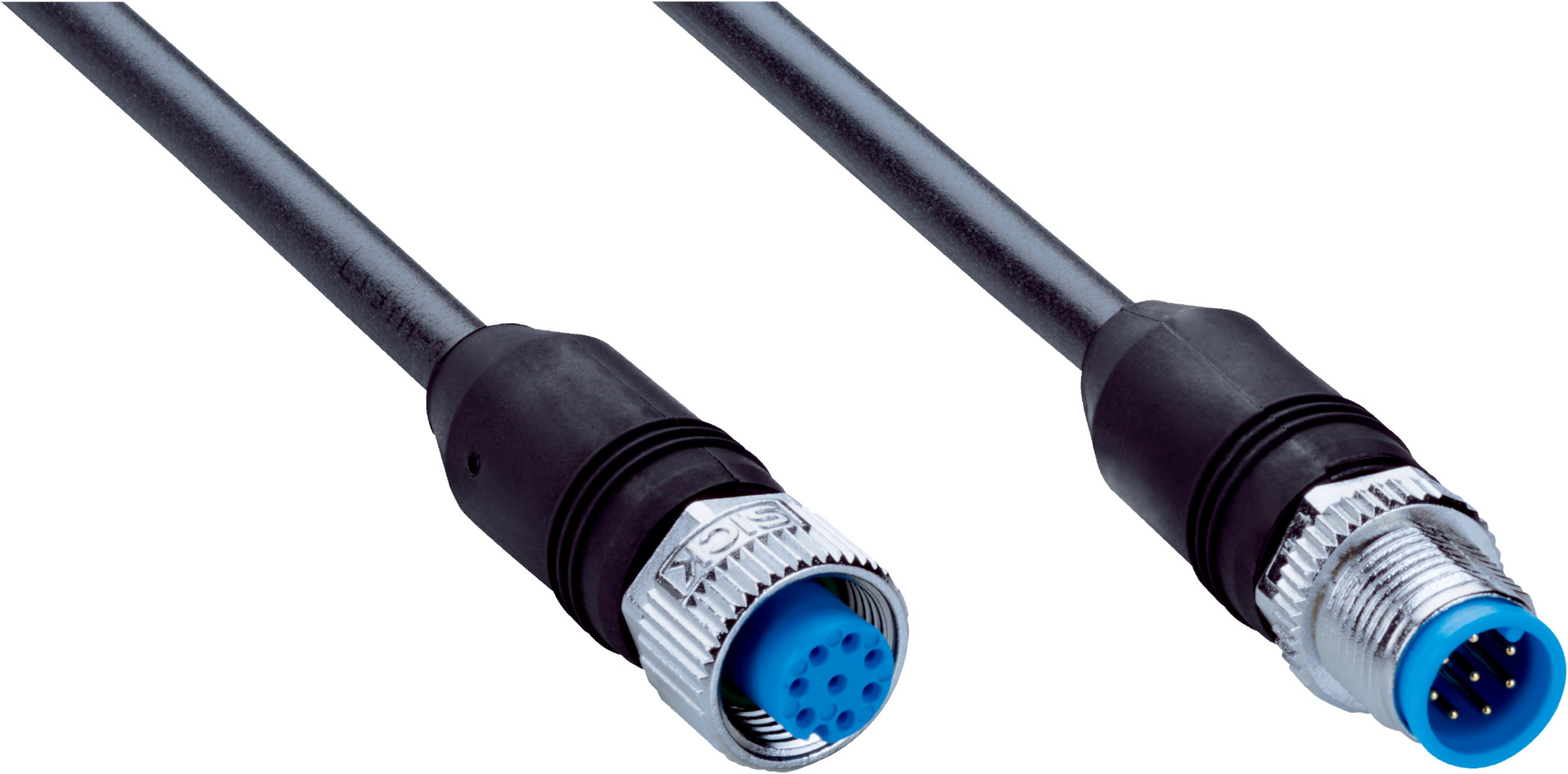

M12 Sensor Cable | 8-Pin Female & Male Connectors | IP65/IP66K/IP67 Rated | by SICK
The M12 Sensor Cable YF2A18-C60UA5M2A18 features 8-pin female and male connectors, designed for robust applications in industrial automation and robotics. With a cable length of 0.6 m and an IP65/IP66K/IP67 enclosure rating, it ensures reliable performance in uncontaminated zones and environments with oils and lubricants. Built for flexibility and durability, this cable is perfect for drag chain operations and offers a wide operating temperature range from -40 °C to +85 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight, A-coded
- Connection type head B: Male connector, M12, 8-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 0.6 m, 8-wire, PUR, halogen-free
- Cable diameter: 5.8 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature drag chain operation: -25 °C to +80 °C
- Head temperature range: -25 °C to +85 °C
- Bending cycles: 10,000,000
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2,500 V AC
- Rated impulse voltage: 0.8 kV
- Current loading: 2 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 10mm x 600mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 8-pin, straight, A-coded on head A
- Male connector, M12, 8-pin, straight, A-coded on head B
- Screw connection locking plug connector
- Cable length 0.6 m, 8-wire, PUR, halogen-free
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- Enclosure rating IP65 / IP66K / IP67 for robust protection
- Torsion force 180° per meter with 2,000,000 torsion cycles
- Nominal voltage 300 V AC and current loading 2 A
- Flame retardant cable according to UL 1581 and IEC 60332 standards
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable design extends product life reducing waste
- Flame retardant materials enhance safety and environmental protection
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A18-C60UA5M2A18 sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and drag chain applications.
