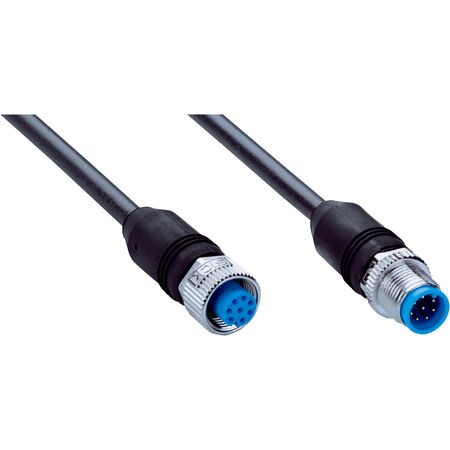

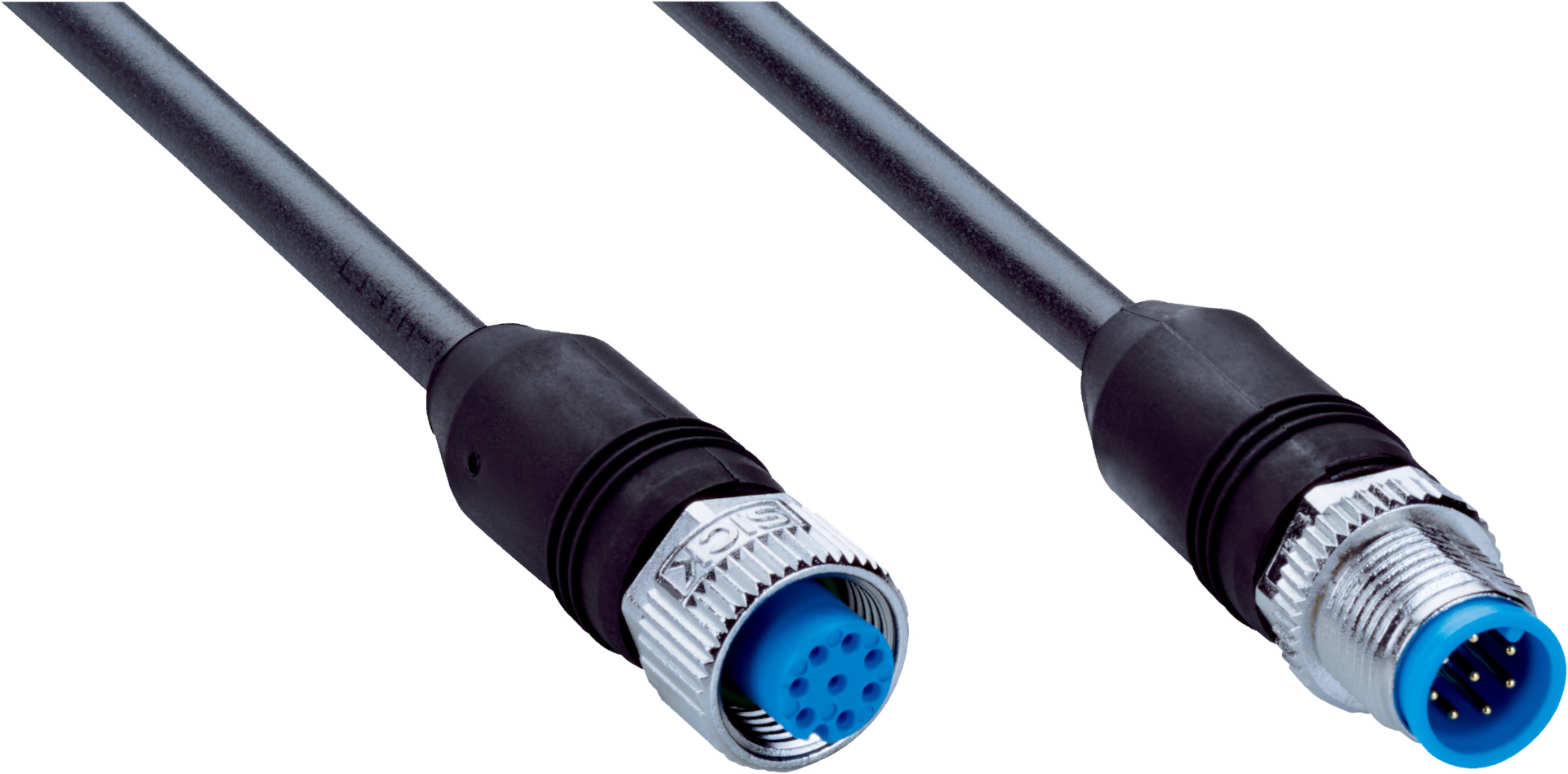

M12 Sensor Cable | 8-Pin Female & Male Connectors | IP65/IP66K/IP67 Rated | by SICK
The M12 Sensor Cable YF2A28-050UA6M2A28 features 8-pin female and male connectors, designed for robust industrial applications. With a high durability rating of 5,000,000 bending cycles and an operating temperature range of -40 °C to +85 °C, this cable is perfect for robot applications and drag chain operations. Its shielded PUR halogen-free jacket ensures reliable performance in uncontaminated zones and areas with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight, A-coded
- Connection type head B: Male connector, M12, 8-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 5 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 0.8 kV
- Current loading: 2 A
- Traversing speed: 3.3 m/s
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 30° / 1 m
- Bending cycles: 5,000,000
- Torsion cycles: 2,000,000
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary: -40 °C to +80 °C
- Operating temperature drag chain: -25 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Dimensions (H x L x W): 13mm x 5000mm x 13mm
- Weight: 0.2 kg
Key Features
- Female and male M12, 8-pin, straight, A-coded connectors
- Screw connection locking plug
- Shielded cable with PUR halogen-free jacket
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- High durability with 5,000,000 bending cycles and 2,000,000 torsion cycles
- IP65 / IP66K / IP67 enclosure rating for robust protection
- Flame retardant according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper connection and compliance with electrical safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A28-050UA6M2A28 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotic applications requiring durable and flexible cabling.
