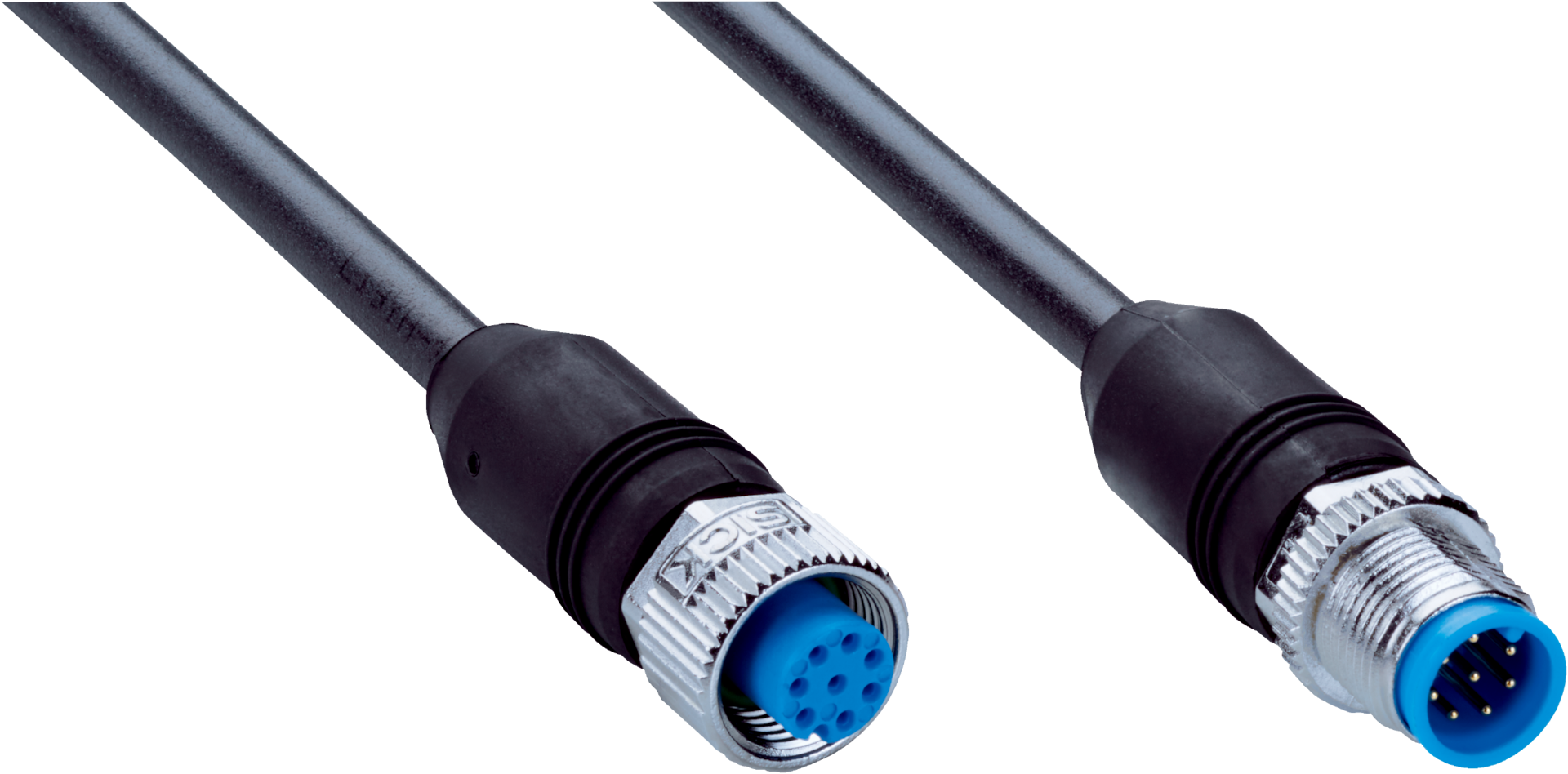

M12 Sensor Cable | 8-Pin Female & Male Connectors | Shielded PUR | IP65/IP66/IP67 Rated | by SICK
The M12 Sensor Cable features 8-pin female and male connectors, designed for reliable connections in industrial automation and robotic applications. With a durable shielded PUR construction and an IP65/IP66/IP67 rating, this cable is perfect for environments with oils and lubricants, ensuring flexibility and longevity even in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, M12 Actuator Cable, PUR Sensor Cable, Shielded M12 Cable, Industrial Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight, A-coded
- Connection type head B: Male connector, M12, 8-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 2 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C, Drag chain operation -25 °C to +80 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Current loading: 2 A
- Rated impulse voltage: 0.8 kV
- Torsion force: 30° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Enclosure rating: IP65 / IP66K / IP67
- Thermal resistance: Flame retardant according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- Dimensions (H x L x W): 7mm x 2000mm x 7mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 8-pin, straight, A-coded on head A
- Male connector, M12, 8-pin, straight, A-coded on head B
- Screw connection locking plug connector
- TPU connector material with black color
- Zinc die-cast, nickel-plated locking nut
- FKM seal material
- 2 m length, 8-wire PUR halogen-free cable
- Cable diameter 7 mm with 0.25 mm² conductor cross section
- Shielded cable with bending radius suitable for flexible use, stationary position, and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- High bending and torsion cycle durability
- Nominal voltage 300 V AC and test voltage 2000 V AC
- Current loading 2 A
- UL File No. E335179 certified
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Zones with oils and lubricants
- Robot applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Durable design extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

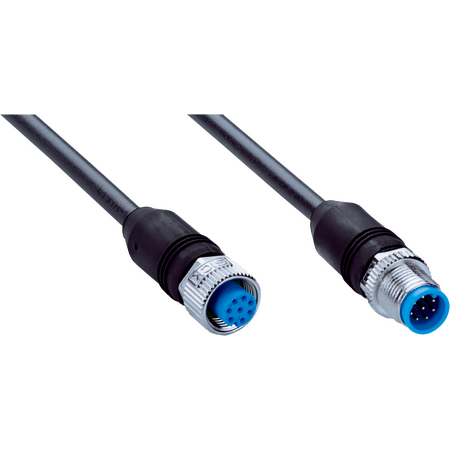

The SICK YF2A28-020UA6M2A28 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotic applications requiring durable and flexible cabling.
