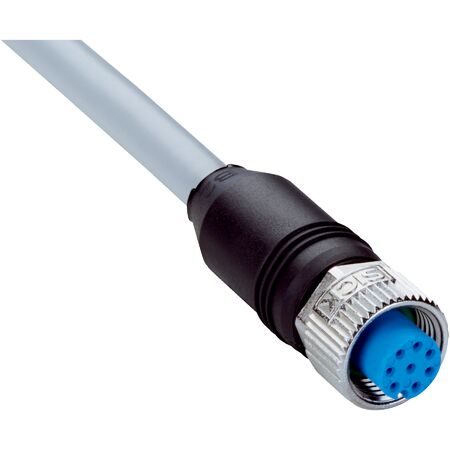

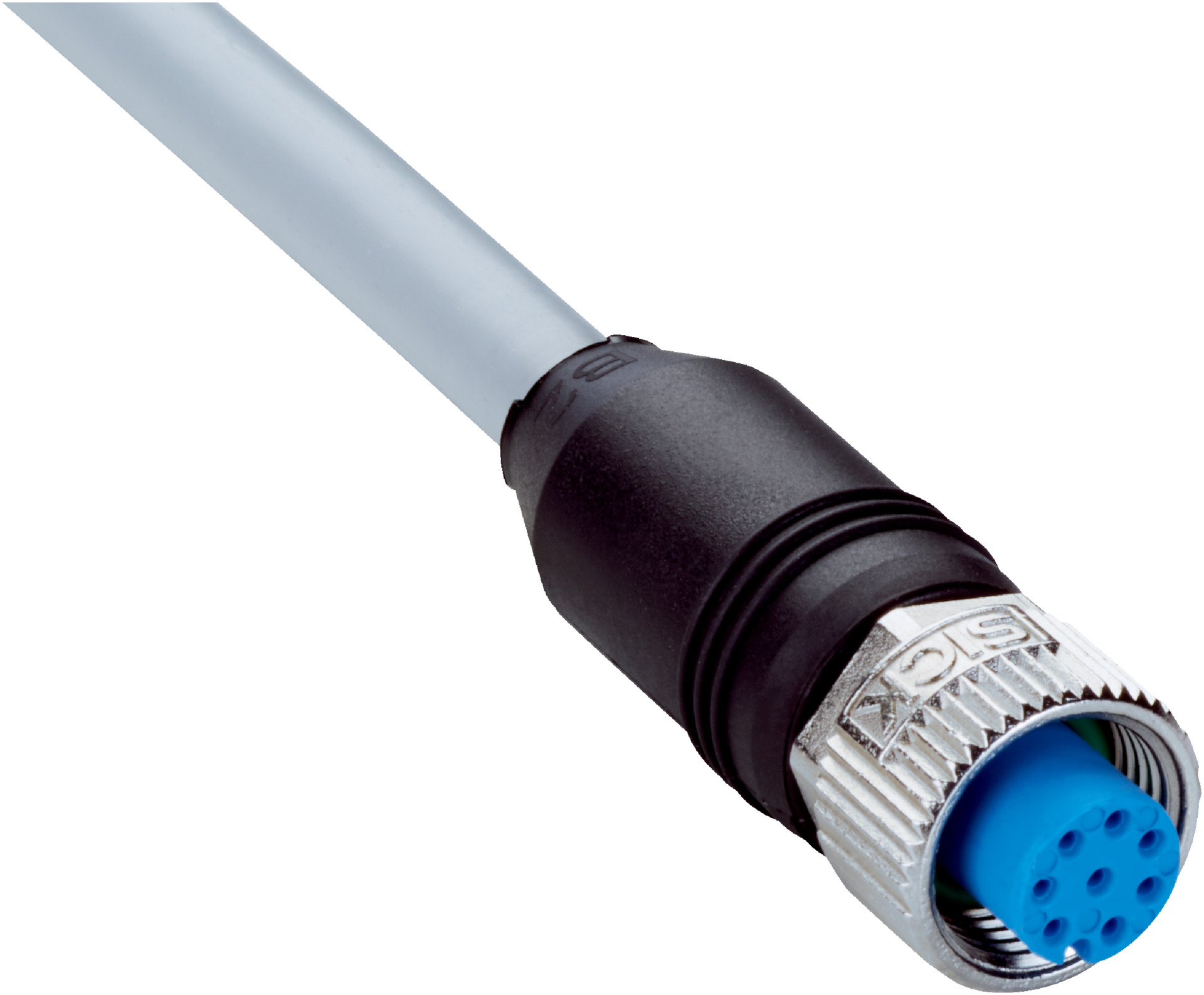

M12 Sensor Cable | 8-Pin Female Connector | IP65/IP66K/IP67 Rated | 10m Length | by SICK
The M12 Sensor Cable features a robust 8-pin female connector and a shielded 8-wire PVC cable, making it ideal for industrial automation and chemical zone applications. With an impressive IP65/IP66K/IP67 protection rating and a flexible operating temperature range from -30 °C to +85 °C, this cable ensures reliable performance in demanding environments. Designed for professional installation, it meets safety standards and offers long-lasting durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 10 m
- Cable type: 8-wire, shielded, PVC jacket
- Cable diameter: 7 mm
- Conductor cross section: 0.25 mm²
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2000 V AC
- Rated impulse voltage: 0.8 kV
- Current loading: 2 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use -5 °C to +80 °C, Stationary -30 °C to +80 °C, Head -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 7mm x 10000mm x 13mm
- Weight: 0.2 kg
Key Features
- Female M12, 8-pin, straight, A-coded connector
- Shielded 8-wire PVC cable with 10 m length
- High protection rating: IP65 / IP66K / IP67
- Flame retardant cable jacket according to UL 1581 VW1 / CSA FT1
- Screw locking plug connector with zinc die-cast nickel-plated nut
- Operating temperature range from -30 °C to +85 °C depending on use
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation sensor and actuator connections
- Chemical zone applications
- Uncontaminated zones requiring reliable sensor cabling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and flame retardant materials reduce fire risk and increase safety
- Long cable life reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A28-100VA6XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and chemical zone sensor applications.
