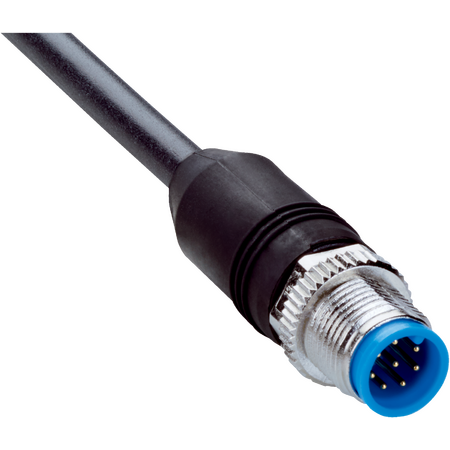

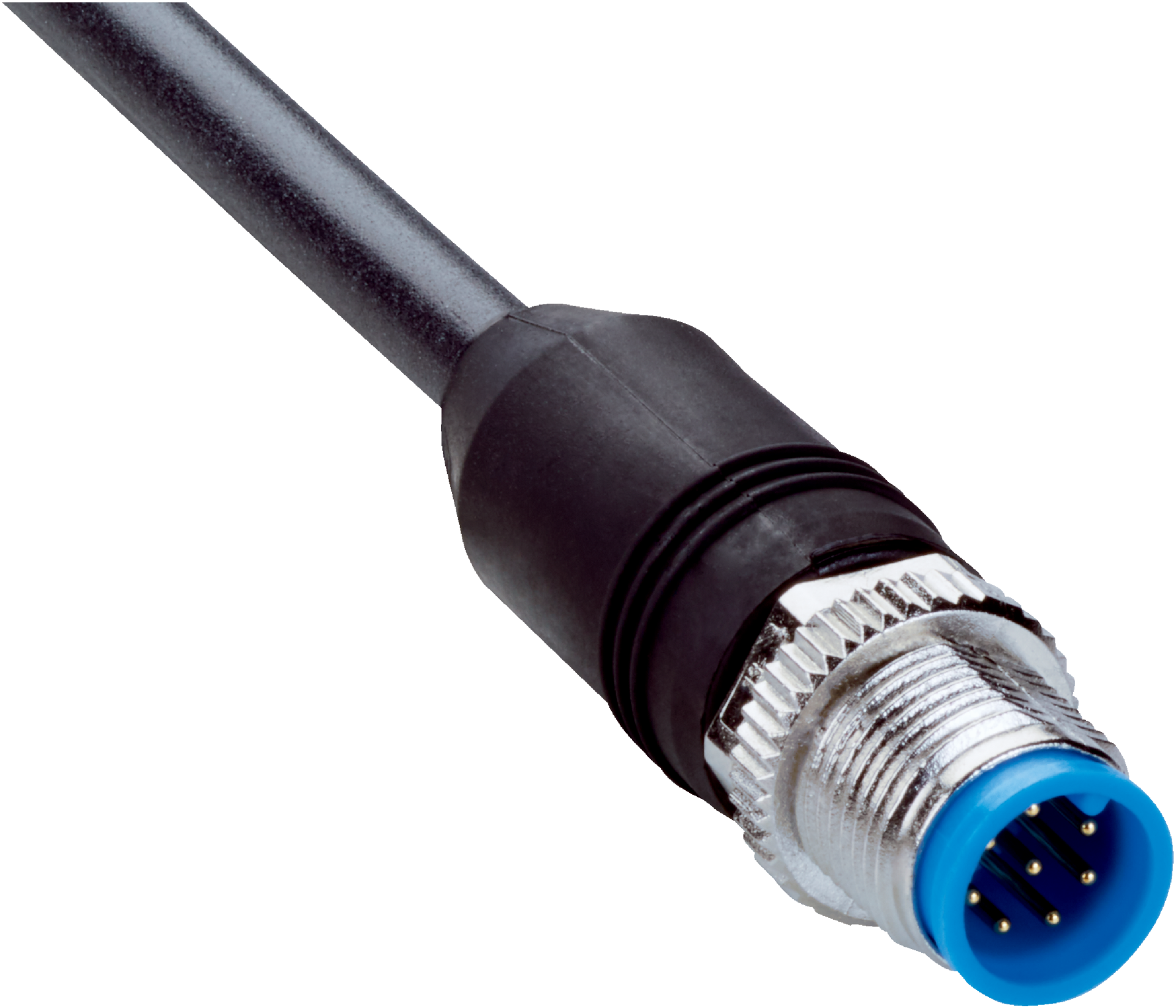

M12 Sensor Cable | 8-Pin Male Connector | IP65/IP66K/IP67 Rated | 1m Length | by SICK
The M12 Sensor Cable features an 8-pin male connector and flying leads, making it perfect for industrial automation and robotics applications. With a robust IP65/IP66K/IP67 enclosure rating and a flexible operating temperature range from -40 °C to +85 °C, this halogen-free cable ensures reliable performance in challenging environments. Ideal for drag chain operation and zones with oils and lubricants, it’s built to last with a torsion force of 180° per meter and 2,000,000 torsion cycles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable M12 8-pin, SICK Sensor Cable, Industrial Sensor Cable
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 1 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 5.8 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Drag chain -25 °C to +80 °C, Head -25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Current loading: 2 A
- Torsion force: 180° per meter
- Torsion cycles: 2,000,000
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 1000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector, M12, 8-pin, straight, A-coded
- Flying leads with screw connection locking plug
- Cable: 1 m, 8-wire, PUR, halogen-free, black
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- Enclosure rating IP65 / IP66K / IP67 for robust protection
- Torsion force 180° per meter with 2,000,000 torsion cycles
- Nominal voltage 300 V AC, current loading 2 A
- Flame retardant cable according to UL 1581 and IEC standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor cabling and electrical safety standards.
Applications
- Drag chain operation
- Zones with oils and lubricants
- Robotics
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces harmful emissions in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YM2A18-010UA5XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotics applications.
