M12 Sensor Cable | 8-Pin Straight Connectors | Shielded & Halogen-Free | IP65/IP67 Rated | by SICK
The M12 Sensor Cable is designed for industrial automation, featuring 8-pin straight connectors for reliable signal transmission. With a halogen-free PUR jacket and IP65/IP67 rating, it ensures durability and safety in various applications, including factory automation and robotics. This cable supports flexible use from -25°C to +80°C, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications

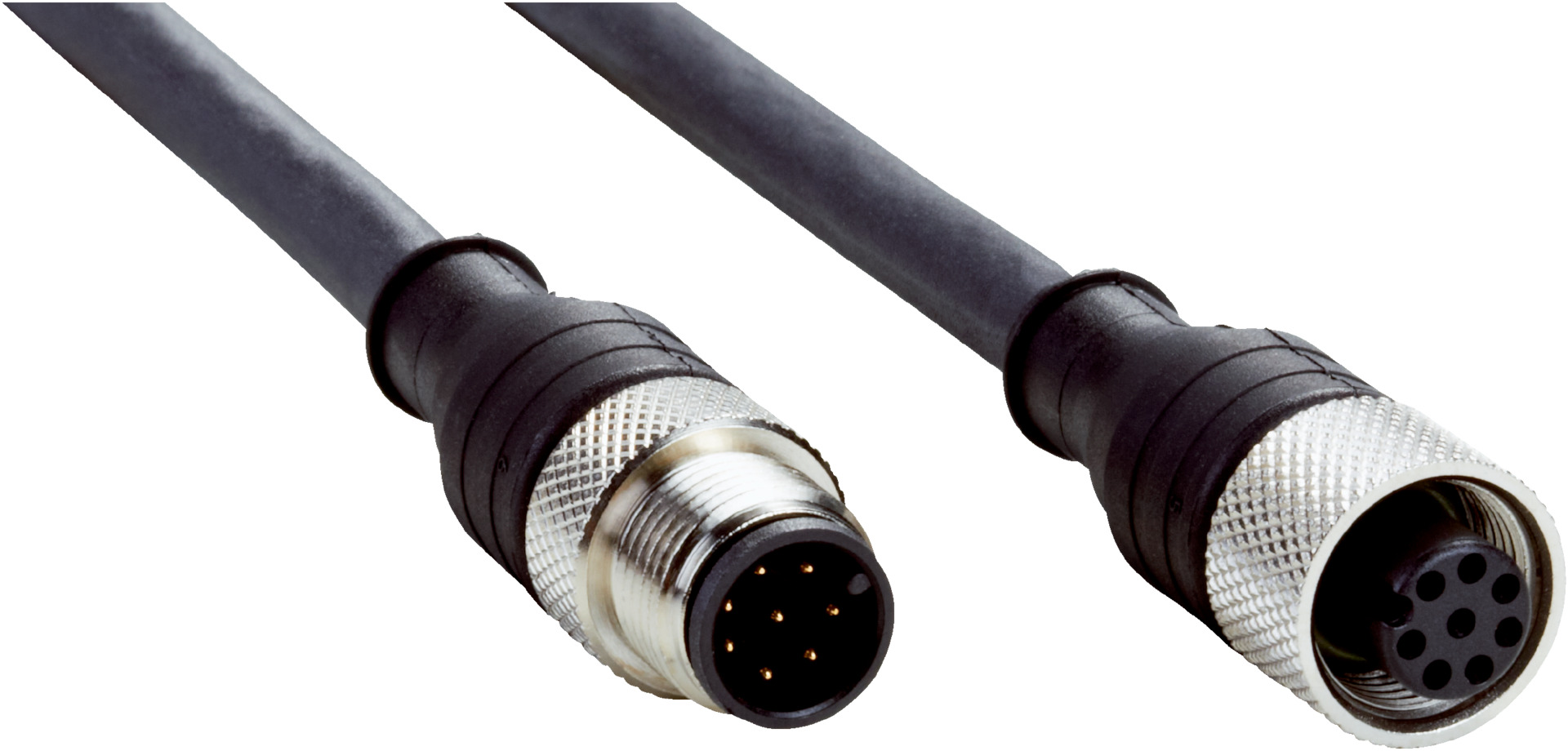

- Connection type head A: Female connector, M12, 8-pin, straight
- Connection type head B: Male connector, M12, 8-pin, straight
- Connector material: TPU
- Locking nut material: CuZn, nickel-plated brass
- Tightening torque: 0.5 Nm
- Cable length: 20 m
- Cable type: 7-wire, PUR, halogen-free
- Cable diameter: 6 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -25°C to +80°C
- Operating temperature stationary position: -50°C to +80°C
- Drag chain operation temperature: -25°C to +60°C
- Current loading: 2 A
- Traversing speed: 3.3 m/s
- Acceleration: ≤ 5 m/s²
- Enclosure rating: IP65/IP67 (EN 60529)
- Authorizations: UL recognized (AWM Style 20549 and 10493)
- Dimensions (H x L x W): 6mm x 20000mm x 6mm
- Weight: 0.5 kg
Key Features
- Female and male M12, 8-pin straight connectors
- Shielded sensor/actuator cable for reliable signal transmission
- Halogen-free PUR jacket for enhanced safety and durability
- High bending cycle resistance with over 2,000,000 bending cycles
- IP65/IP67 rated for protection against dust and water ingress
- Suitable for flexible use from -25°C to +80°C and stationary use from -50°C to +80°C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation sensor and actuator connections
- Factory automation and control systems
- Robotics and machinery requiring flexible, shielded cabling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable jacket reduces harmful emissions in case of fire
- Durable materials extend product life, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now

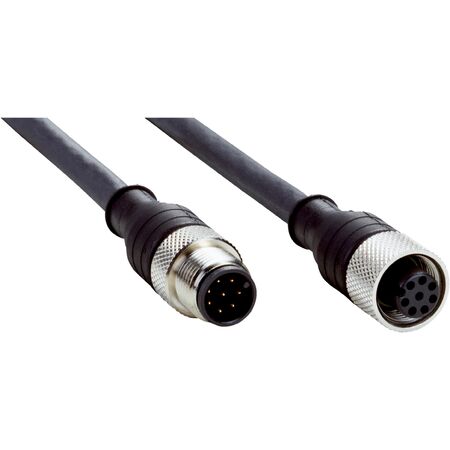

The SICK DSL-127SG20ME25KM0 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and control system applications.
