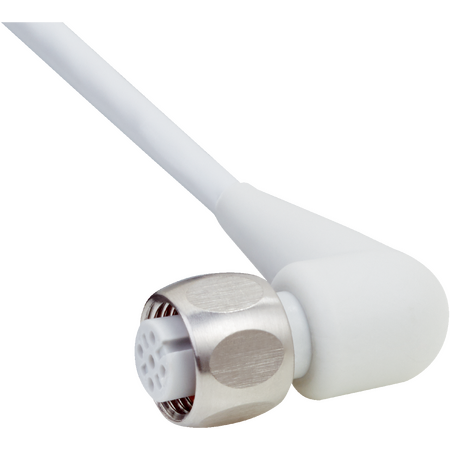

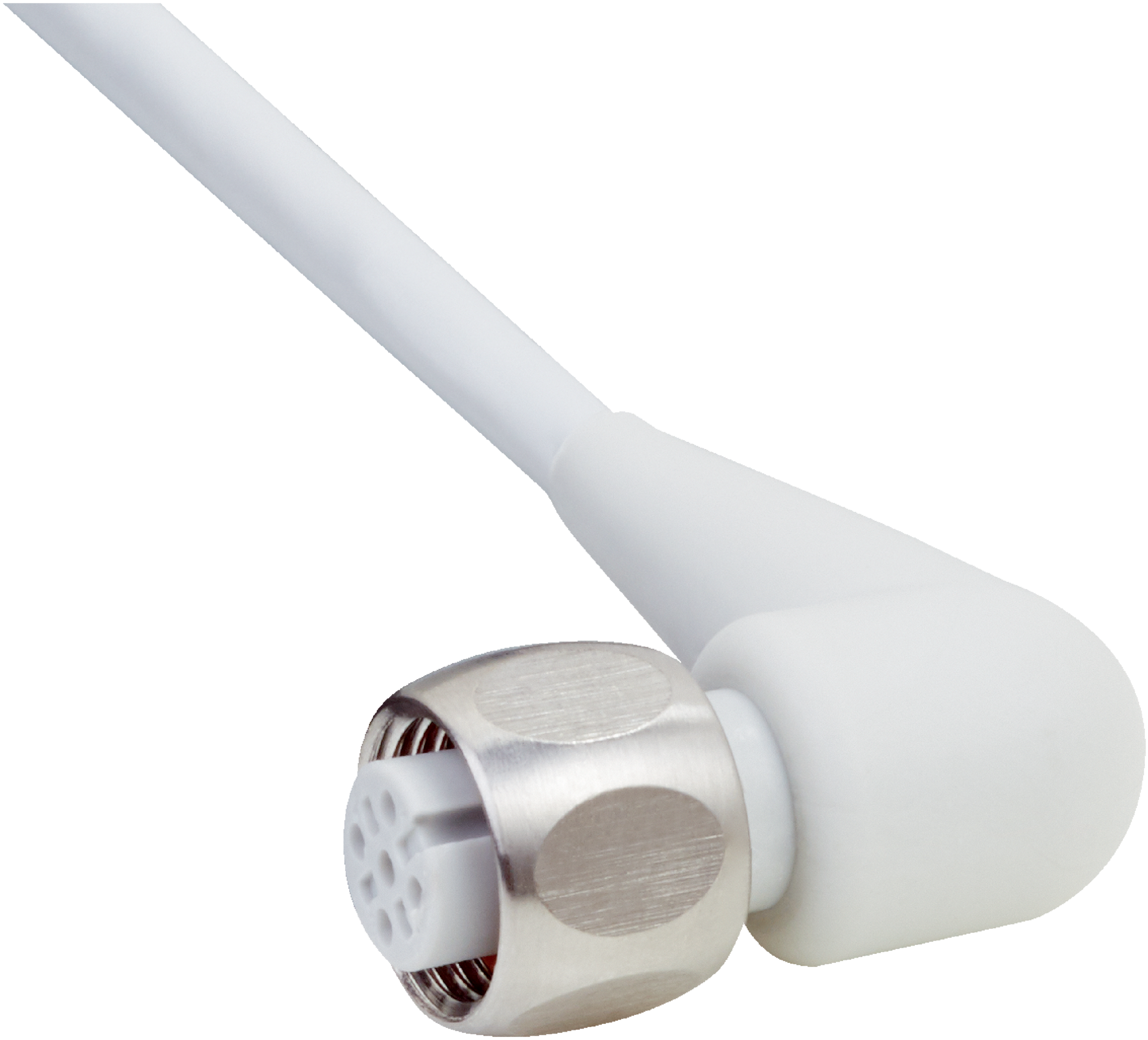

M12 Sensor Cable | IP67/IP69K Rated | 5m Length | Chemical Resistant | by SICK
The M12 Sensor Cable is designed for industrial automation and robotics, featuring a 5m length with a female connector and flying leads. With an IP67/IP69K rating, it's perfect for hygienic washdown applications, offering high resistance to chemicals like lactic acid and hydrogen peroxide. Built for durability, this cable ensures reliable performance in harsh environments, making it an ideal choice for demanding industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable, IP69K Sensor Cable, Hygienic Sensor Cable, Industrial Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, angled
- Connection type head B: Flying leads
- Connector material: PP
- Locking nut material: Stainless steel (V4A/1.4404)
- Tightening torque: 1 Nm
- Cable: 5 m, 4-wire, PP jacket
- Cable diameter: 4.6 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter
- Operating temperature: -25 °C to +105 °C (flexible use), -40 °C to +105 °C (stationary)
- Bending cycles: ≥ 4,000,000
- Reference voltage: ≤ 250 V
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Enclosure rating: IP67 / IP69K
- Chemical resistance: Resistant to lactic acid & hydrogen peroxide (H2O2)
- Dimensions (H x L x W): 10mm x 5000mm x 14mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 4-pin, angled on head A
- Flying leads on head B
- Connector material: PP with gray color
- Locking nut made of stainless steel (V4A/1.4404)
- Cable length: 5 m, 4-wire, PP jacket
- Cable diameter: 4.6 mm with conductor cross section 0.34 mm²
- Unshielded sensor/actuator cable
- High bending radius and torsion force resistance (180°/1 m)
- Operating temperature range: -25 °C to +105 °C (flexible use), -40 °C to +105 °C (stationary)
- Rated impulse voltage: 2.5 kV, current loading: 4 A
- IP67/IP69K enclosure rating for harsh environments
- Chemical resistant including resistance to lactic acid and hydrogen peroxide (H2O2)
- Certified with EU and UK declarations of conformity, China RoHS, and ECOLAB certificate
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor cabling and IP-rated connections to ensure proper sealing and electrical safety.
Applications
- Hygienic and washdown zones
- Drag chain operation
- Robotics
- Cold bending resistant applications
- Seawater resistant environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Chemical resistance reduces need for frequent replacements, minimizing waste
- Durable design supports long service life, reducing resource consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DOL-1204-W05MRN sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and hygienic washdown applications.
