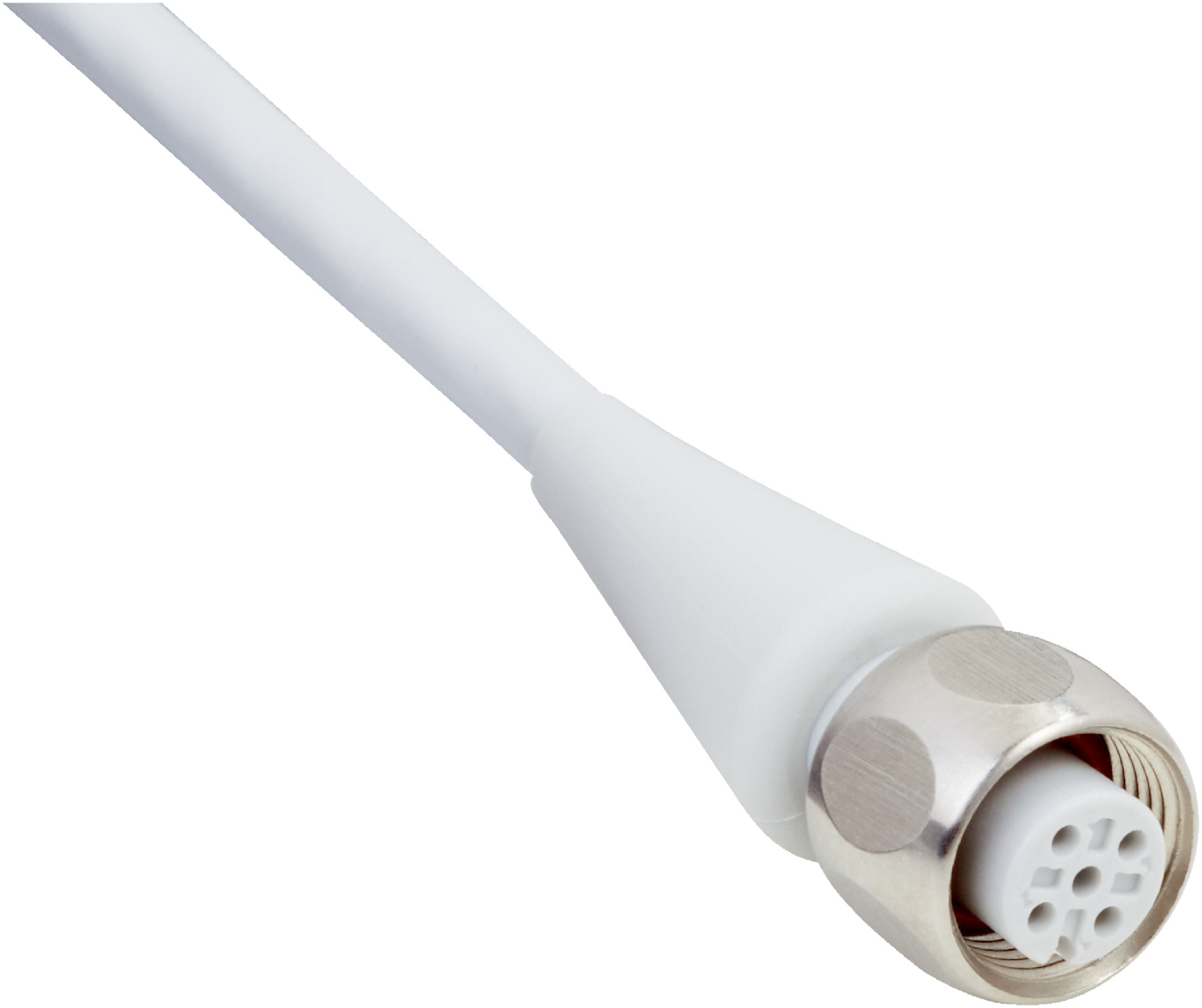

M12 Sensor Cable | IP67/IP69K Rated | 5m Length | Unshielded | by SICK
The M12 Sensor Cable is designed for reliable connections in hygienic and washdown zones, featuring a 5m length and IP67/IP69K enclosure rating for protection against dust and high-pressure water. With a robust construction and resistance to chemical cleaning agents, this cable is perfect for flexible and stationary applications, ensuring durability and long-term use in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight
- Connection type head B: Flying leads
- Connector material: PP
- Locking nut material: Stainless steel (V4A/1.4404)
- Tightening torque: 1 Nm
- Cable: 5 m, 4-wire, PP jacket
- Cable diameter: 4.6 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -25 °C to +105 °C
- Operating temperature stationary position: -40 °C to +105 °C
- Bending cycles: ≥ 4,000,000
- Reference voltage: ≤ 250 V
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Enclosure rating: IP67 / IP69K
- Dimensions (H x L x W): 10mm x 5000mm x 14mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 4-pin, straight on head A
- Flying leads on head B
- Connector material: PP with gray color
- Locking nut made of stainless steel (V4A/1.4404)
- Cable length: 5 m, 4-wire, PP jacket
- Cable diameter: 4.6 mm with conductor cross section of 0.34 mm²
- Unshielded sensor/actuator cable
- High bending radius suitable for flexible use and stationary position
- Operating temperature range: -25 °C to +105 °C (flexible use), -40 °C to +105 °C (stationary)
- Torsion force: 180° per 1 m
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- IP67/IP69K enclosure rating for protection against dust and high-pressure water jets
- Chemical resistance to cleaning agents including lactic acid and hydrogen peroxide (H2O2)
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper connection and compliance with IP67/IP69K standards.
Applications
- Hygienic and washdown zones
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Resistant to chemical cleaning agents reducing need for frequent replacements
- Durable design minimizes waste and supports long-term use in harsh environments
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

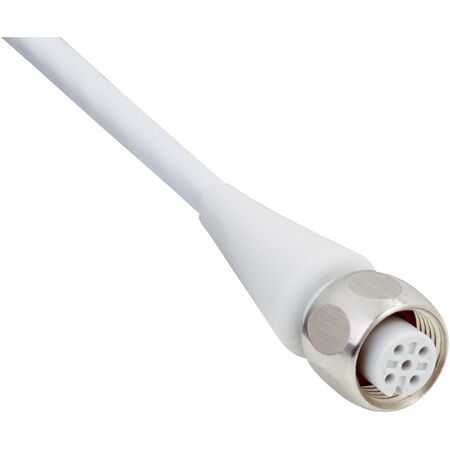

The SICK DOL-1204-G05MRN sensor/actuator cable is available for immediate purchase, ideal for use in hygienic and washdown zones requiring robust and reliable sensor connections.
