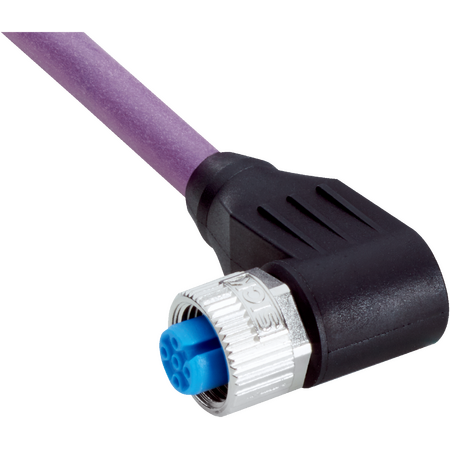

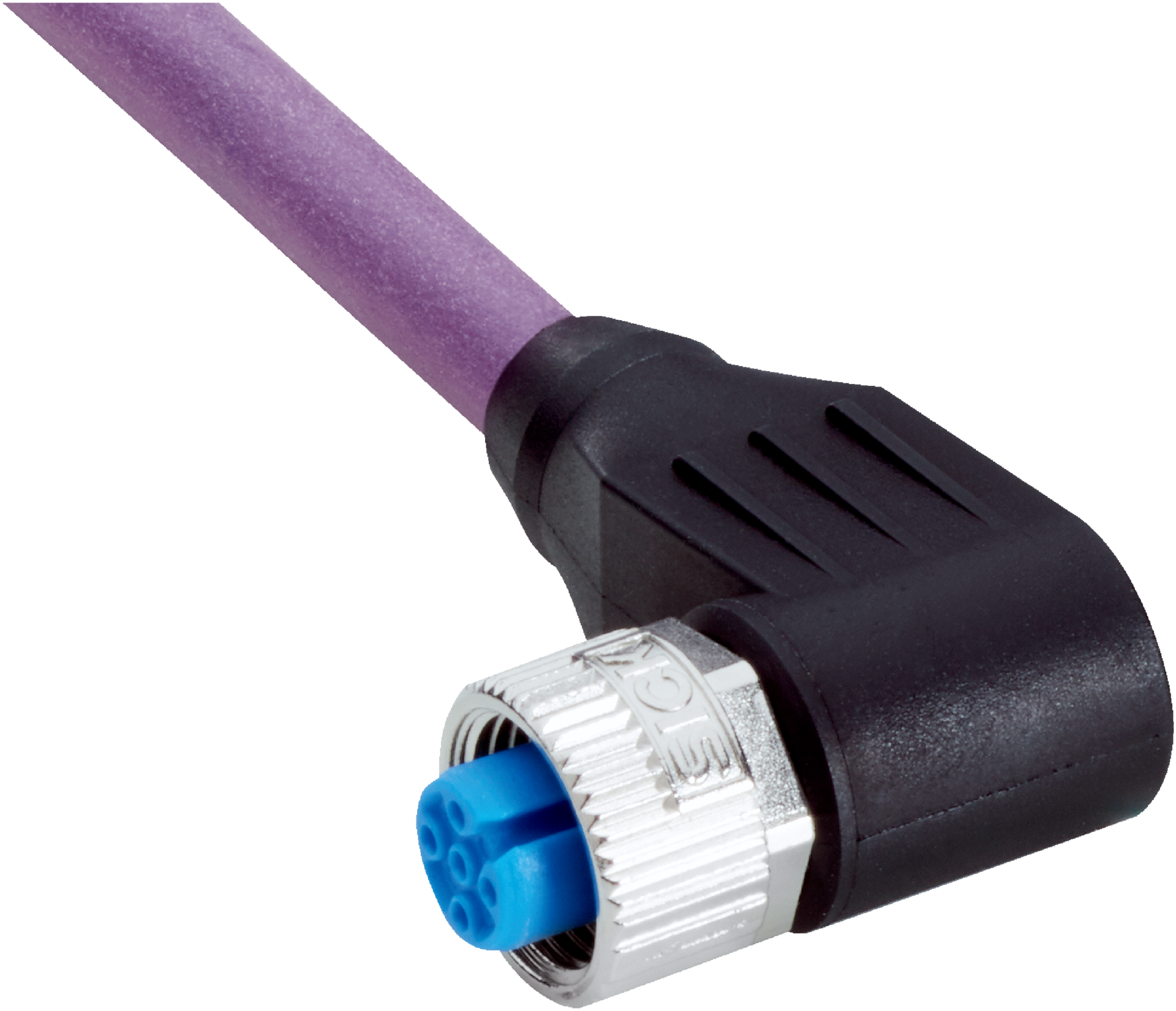

M12 Shielded Cable | 5-Pin Angled Connector | PUR Halogen-Free | IP65/IP66/IP67 Rated | by SICK
The M12 Shielded Cable features a 5-pin angled connector and a durable PUR halogen-free jacket, making it ideal for industrial automation and fieldbus communication networks like CANopen and DeviceNet™. With an IP65/IP66/IP67 rating, this cable is designed for harsh environments, ensuring reliable signal transmission and robust protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Shielded Cable, PUR Fieldbus Cable, CANopen Cable, DeviceNet Cable, Industrial Automation Cable
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, angled, A-coded
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 15 m
- Cable type: 5-wire, PUR, halogen-free
- Cable diameter: 6.9 mm
- Conductor cross section: 2 x 0.34 mm² + 2 x 0.25 mm² + 1 x 0.34 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 6 x cable diameter
- Operating temperature flexible use: -30°C to +70°C
- Operating temperature stationary position: -40°C to +80°C
- Operating temperature head: -25°C to +85°C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2000 V AC
- Reference voltage: 48 V AC / 60 V DC
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Fieldbus, CANopen, DeviceNet™
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2) / IEC 60332-1-2
- Dimensions (H x L x W): 13mm x 15000mm x 13mm
- Weight: 0.5 kg
Key Features
- Female M12, 5-pin, angled, A-coded connector
- Shielded PUR halogen-free cable with violet jacket
- Flame-resistant and self-extinguishing material
- High bending radius suitable for flexible and stationary use
- Operating temperature range from -40°C to +85°C depending on component
- IP65 / IP66K / IP67 rated enclosure for robust protection
- Supports signal transmission for Fieldbus, CANopen, and DeviceNet™
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical and communication cabling standards to ensure proper connection and compliance with safety regulations.
Applications
- Industrial automation and control systems
- Fieldbus communication networks such as CANopen and DeviceNet™
- Harsh environments requiring flame-resistant and self-extinguishing cables
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Flame-resistant and self-extinguishing properties enhance safety and reduce environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG2A15-150C1BXLEAX shielded cable is available for immediate purchase, ideal for industrial automation and fieldbus communication applications requiring robust and flame-resistant cabling.
