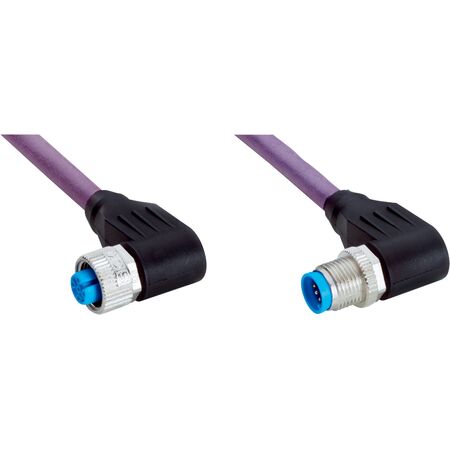

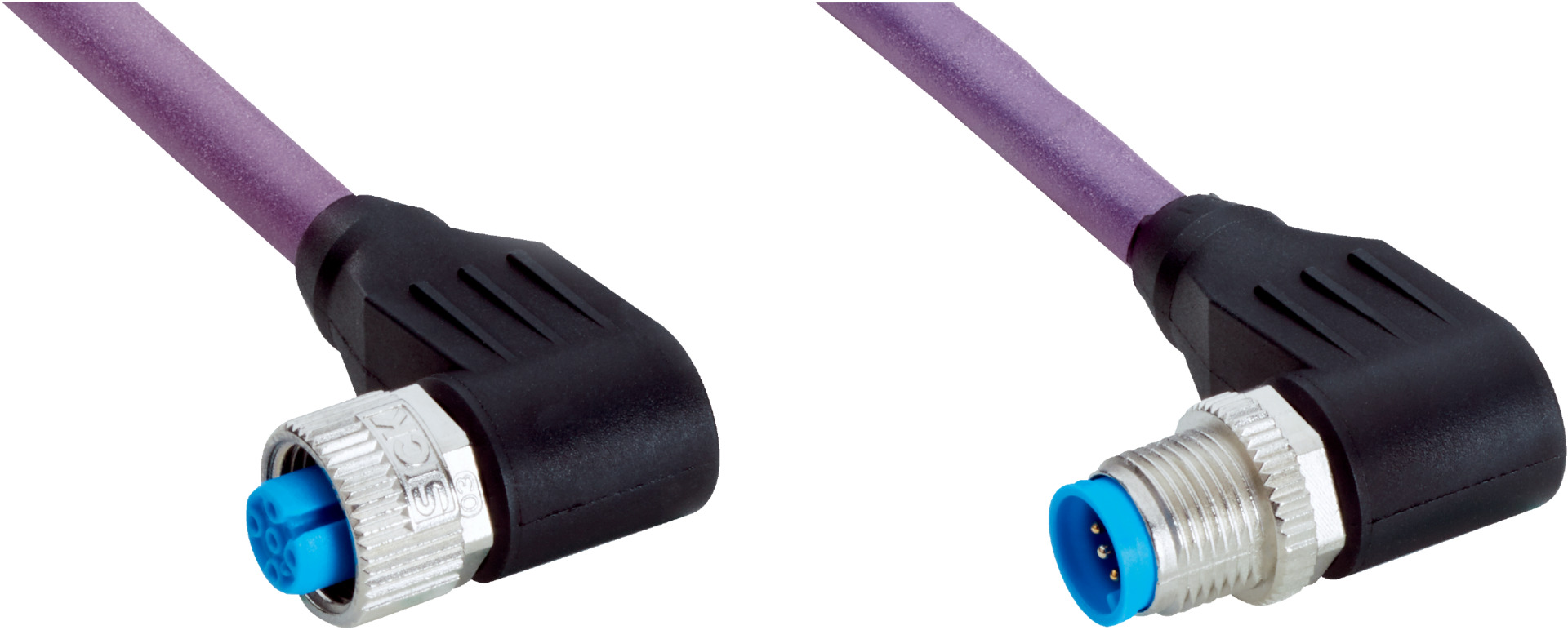

M12 Shielded Cable Assembly | 10m Length | IP65/IP66/IP67 Rated | Flame-Resistant | by SICK
The M12 Shielded Cable Assembly is designed for reliable signal transmission in industrial automation and control systems. With a 10m length, TPU connectors, and a flame-resistant PUR jacket, it’s perfect for harsh environments. Rated IP65/IP66/IP67, this cable ensures durability and compliance with fieldbus protocols like CANopen and DeviceNet™, making it an ideal choice for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, angled, A-coded
- Connection type head B: Male connector, M12, 5-pin, angled, A-coded
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 10 m
- Cable type: 5-wire, PUR, halogen-free
- Cable diameter: 6.9 mm
- Conductor cross section: 2 x 0.34 mm² + 2 x 0.25 mm² + 1 x 0.34 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 6 x cable diameter
- Operating temperature flexible use: +30 °C to +70 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Enclosure rating: IP65 / IP66 / IP67
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 Section 1060 (FT1), IEC 60332-1-2
- Signal type: Fieldbus, CANopen, DeviceNet™
- Tightening torque: 0.6 Nm
- Traversing speed: 5 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 3 m/s²
- Dimensions (H x L x W): 13mm x 10000mm x 13mm
- Weight: 0.2 kg
Key Features
- Shielded cable with TPU connectors for reliable signal transmission
- Flame-resistant and self-extinguishing PUR jacket
- High bending cycle durability up to 1,000,000 cycles
- IP65/IP66/IP67 rated for protection against dust and water
- Compatible with fieldbus protocols including CANopen and DeviceNet™
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Fieldbus communication networks such as CANopen and DeviceNet™
- Harsh environments requiring flame-resistant and durable cabling
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free PUR jacket reduces toxic emissions in case of fire
- Flame-resistant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YG2A15-100C1BN2A15 cable assembly is available for immediate purchase, ideal for industrial automation and fieldbus communication applications.
