M12 Shielded Cable Assembly | Flame-Resistant | IP65/IP66/IP67 Rated | 15m Length | by SICK
The M12 Shielded Cable Assembly is designed for reliable signal transmission in industrial automation and fieldbus communication systems. With a flame-resistant TPU jacket and IP65/IP66/IP67 rating, it ensures durability in harsh environments. Ideal for applications requiring high bending cycle durability and compliance with CANopen and DeviceNet protocols, this cable assembly is built to withstand extreme temperatures from -40°C to +85°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications

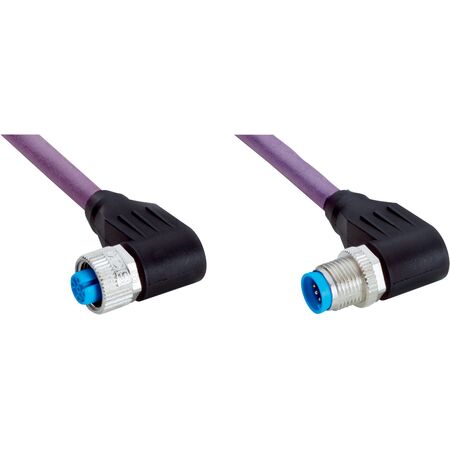

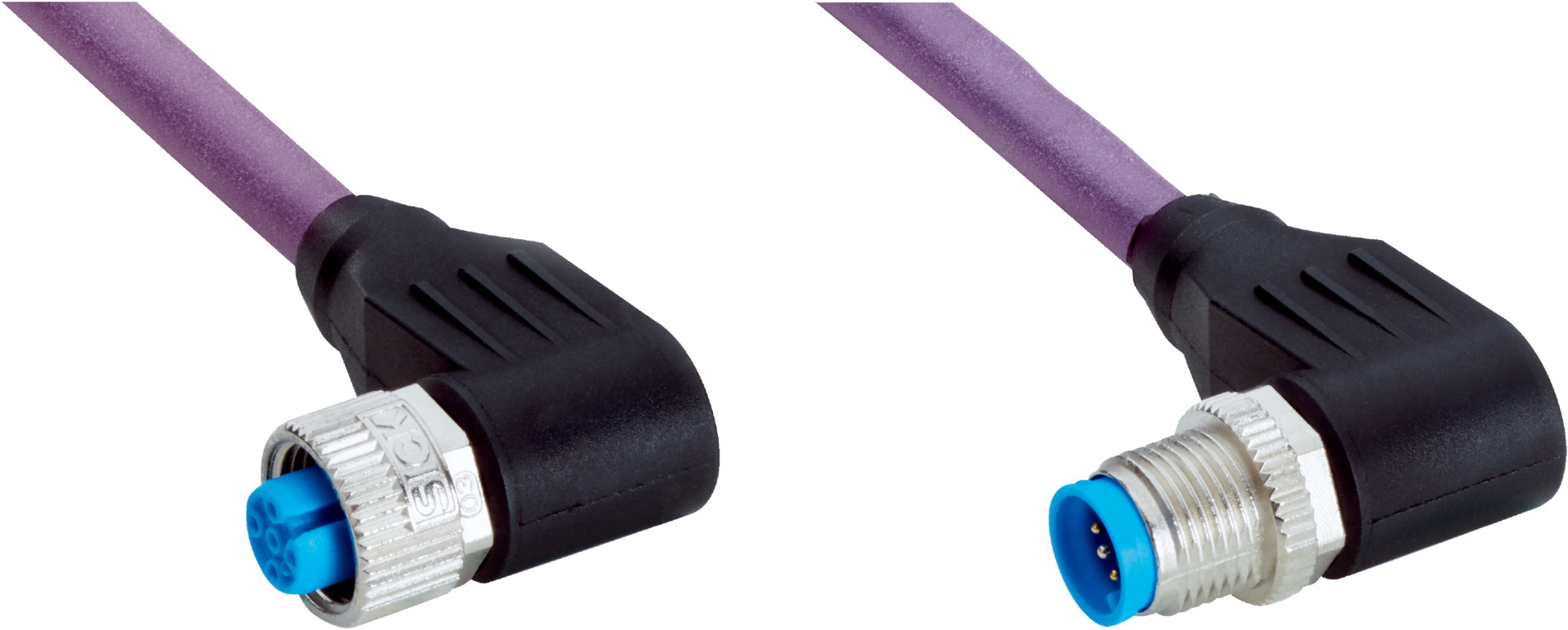

- Connection type head A: Female connector, M12, 5-pin, angled, A-coded
- Connection type head B: Male connector, M12, 5-pin, angled, A-coded
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 15 m
- Cable type: 5-wire, PUR, halogen-free
- Cable diameter: 6.9 mm
- Conductor cross section: 2 x 0.34 mm² + 2 x 0.25 mm² + 1 x 0.34 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 6 x cable diameter
- Operating temperature flexible use: +30 °C to +70 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Enclosure rating: IP65 / IP66 / IP67
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 Section 1060 (FT1), Section 1061 (cable flame), IEC 60332-1-2
- Signal type: Fieldbus, CANopen, DeviceNet™
- UL File No.: E335179
- Dimensions (H x L x W): 13mm x 15000mm x 13mm
- Weight: 0.3 kg
Key Features
- Shielded cable with TPU connectors for reliable signal transmission
- Flame-resistant and self-extinguishing jacket material
- High bending cycle durability up to 1,000,000 cycles
- Wide operating temperature range from -40°C to +85°C
- IP65 / IP66 / IP67 rated for protection against dust and water ingress
- Compatible with fieldbus protocols: CANopen, DeviceNet™
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and control systems
- Fieldbus communication networks such as CANopen and DeviceNet™
- Harsh environments requiring flame-resistant and self-extinguishing cables
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Halogen-free PUR jacket reduces toxic emissions in case of fire
- Flame-resistant and self-extinguishing materials enhance safety and reduce environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK YG2A15-150C1BN2A15 shielded M12 cable assembly is available for immediate purchase, ideal for industrial automation and fieldbus communication applications.
