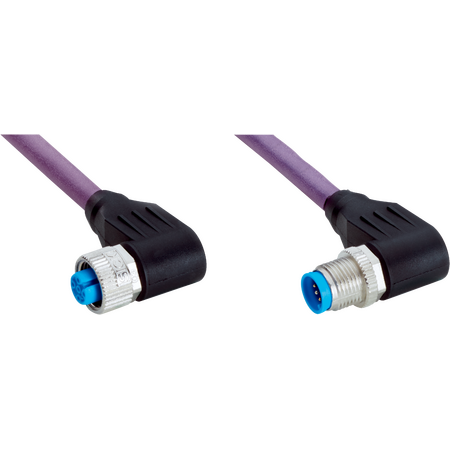

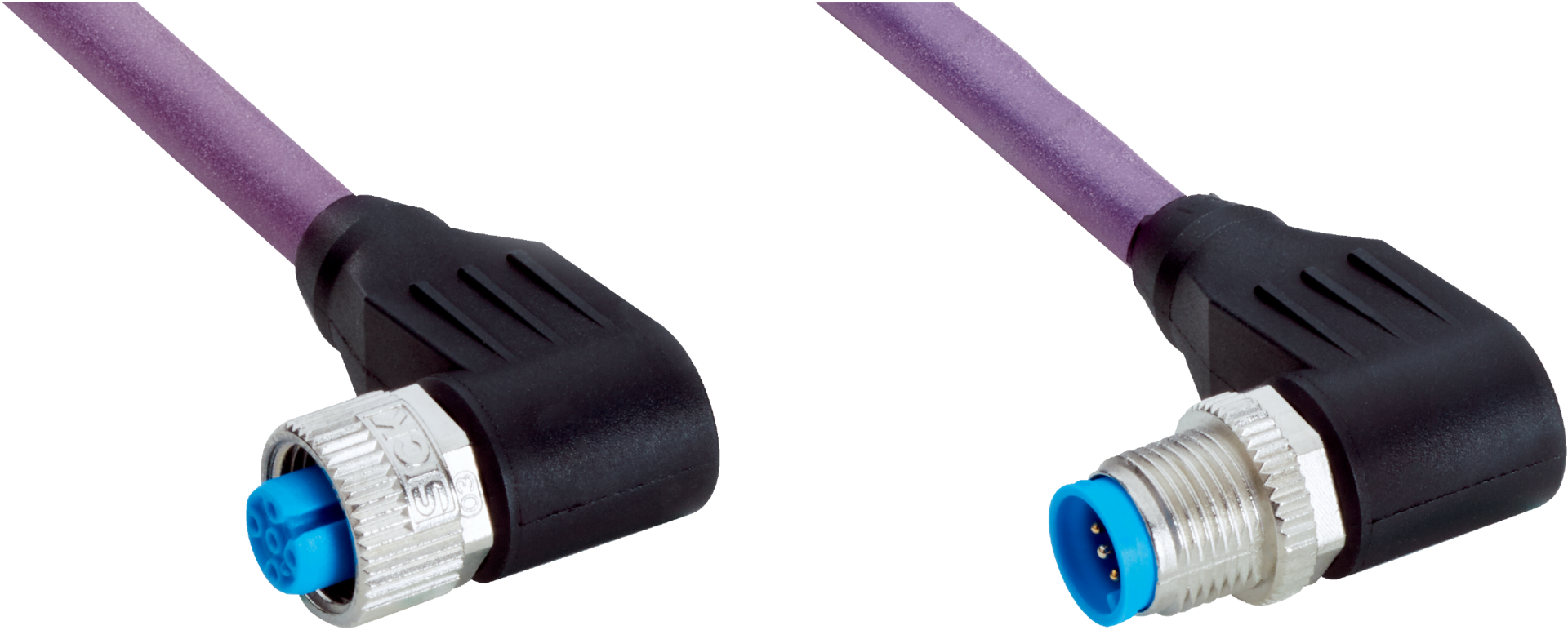

M12 Shielded Fieldbus Cable | Halogen-Free PUR Jacket | IP65/IP66/IP67 Rated | by SICK
The M12 Shielded Fieldbus Cable features a durable halogen-free PUR jacket and angled A-coded connectors, making it ideal for industrial automation and fieldbus communication networks like CANopen and DeviceNet™. With an IP65/IP66/IP67 rating, this cable is designed for harsh environments, ensuring reliable performance and safety in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Shielded Fieldbus Cable, PUR Halogen-Free M12 Cable, CANopen DeviceNet Cable, Industrial Automation Cable
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, angled, A-coded
- Connection type head B: Male connector, M12, 5-pin, angled, A-coded
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 3 m
- Cable wires: 5-wire, PUR, halogen-free
- Cable diameter: 6.9 mm
- Conductor cross section: 2 x 0.34 mm² + 2 x 0.25 mm² + 1 x 0.34 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 6 x cable diameter
- Operating temperature flexible use: +30 °C to +70 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2000 V AC
- Signal type: Fieldbus, CANopen, DeviceNet™
- Enclosure rating: IP65 / IP66 / IP67
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Thermal resistance piping: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2) / IEC 60332-1-2
- Dimensions (H x L x W): 13mm x 3000mm x 13mm
- Weight: 0.1 kg
Key Features
- Shielded PUR cable with halogen-free jacket for enhanced durability and safety
- Female and male M12, 5-pin, angled A-coded connectors
- Flame-resistant and self-extinguishing according to UL 1581 and IEC 60332-1-2
- High bending cycle resistance up to 1,000,000 cycles
- Wide operating temperature range from -40°C to +85°C depending on use
- IP65 / IP66 / IP67 enclosure rating for protection against dust and water
- Supports fieldbus signal types including CANopen and DeviceNet™
- UL and cULus certified with multiple international conformity declarations
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial fieldbus cabling and electrical safety standards to ensure proper connection and compliance.
Applications
- Industrial automation and control systems
- Fieldbus communication networks such as CANopen and DeviceNet™
- Harsh environments requiring flame-resistant and self-extinguishing cables
- Machine and factory automation requiring robust and flexible cabling
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Halogen-free PUR jacket reduces toxic emissions in case of fire
- Flame-resistant and self-extinguishing properties enhance workplace safety
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK YG2A15-030C1BN2A15 shielded M12 cable is available for immediate purchase, ideal for industrial automation and fieldbus communication applications requiring robust and flame-resistant cabling.
