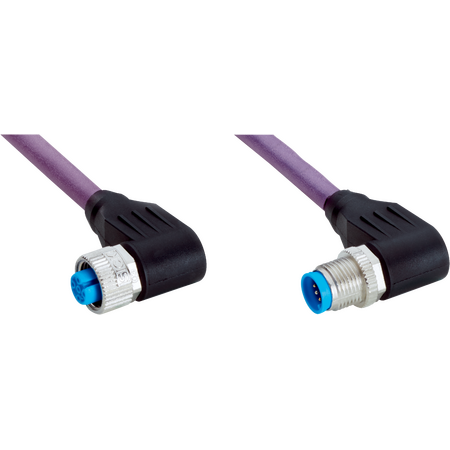

M12 Shielded Fieldbus Cable | PUR Jacketed | IP65/IP66/IP67 Rated | by SICK
The M12 Shielded Fieldbus Cable is designed for industrial automation, featuring a durable PUR jacket and IP65/IP66/IP67 rating for protection against dust and water. With M12, 5-pin connectors and a flame-resistant design, this cable is perfect for fieldbus communication networks like CANopen and DeviceNet™, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Shielded Fieldbus Cable, PUR Jacketed CANopen Cable, DeviceNet M12 Cable, Industrial Automation Cable
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, angled, A-coded
- Connection type head B: Male connector, M12, 5-pin, angled, A-coded
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 5 m
- Cable type: 5-wire, PUR, halogen-free
- Cable diameter: 6.9 mm
- Conductor cross section: 2 x 0.34 mm² + 2 x 0.25 mm² + 1 x 0.34 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 6 x cable diameter
- Operating temperature flexible use: +30 °C to +70 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2,000 V AC
- Signal type: Fieldbus, CANopen, DeviceNet™
- Enclosure rating: IP65 / IP66 / IP67
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2) / IEC 60332-1-2
- Dimensions (H x L x W): 13mm x 5000mm x 13mm
- Weight: 0.1 kg
Key Features
- Shielded PUR cable with halogen-free jacket for enhanced durability and safety
- M12, 5-pin connectors (female and male) with zinc die-cast, nickel-plated locking nuts
- Flame-resistant and self-extinguishing cable material
- High bending radius suitable for flexible and stationary use
- Operating temperature range from -40°C to +85°C depending on application
- IP65 / IP66 / IP67 enclosure rating for protection against dust and water
- Supports fieldbus signal types including CANopen and DeviceNet™
- UL File No. E335179 certified
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial fieldbus cabling and electrical safety standards.
Applications
- Industrial automation and control systems
- Fieldbus communication networks such as CANopen and DeviceNet™
- Machine and plant engineering requiring robust, shielded cables
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Flame-resistant and self-extinguishing properties enhance safety and reduce environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK YG2A15-050C1BN2A15 shielded M12 cable is available for immediate purchase, ideal for industrial automation and communication applications requiring robust and reliable cabling.
