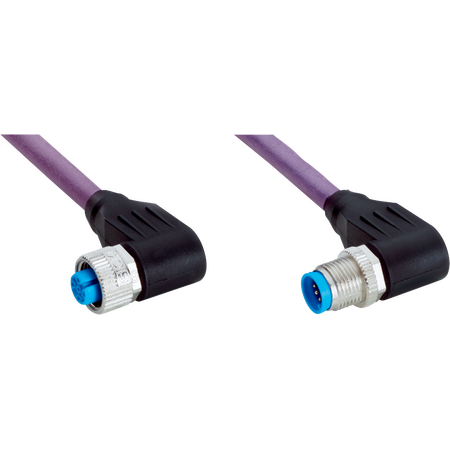

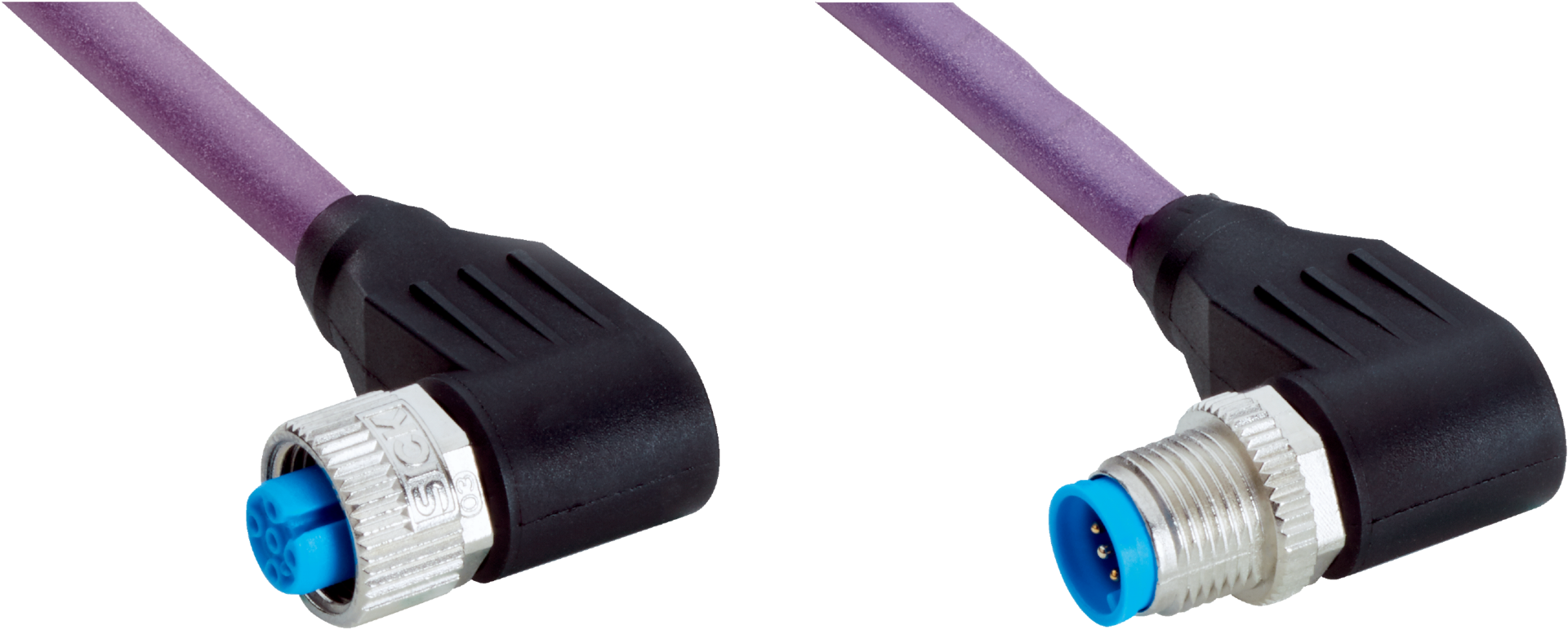

M12 Shielded PUR Cable | 5-Pin Angled Connectors | IP65/IP66/IP67 Rated | by SICK
The M12 Shielded PUR Cable is designed for robust industrial automation and fieldbus communication. Featuring 5-pin angled connectors and a halogen-free jacket, this cable ensures reliable signal transmission in harsh environments. With a high bending cycle resistance and IP65/IP66/IP67 rating, it’s perfect for applications requiring durability and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Shielded PUR Cable, SICK M12 5-pin Cable, Fieldbus Communication Cable, CANopen Cable, DeviceNet Cable
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, angled, A-coded
- Connection type head B: Male connector, M12, 5-pin, angled, A-coded
- Connector material: TPU
- Connector color: Black
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 10 m
- Cable type: 5-wire, PUR, halogen-free
- Jacket color: Violet
- Cable diameter: 6.9 mm
- Conductor cross section: 2 x 0.34 mm² + 2 x 0.25 mm² + 1 x 0.34 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 6 x cable diameter
- Operating temperature flexible use: +30 °C to +70 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Bending cycles: ≤ 1,000,000
- Reference voltage: ≤ 60 V AC/DC
- Traversing speed: 5 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 3 m/s²
- Signal type: Fieldbus, CANopen, DeviceNet™
- Enclosure rating: IP65 / IP66 / IP67
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: < 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581 Section 1060 (FT1), Section 1061 (cable flame), IEC 60332-1-2
- Dimensions (H x L x W): 13mm x 10000mm x 13mm
- Weight: 0.1 kg
Key Features
- Shielded PUR cable with halogen-free jacket for enhanced durability and safety
- M12 5-pin connectors, female angled (head A) and male angled (head B), A-coded
- Flame-resistant and self-extinguishing cable material
- High bending cycle resistance (≤ 1,000,000 cycles) suitable for flexible use
- Wide operating temperature range: -40°C to +85°C depending on component
- IP65 / IP66 / IP67 rated for protection against dust and water ingress
- Supports fieldbus signal types including CANopen and DeviceNet™
- Zinc die-cast nickel-plated locking nut for secure connections
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial cabling standards and safety protocols to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and control systems
- Fieldbus communication networks such as CANopen and DeviceNet™
- Harsh environments requiring flame-resistant and halogen-free cabling
- Machine and factory automation requiring reliable signal transmission
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free cable jacket reduces harmful emissions in case of fire
- Flame-resistant and self-extinguishing materials enhance workplace safety
- Durable construction reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK YG2A15-100C1BN2A15 PUR shielded M12 cable is available for immediate purchase, ideal for industrial automation and fieldbus communication applications requiring durable and flame-resistant cabling.
