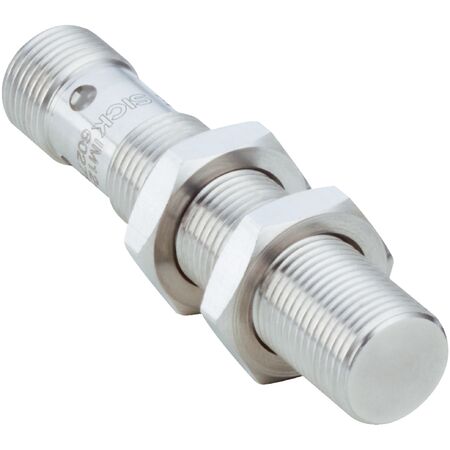

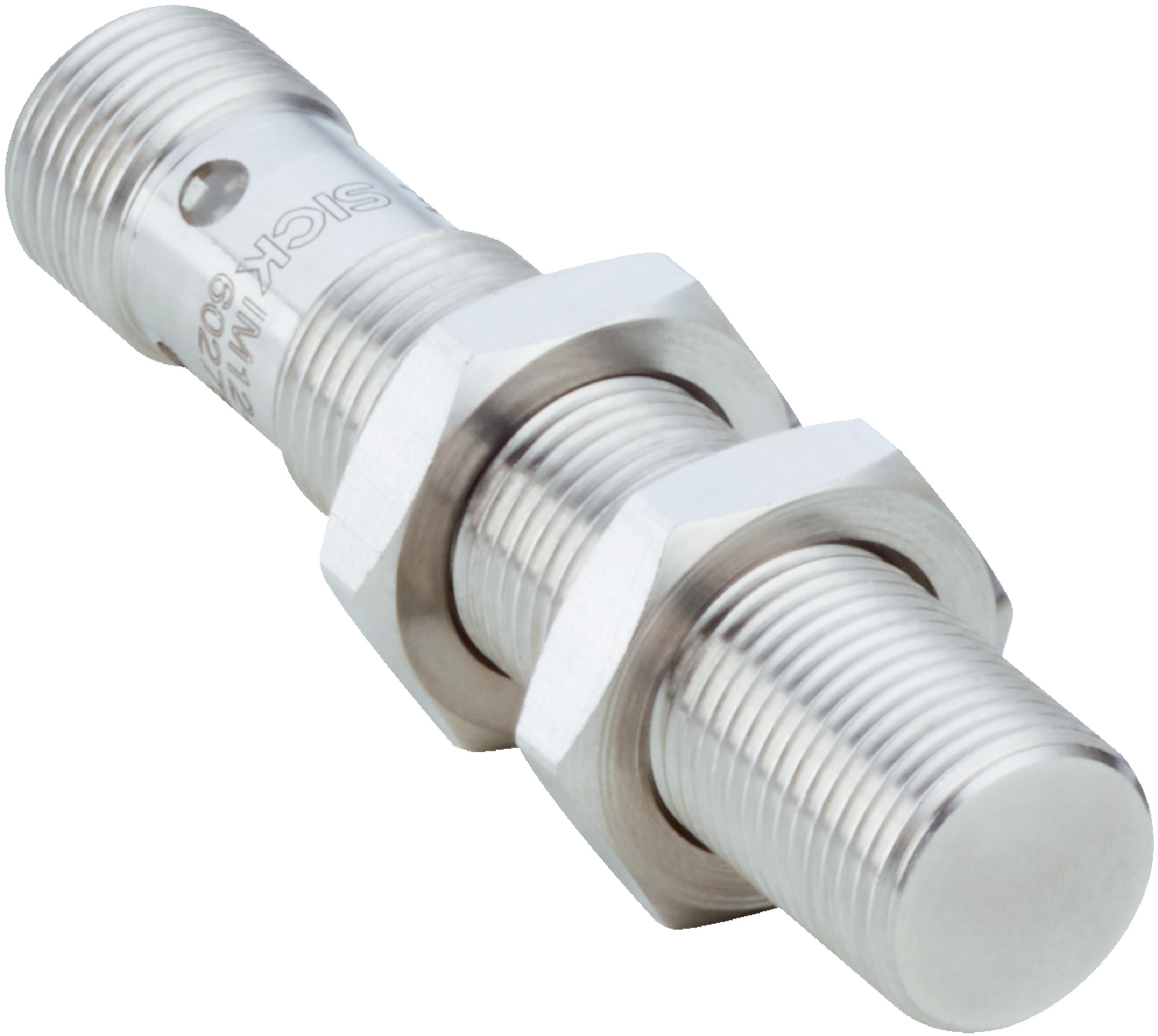

M12 Stainless Steel Proximity Sensor | 6mm Sensing Range | IP68 & IP69K Rated | NPN Output | by SICK
The M12 Stainless Steel Proximity Sensor is designed for robust industrial automation, featuring a 6mm sensing range and IP68/IP69K protection for hygienic environments. With a durable stainless steel V4A housing and a switching frequency of 600 Hz, this sensor is perfect for applications in washdown zones and challenging conditions, ensuring reliable performance and minimal contamination risks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 40 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ≤ 10%
- EMC compliant according to EN 60947-5-2
- Continuous current: ≤ 200 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25°C to +85°C
- Housing and sensing face material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Protection class: III
- Thread length: 41 mm
- Tightening torque max: ≤ 20 Nm
- Dimensions (H x L x W): 12mm x 60mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Sensing range of 6 mm with safe sensing range of 4.86 mm
- Flush installation type
- Switching frequency of 600 Hz
- NPN switching output with normally open function
- DC 3-wire electrical wiring
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V4A resistant to cleaning agents
- Visual adjustment indicator for easy setup
- Includes mounting nut and washers made of V4A stainless steel
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation and machinery requiring precise proximity sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- High resistance to cleaning agents supports hygienic environments minimizing contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IM12-06BNS-NC1 sensor is available for immediate purchase, ideal for industrial automation and hygienic applications requiring robust and reliable sensing.
