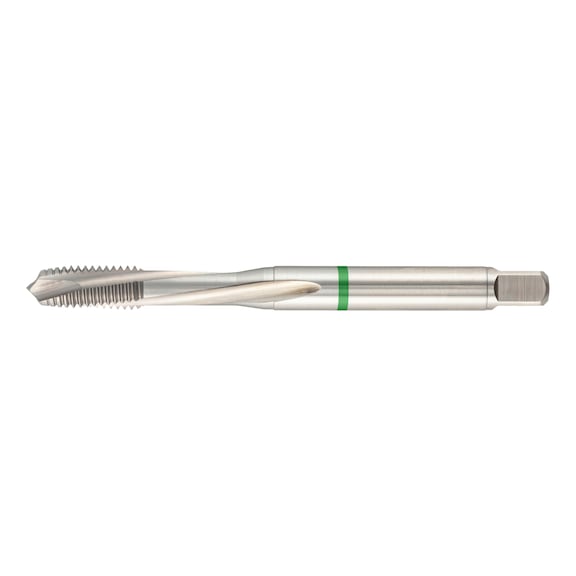

M12 Thread Cutter Drill Bit | HSCo Material | Left-Hand Spiral Design | 110mm Length | by Wurth
The M12 Thread Cutter Drill Bit is engineered for precision drilling in stainless and alloyed steels, featuring a unique left-hand spiral design for optimal chip removal. With a length of 110mm and a specially tailored cutting edge geometry, this drill bit ensures a longer service life and superior performance in milling and drilling applications. Ideal for professionals, it’s perfect for use in milling/drill centers and pedestal drilling machines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M12 Thread Cutter Drill Bit | HSCo Material | Left-Hand Spiral Design | 110mm Length | by Wurth
Brand: Wurth
SKU: 655701200
Alternatively Known As: Stainless Steel Drill Bit, Alloy Steel Drill Bit, High-Alloy Steel Drill Bit, M12 Thread Cutter, HSCo Drill Bit
Technical Specifications
- Thread type: Metric thread
- Material to be processed: Stainless steel, Steel
- Hole type: Clearance hole – 3xD
- Suitable for machine type: Milling/drill center, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Thread type x nominal diameter: M12
- Pitch: 1.75 mm
- Length: 110 mm
- Shank diameter: 9.0 mm
- Size of square: 7.0 mm
- DIN: 376
- Cutting material: HSCo
- Surface: Plain
- Form: D
- Core hole diameter: 10.2 mm
- Shank style: Cylindrical with square drive
- Tolerance of screw taps: ISO 2X (6HX)
- Suitable for tensile strength up to: 1200 N/mm²
- Service life (points system): 3 of 4 points
- Trueness to gauge (points system): 4 of 4 points
- Versatility (points system): 3 of 4 points
- Cutting behaviour (points system): 3 of 4 points
- Chip formation (points system): 3 of 4 points
- Material of sub-group: Stainless steels (sulphurated, austenitic, martensitic), General structural steels, Non-alloyed tempering steels, Alloyed tempering steels, Nitriding steels, Tool steels, High-speed steels
- Dimensions (H x L x W): 110mm x 110mm x 9mm
- Weight: 0.2 kg
Key Features
- Newly developed geometry combining a left-hand spiral and a spiral point tap
- Homogenised surface structure due to state-of-the-art finishing process
- Extra-long groove for improved chip removal
- Cutting edge geometry precisely tailored to stainless steel
- Up to 50% longer service life compared to conventional plain machine taps
- Exclusive availability from Wurth
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
Professional Installation Requirements
- Use by trained professionals or machinists recommended to ensure proper handling and optimal performance.
Applications
- Processing alloyed and high-alloyed steels including stainless, rust-resistant, and acid-resistant steels
- Suitable for conventional steel materials up to 1200 N/mm² strength
- Use in milling/drill centers and pedestal drilling machines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic
- 100% recyclable packaging reduces environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth for detailed warranty terms.
Available Now
The Wurth specialist drill bit M12 is available for immediate purchase, ideal for industrial machining and metalworking applications.
