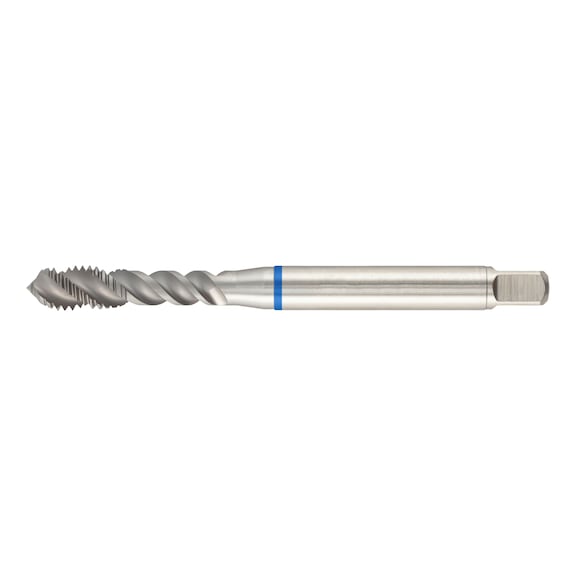

M12 Thread Cutter | High-Performance Steel Tap | Vario Geometry | 110mm Length | by Wurth
The M12 Thread Cutter is engineered for precision threading in steel materials, featuring a newly developed Vario geometry for enhanced performance and an optimized cutting edge for durability. Ideal for trained machinists, this high-performance tap ensures reliable results in milling and drilling applications, making it a must-have for professionals in the machining industry.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M12 Thread Cutter | High-Performance Steel Tap | Vario Geometry | 110mm Length | by Wurth
Brand: Wurth
SKU: 653801200
Alternatively Known As: Thread cutter M12, Machine tap M12, Steel thread cutter, High-performance thread tap
Technical Specifications
- Thread type: Metric thread
- Material to be processed: Steel
- Hole type: Blind hole up to 2.5xD
- Suitable for machine type: Milling/drill center, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Thread type x nominal diameter: M12
- Pitch: 1.75 mm
- Length: 110 mm
- Shank diameter: 9.0 mm
- Size of square: 7.0 mm
- DIN: 376
- Cutting material: HSCo
- Surface: Plain
- Form: C
- Core hole diameter: 10.2 mm
- Twist angle: 45° Vario
- Shank style: Cylindrical with square drive
- Tolerance of screw taps: ISO 2X (6HX)
- Suitable for tensile strength up to: 1200 N/mm²
- Service life (points system): 3 of 4 points
- Trueness to gauge (points system): 4 of 4 points
- Versatility (points system): 2 of 4 points
- Cutting behaviour (points system): 3 of 4 points
- Chip formation (points system): 3 of 4 points
- Material of sub-group: General structural steels, Non-alloyed tempering steels
- Dimensions (H x L x W): 110mm x 110mm x 9mm
- Weight: 0.1 kg
Key Features
- Newly developed Vario geometry for enhanced performance
- Optimised cutting edge preparation due to multi-stage finishing process
- Angled threaded part for precise threading
- Cutting edge geometry precisely tailored to steel materials
- Up to 30% longer service life compared to conventional plain machine taps
- Available exclusively from Wurth
- Product packaging made from 100% PCR (recycled plastic from household waste) and 100% recyclable
Professional Installation Requirements
- Use by trained machinists or professionals familiar with machine tapping processes is recommended to ensure safety and precision.
Applications
- Machining: Thread cutting in general structural steels and non-alloyed tempering steels
- Suitable for use with milling/drill centers and pedestal drilling machines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Product packaging made from 100% post-consumer recycled plastic and is fully recyclable, reducing environmental impact.
Warranty Information
Warranty details available upon request from Wurth; typically covers manufacturing defects.
Available Now
The Wurth 653801200 thread cutter is available for immediate purchase, ideal for machining applications involving steel materials requiring precise and durable threading.
