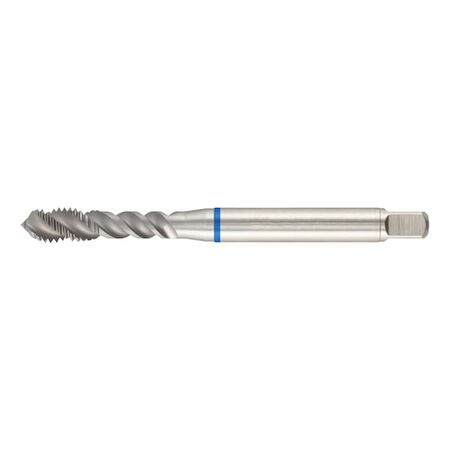

M12 Thread Cutter Steel Tap Vario Geometry Wurth
Wurth M12 Thread Cutter Steel Tap Vario Geometry features 1.75mm m12 pitch, 110mm length, and 9mm diameter.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Thread type: Metric thread
- Material to be processed: Steel
- Hole type: Blind hole up to 2.5xD
- Suitable for machine type: Milling/drill center, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Thread type x nominal diameter: M12
- Pitch: 1.75 mm
- Length: 110 mm
- Shank diameter: 9.0 mm
- Size of square: 7.0 mm
- DIN: 376
- Cutting material: HSCo
- Surface: Plain
- Form: C
- Core hole diameter: 10.2 mm
- Twist angle: 45° Vario
- Shank style: Cylindrical with square drive
- Tolerance of screw taps: ISO 2X (6HX)
- Suitable for tensile strength up to: 1200 N/mm²
- Service life (points system): 3 of 4 points
- Trueness to gauge (points system): 4 of 4 points
- Versatility (points system): 2 of 4 points
- Cutting behaviour (points system): 3 of 4 points
- Chip formation (points system): 3 of 4 points
- Material of sub-group: General structural steels, Non-alloyed tempering steels
- Dimensions (H x L x W): 110mm x 110mm x 9mm
- Weight: 0.1 kg
Key Features
- Newly developed Vario geometry for enhanced performance
- Optimised cutting edge preparation due to multi-stage finishing process
- Angled threaded part for precise threading
- Cutting edge geometry precisely tailored to steel materials
- Up to 30% longer service life compared to conventional plain machine taps
- Available exclusively from Wurth
- Product packaging made from 100% PCR (recycled plastic from household waste) and 100% recyclable
Professional Installation Requirements
- Use by trained machinists or professionals familiar with machine tapping processes is recommended to ensure safety and precision.
Applications
- Machining: Thread cutting in general structural steels and non-alloyed tempering steels
- Suitable for use with milling/drill centers and pedestal drilling machines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Product packaging made from 100% post-consumer recycled plastic and is fully recyclable, reducing environmental impact.
Warranty Information
Warranty details available upon request from Wurth; typically covers manufacturing defects.
Available Now
The Wurth 653801200 thread cutter is available for immediate purchase, ideal for machining applications involving steel materials requiring precise and durable threading.
