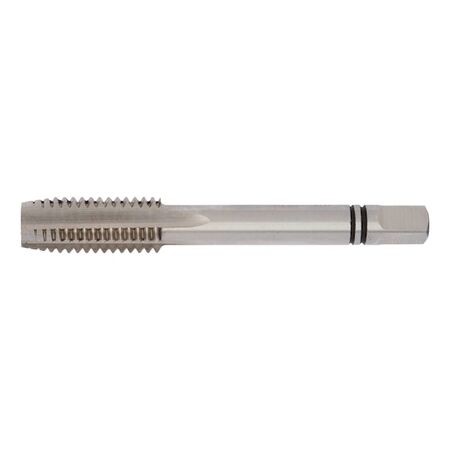

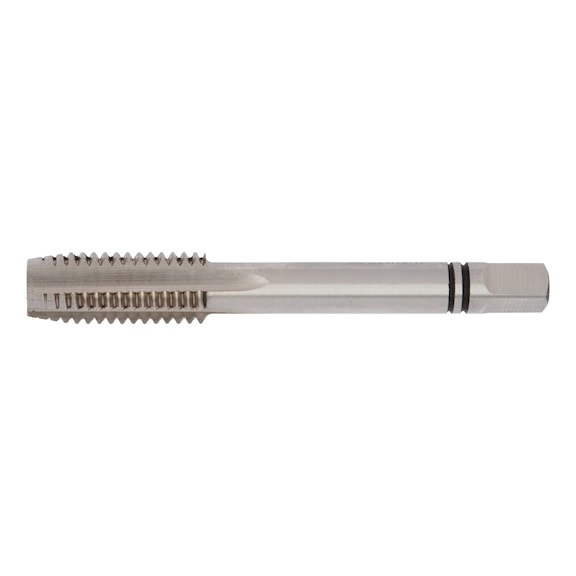

M12 Thread Tap | HSS Material | Trim Cut Form D | DIN 352 Compliant | by Wurth
The M12 Thread Tap is designed for precise thread cutting in steel, non-ferrous metals, and cast iron. Made from durable HSS material, it features a trim cut form D for optimal performance and complies with DIN 352 standards. Ideal for producing metric ISO standard threads in both through and blind holes, this tap is perfect for professional machinists seeking reliability and accuracy in their work.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M12 Thread Tap | HSS Material | Trim Cut Form D | DIN 352 Compliant | by Wurth
Brand: Wurth
SKU: 640212
Alternatively Known As: M12 Thread Tap, Metric Thread Cutter, HSS Tap, Second Tap M12
Technical Specifications
- Type description: Second tap
- Standards: DIN 352
- Thread type x nominal diameter: M12
- Pitch: 1.75 mm
- Length: 75 mm
- Thread length (metric thread): 28 mm
- Shank diameter: 9 mm
- Size of square: 7 mm
- Core hole diameter: 10.2 mm
- Material: HSS
- Thread type: Metric thread
- Dimensions (H x L x W): 75mm x 75mm x 9mm
- Weight: 0.1 kg
Key Features
- Trim cut form D for precise thread cutting
- Complies with DIN 13 for metric ISO standard threads
- Suitable for use in steel, non-ferrous metals, and cast iron
- High-speed steel (HSS) material for durability
Professional Installation Requirements
- Use by trained machinists or professionals experienced in thread cutting is recommended for best results and safety.
Applications
- Producing metric ISO standard threads by hand in through holes and blind holes
- Suitable for steel, non-ferrous metals, and cast iron materials up to 800 N/mm² strength
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable HSS material reduces frequency of replacement and waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth M12 HSS Second Tap Thread Cutter is available now for immediate purchase. Ideal for machining applications requiring precise metric thread cutting.
