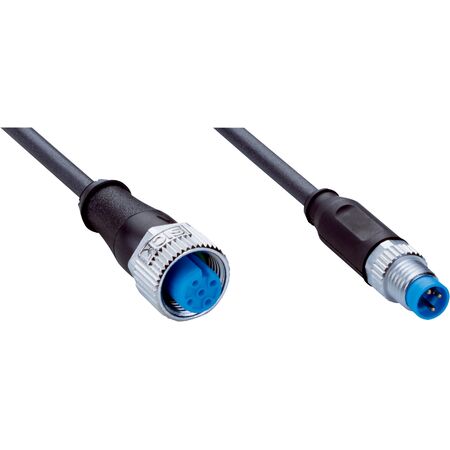

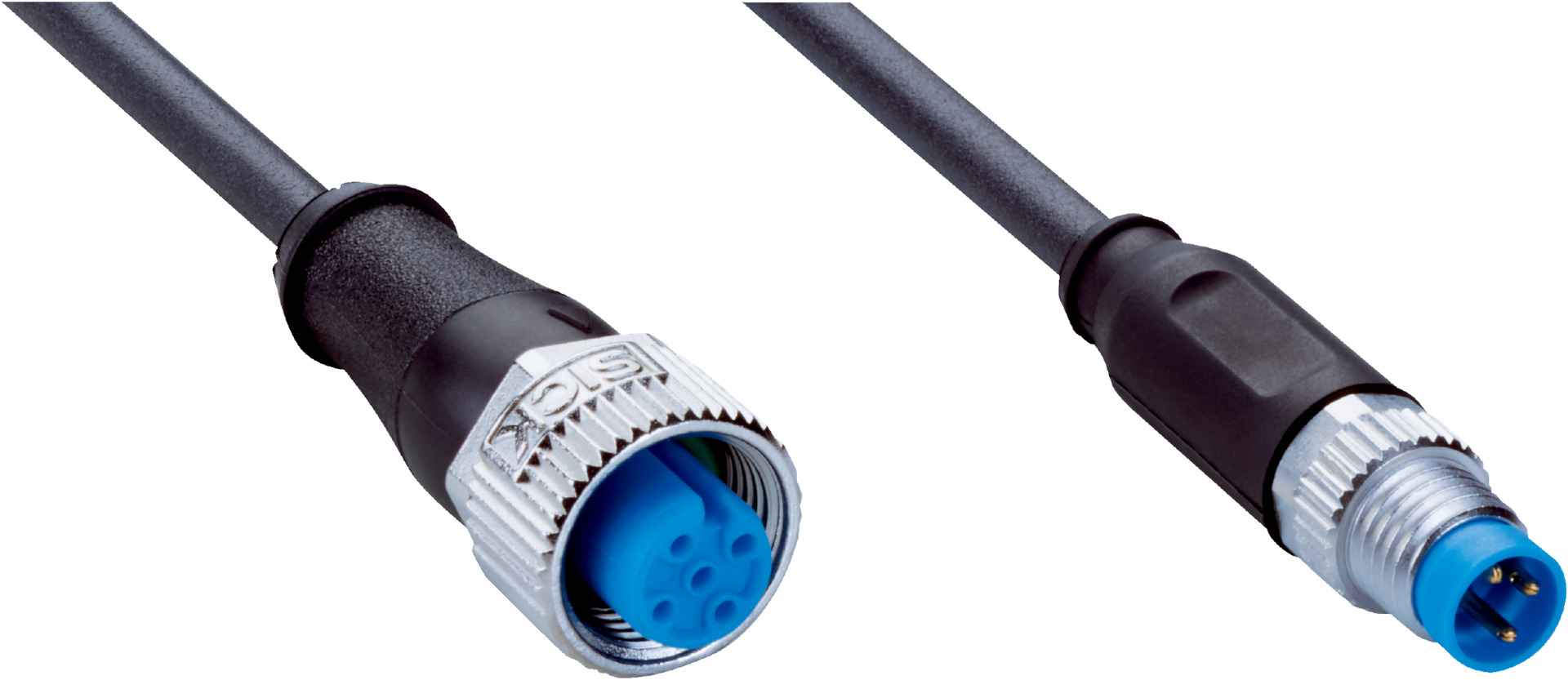

M12 to M8 Sensor Actuator Cable | IP65/IP66K/IP67 Rated | Halogen-Free PUR | by SICK
The M12 to M8 sensor actuator cable is designed for robust industrial applications, featuring a female M12 connector and a male M8 connector, both A-coded. With a flexible 0.6 m PUR halogen-free cable, it operates effectively in temperatures from -40 °C to +85 °C, making it ideal for drag chain operations and environments with oils and lubricants. Its IP65/IP66K/IP67 rating ensures protection against dust and water, providing reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 3-pin, straight, A-coded
- Connection type head B: Male connector, M8, 3-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated (female), Nickel-plated brass (male)
- Seal material: FKM
- Tightening torque: 0.4 Nm (M8), 0.6 Nm (M12)
- Cable: 0.6 m, 3-wire, PUR, halogen-free
- Cable diameter: 4.1 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Drag chain -25 °C to +80 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 4 A
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Special feature: Pin 2 and pin 4 swapped over
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 600mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector M12, 3-pin, straight, A-coded
- Male connector M8, 3-pin, straight, A-coded
- Screw connection locking plug
- Cable length 0.6 m, 3-wire, PUR, halogen-free
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- Enclosure rating IP65 / IP66K / IP67 for protection against dust and water
- UL certified with flame retardant cable material
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor and actuator cabling to ensure proper connection and compliance with safety standards.
Applications
- Suitable for zones with oils and lubricants
- Ideal for drag chain operation in industrial automation
- Sensor and actuator cable applications requiring robust connection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK YF2A13-C60S02M8U13 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and control applications requiring robust and flexible cabling solutions.
