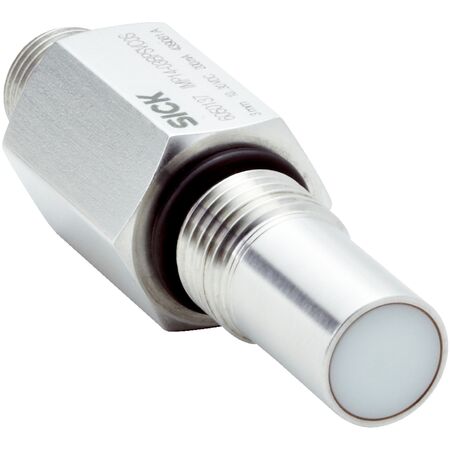

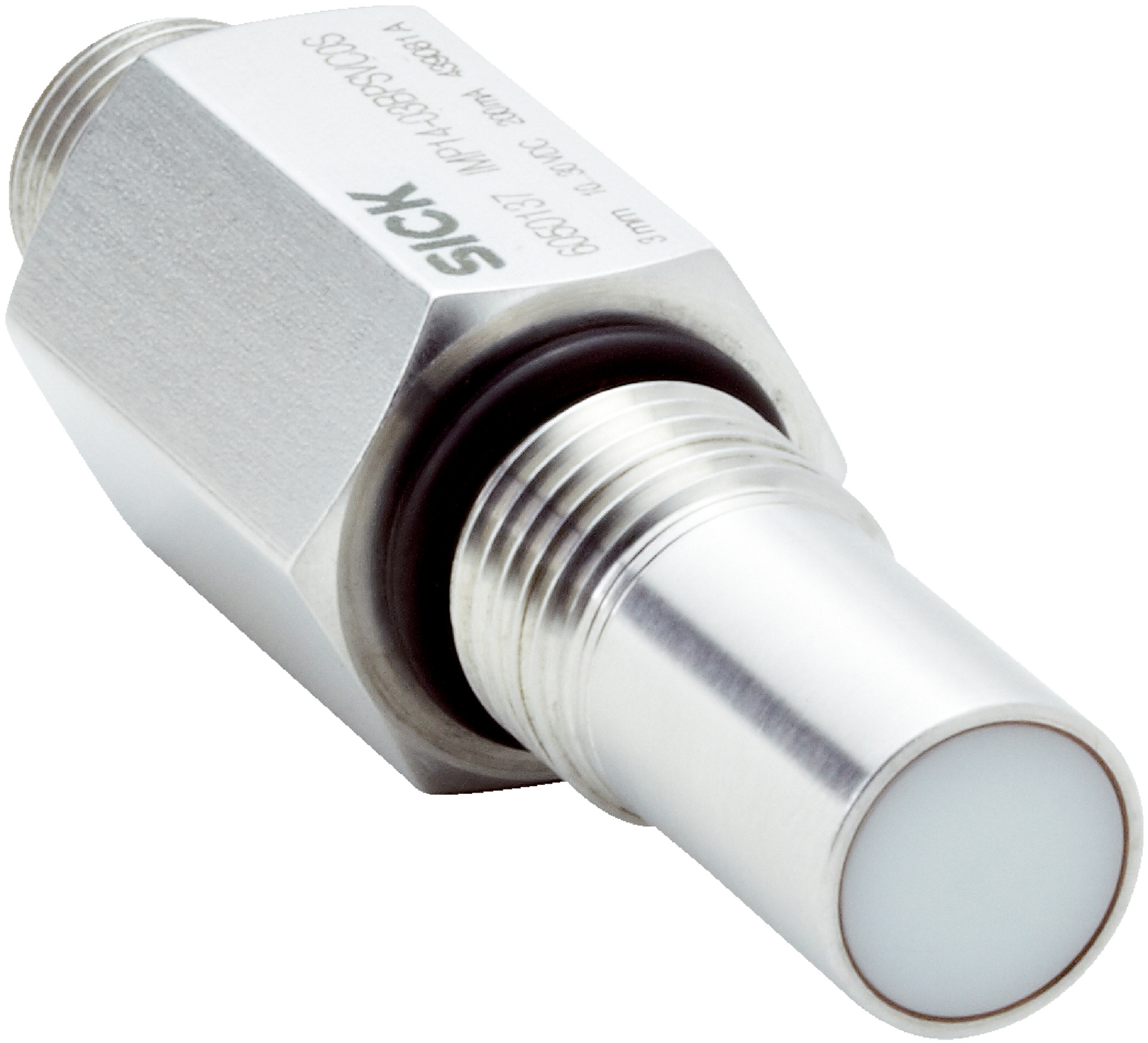

M14 Inductive Proximity Sensor | High Pressure Resistance | IP68 Rated | Flush Installation | by SICK
The M14 Inductive Proximity Sensor is designed for hydraulic applications, featuring high pressure resistance up to 500 bar and an IP68 rated enclosure for dust and water protection. With a sensing range of 3 mm and a robust stainless steel housing, this sensor is perfect for industrial automation and machinery sensing in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 4%
- Temperature drift of sensing range: 15%
- Continuous current Ia: ≤ 200 mA
- Vacuum resistance: 10^-8 Torr
- Large sealing ring size: 11.5 mm x 2.0 mm
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Tightening torque max: ≤ 70 Nm
- Dimensions (H x L x W): 65mm x 65mm x 14mm
- Weight: 0.1 kg
Key Features
- Metric housing with M14 x 1.5 thread size
- Pressure resistance up to 500 bar
- Sensing range of 3 mm with safe sensing range of 2.4 mm
- Flush installation type
- Switching frequency of 500 Hz
- NPN normally open switching output
- Connection via male M12 4-pin connector
- IP68 rated enclosure for dust and water protection
- High pressure resistant design suitable for hydraulic applications
- Short-circuit protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -25 °C to +80 °C
- Housing made of stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face made of ceramic ZrO2
- Sealing ring made of NBR
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct mounting torque and electrical connections for optimal sensor performance and safety.
Applications
- Hydraulic applications requiring high pressure resistance
- Industrial automation and machinery sensing
- Flush installation environments with high vibration and shock
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product lifespan reducing waste
- High resistance to harsh environments minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IMP14-03BNSVC0S inductive sensor is available for immediate purchase, ideal for hydraulic and industrial automation applications requiring high pressure resistance.
