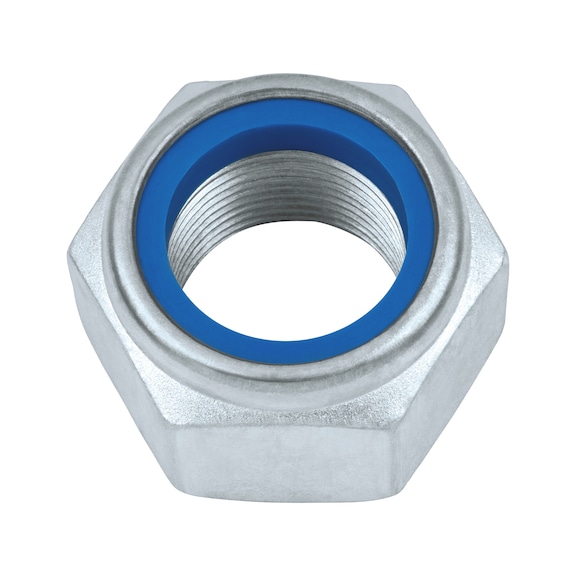

M14 Lock Nut | Zinc Plated Steel | Polyamide Ring Design | DIN 985 Compliant | by Wurth
The M14 Lock Nut is designed for secure fastening in mechanical assemblies, featuring a zinc plated steel construction for corrosion resistance and a polyamide ring for locking against loosening. Ideal for automotive, machinery, and industrial applications, this nut ensures reliable performance and compliance with DIN 985 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M14 Lock Nut | Zinc Plated Steel | Polyamide Ring Design | DIN 985 Compliant | by Wurth
Brand: Wurth
SKU: 36814
Alternatively Known As: M14 Lock Nut, Zinc Plated Lock Nut, Polyamide Ring Nut, DIN 985 Nut
Technical Specifications
- Thread type x nominal diameter (D): M14
- Height (m1): 14 mm
- External drive (s1): WS22
- Standards: DIN 985
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated
- RoHS-compliant: Yes
- Form: Low
- Locking device operating principle: Clamping part polyamide ring
- Locking function: Locking against loosening by clamping
- Dimensions (H x L x W): 14mm x 22mm x 22mm
- Weight: 0.1 kg
Key Features
- Locking against loosening by clamping with polyamide ring
- Zinc plated steel for corrosion resistance
- Low form design for compact fastening
- RoHS-compliant material
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assemblies requiring secure fastening
- Automotive and machinery applications
- Industrial equipment and construction
Standards & Compliance
- Complies with AS/NZS 1252 for mechanical fasteners
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth M14 Zinc Plated Steel Lock Nut with Polyamide Ring is available for immediate purchase, ideal for mechanical and industrial fastening applications.
