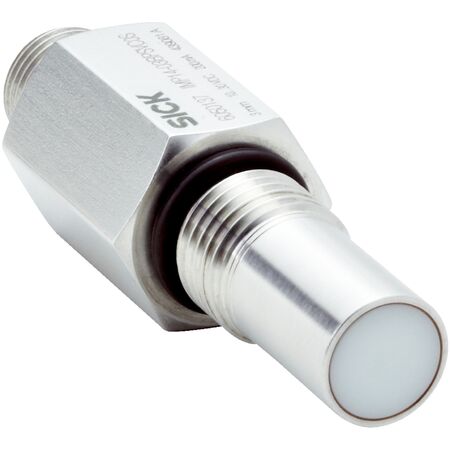

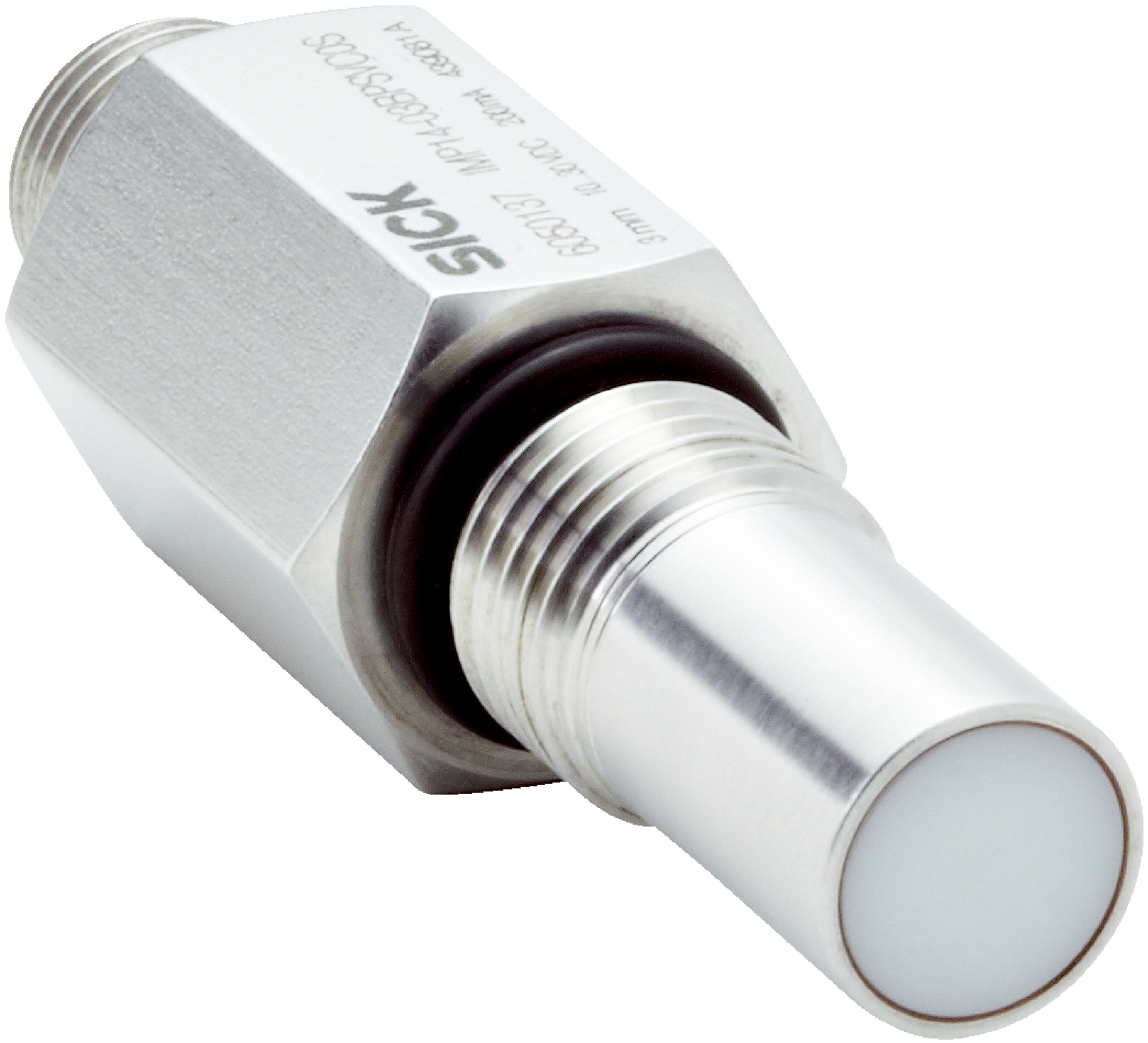

M14 Proximity Sensor | High Pressure Resistance 500 Bar | IP68 Rated | Flush Mount | by SICK
The M14 Proximity Sensor is designed for hydraulic applications, offering high pressure resistance up to 500 bar and a sensing range of 3 mm. With a durable stainless steel housing and IP68 rating, it’s perfect for industrial automation and environments requiring reliable flush installation. This sensor ensures optimal performance with features like short-circuit protection and a switching frequency of 500 Hz.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric, M14 x 1.5 thread size
- Diameter: 14 mm
- Pressure resistance: ≤ 500 bar
- Sensing range Sn: 3 mm
- Safe sensing range Sa: 2.4 mm
- Installation type: Flush
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68
- Supply voltage: 10 V DC to 30 V DC
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 4%
- Temperature drift: 15%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Vacuum resistance: 10^-8 Torr
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Ceramics, ZrO2
- Sealing ring material: NBR
- Housing length: 65 mm
- Thread length: 11 mm
- Tightening torque max: ≤ 70 Nm
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +80 °C
- Short-circuit protection: Yes
- Dimensions (H x L x W): 65mm x 65mm x 14mm
- Weight: 0.1 kg
Key Features
- High pressure resistance up to 500 bar
- Flush installation type with metric housing
- Sensing range of 3 mm with safe sensing range of 2.4 mm
- Switching frequency of 500 Hz with PNP normally open output
- IP68 rated enclosure for dust and water protection
- Stainless steel V4A housing and ceramic sensing face for durability
- Short-circuit protection and shock/vibration resistance
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting torque and electrical connections for optimal sensor performance and safety.
Applications
- Hydraulic applications requiring high pressure resistance
- Industrial automation and machinery sensing
- Environments requiring flush installation proximity sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel and ceramic materials extend product life reducing waste
- High reliability reduces need for frequent replacements
- IP68 rating ensures protection against environmental contaminants
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK IMP14-03BPSVC0S proximity sensor is available for immediate purchase, ideal for hydraulic and industrial automation applications requiring high pressure resistance.
