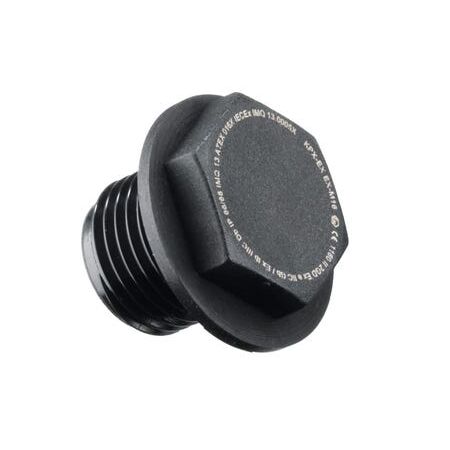

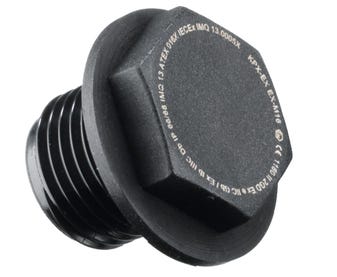

M16 EEXE Stopping Plug | IP66 to IP68 | Durable Nylon | -40ºC to +80ºC by Cabac

BRAND: CABAC
SKU: EX-M16
$4.00 List price: $4.80
+ −
30 Days Return Delivery Options
The Cabac M16 EEXE Nylon Stopping Plug provides a reliable sealing solution for hazardous and explosive environments, rated IP66-IP68 and compliant with EN/IEC standards for safety and durability.

Product Name/Title: M16 EEXE STOPPING PLUG WITH SEALING

Brand: Cabac

SKU: EX-M16

Alternatively Known As: Nylon Stopping Plug, Ex e Stopping Plug, Cable Stopping Plug, Explosion Proof Stopping Plug

Technical Specifications
  • Material: Nylon
  • Operating Temperature Range: -40ºC to +80ºC
  • Ingress Protection: IP66 to IP68 (5 Bar, 30 minutes)
  • Thread Type: Metric (M12, M16, M20, M25, M32, M40, M50, M63)
  • Certification: EN/IEC 60079-0, 60079-7, 60079-31
  • Certification: EC TYPE Examination IMQ 13ATEX016X, IECEx IMQ 13.0005X
  • Marking: Ex e IIC Gb, Ex tb IIIC Db
  • Dimensions (H x L x W): 20mm x 30mm x 20mm
  • Weight: 0.05 kg
Key Features
  • Made from durable nylon material
  • Operating temperature range from -40ºC to +80ºC
  • Ingress protection rated IP66 to IP68 (5 Bar, 30 minutes)
  • Metric thread sizes available from M12 to M63
  • Supplied with a flat washer to ensure IP protection
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with hazardous area equipment and compliance requirements.
Applications
  • Use in hazardous and explosive environments including Zones 1, 2, 21, and 22
  • Suitable for Ex e applications requiring reliable sealing
  • Cable and wire management in industrial and explosive atmospheres
Standards & Compliance
  • Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
  • Durable nylon construction reduces need for frequent replacements
  • High ingress protection minimizes environmental contamination risks
Warranty Information

Standard manufacturer warranty applies; please refer to Cabac warranty terms for details.

Available Now

The Cabac M16 EEXE Nylon Stopping Plug with Sealing is available for immediate purchase, ideal for use in hazardous and explosive industrial environments.
