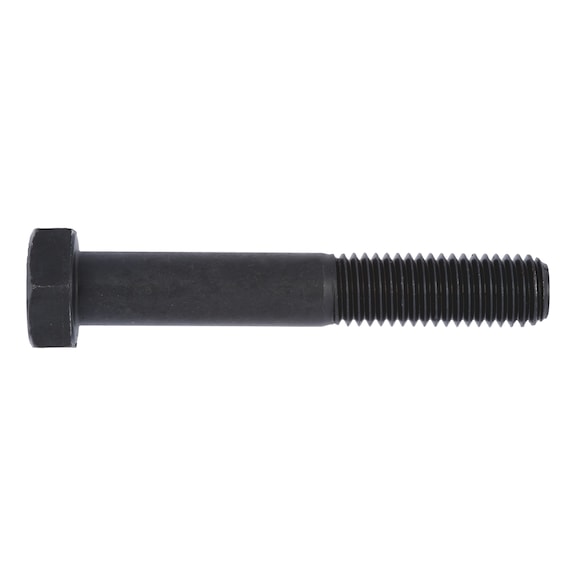

M16 Hexagon Head Bolt | High Strength 12.9 Steel | RoHS Compliant | by Wurth
The M16 Hexagon Head Bolt is crafted from high strength property class 12.9 steel, ensuring secure fastening for mechanical assemblies and construction applications. With a hexagon head and outer hexagon drive, it allows for easy tightening. This bolt is RoHS-compliant, making it an environmentally safe choice for automotive and machinery assembly.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M16 Hexagon Head Bolt | High Strength 12.9 Steel | RoHS Compliant | by Wurth
Brand: Wurth
SKU: 5416120
Alternatively Known As: Hex bolt M16, Metric hex bolt, High tensile bolt M16, Steel hex head bolt
Technical Specifications
- Thread type x nominal diameter (d1): M16
- Length (l1): 120 mm
- Head height (k1): 10 mm
- External drive (s1): WS24
- Standards: ISO 4014
- Material: Steel
- Property class: 12.9
- Surface: Plain
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length (metric thread) (b): 38 mm
- Design: With shaft
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 10mm x 120mm x 24mm
- Weight: 0.15 kg
Key Features
- High strength property class 12.9 steel
- Hexagon head with outer hexagon drive for easy tightening
- Partial metric thread design for secure fastening
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation should be performed by qualified personnel using appropriate tools to ensure correct torque and fastening integrity.
Applications
- Mechanical assemblies requiring high strength fastening
- Construction and structural applications
- Automotive and machinery assembly
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances impact
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
The Wurth M16 x 120mm Hexagon Head Bolt is available for immediate purchase, ideal for construction, mechanical, and automotive fastening applications.
