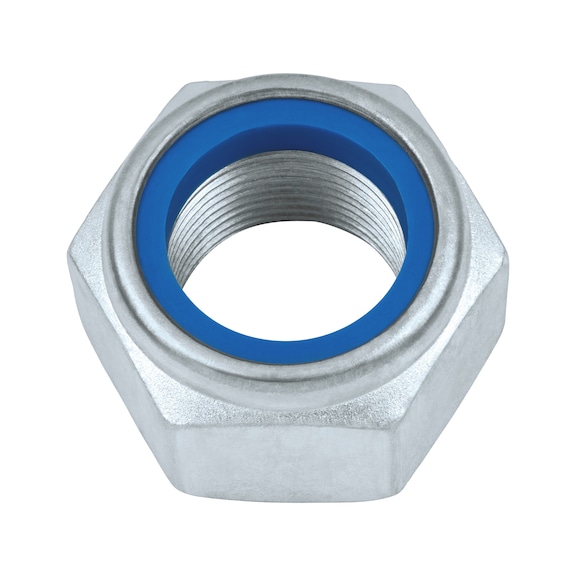

M16 Lock Nut | Zinc Plated Steel | Polyamide Insert | DIN 985 Compliant | by Wurth
The M16 Lock Nut is designed for secure fastening in mechanical assemblies, featuring a zinc plated steel construction for corrosion resistance and a polyamide insert that prevents loosening. Ideal for industrial machinery and automotive applications, this low form nut complies with DIN 985 standards, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M16 Lock Nut | Zinc Plated Steel | Polyamide Insert | DIN 985 Compliant | by Wurth
Brand: Wurth
SKU: 36816
Alternatively Known As: M16 Lock Nut, Nylon Insert Nut, Polyamide Lock Nut, DIN 985 Nut
Technical Specifications
- Thread type x nominal diameter (D): M16
- Height (m1): 16 mm
- External drive (s1): WS24
- Standards: DIN 985
- Material: Steel
- Property class: I8I
- Surface: Zinc plated
- RoHS-compliant: Yes
- Form: Low
- Locking device operating principle: Clamping part polyamide ring
- Locking function: Locking against loosening by clamping
- Dimensions (H x L x W): 16mm x 24mm x 24mm
- Weight: 0.1 kg
Key Features
- Locking against loosening by clamping with polyamide ring
- Zinc plated steel for corrosion resistance
- Complies with DIN 985 standard
- Low form design for compact fastening
Professional Installation Requirements
- Installation by a qualified technician or engineer recommended to ensure proper torque and locking function.
Applications
- Mechanical assemblies requiring secure fastening
- Industrial machinery and equipment
- Automotive and construction applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms.
Available Now
Wurth M16 Zinc Plated Steel Lock Nut with Polyamide Ring is available for immediate purchase, ideal for secure fastening in industrial and mechanical applications.
