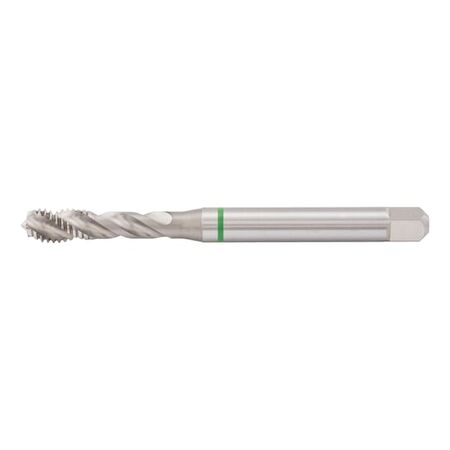

M16 Machine Tap | HSCo Cutting Material | Blind Hole Capability | DIN 376 Compliant | by Wurth
The M16 Machine Tap is designed for precision machining, featuring a metric thread type M16 with a 2 mm pitch and made from durable HSCo cutting material. Ideal for processing alloyed and high-alloyed steels, including stainless and rust-resistant varieties, this tap is perfect for use in milling/drill centers and pedestal drilling machines, ensuring high performance and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M16 Machine Tap | HSCo Cutting Material | Blind Hole Capability | DIN 376 Compliant | by Wurth
Brand: Wurth
SKU: 655016
Alternatively Known As: Machine Tap M16, Metric Thread Cutter, HSCo Thread Tap, Stainless Steel Tap
Technical Specifications
- Thread type: Metric thread M16
- Material to be processed: Steel, Stainless steel
- Hole type: Blind hole up to 2.5x diameter
- Suitable machine types: Milling/drill center, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Length: 110 mm
- Shank diameter: 12.0 mm
- Size of square drive: 9.0 mm
- DIN standard: 376
- Cutting material: HSCo
- Surface finish: Plain
- Form: C
- Core hole diameter: 14.0 mm
- Twist angle: 40° right-hand
- Shank style: Cylindrical with square drive
- Tolerance: ISO 2 (6H)
- Suitable for tensile strength up to: 1000 N/mm²
- Service life rating: 2 of 4 points
- Trueness to gauge rating: 4 of 4 points
- Versatility rating: 2 of 4 points
- Cutting behaviour rating: 3 of 4 points
- Chip formation rating: 2 of 4 points
- Material sub-groups: Stainless steels (sulphurated, austenitic, martensitic)
- Dimensions (H x L x W): 110mm x 110mm x 12mm
- Weight: 0.15 kg
Key Features
- Metric thread type M16 with 2 mm pitch
- Made from HSCo cutting material for durability
- Suitable for blind holes up to 2.5x diameter
- Cylindrical shank with square drive (9 mm size)
- Complies with DIN 376 standard
- ISO 2 (6H) tolerance for screw taps
- Twist angle 40° right-hand
- Surface finish: Plain
- Form C design for effective cutting
- High trueness to gauge with 4 of 4 points
- Good cutting behaviour with 3 of 4 points
Professional Installation Requirements
- Professional use recommended with appropriate machine tools and trained operators for optimal performance and safety.
Applications
- Machining alloyed and high-alloyed steels including stainless, rust-resistant, and acid-resistant steels
- Processing conventional steel materials up to 850 N/mm² strength
- Suitable for milling/drill centers and pedestal drilling machines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable HSCo material reduces frequency of tool replacement, minimizing waste
- Efficient cutting reduces energy consumption during machining
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth M16 Machine Tap is available for immediate purchase, ideal for precision machining in industrial and manufacturing settings.
