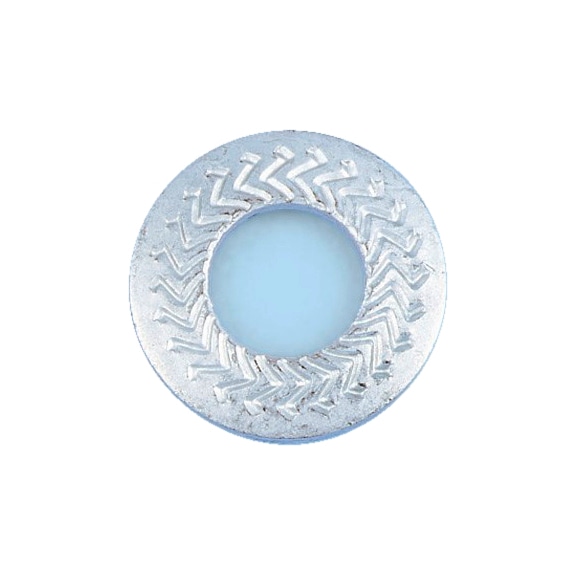

M16 Serrated Lock Washer | Spring Steel | Corrosion Resistant | by Wurth
The M16 Serrated Lock Washer is designed for securing screws and bolts in mechanical assemblies, featuring a durable spring steel construction and a serrated design for effective locking. Ideal for automotive, construction, and industrial applications, it prevents loosening due to vibration and dynamic loads, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M16 Serrated Lock Washer | Spring Steel | Corrosion Resistant | by Wurth
Brand: Wurth
SKU: 40116
Alternatively Known As: M16 Lock Washer, Serrated Lock Washer, Spring Steel Washer, Embedding Lock Washer
Technical Specifications
- Suitable for screw thread: M16
- Internal diameter (d1): 16.4 mm
- Outer diameter (d2): 32.5 mm
- Height (h1): 3.75 mm
- Thickness (s1): 2.5 mm
- Material: Spring steel
- Min./max. Vickers hardness, HV: 420-510 HV
- Surface: Flake zinc silver
- RoHS-compliant: Yes
- Corrosion protection period: 720 h
- Form: M
- Locking device operating principle: Serrated lock washer
- Locking function: Embedding locking device
- Dimensions (H x L x W): 3.75mm x 32.5mm x 32.5mm
- Weight: 0.1 kg
Key Features
- Made from durable spring steel
- Serrated lock washer design for effective locking
- Embedding locking device function
- Flake zinc silver surface for corrosion protection
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and locking performance.
Applications
- Securing screws and bolts with M16 thread in mechanical assemblies
- Used in automotive, construction, and industrial fastening applications
- Prevents loosening due to vibration and dynamic loads
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Corrosion protection extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; typically covers defects in material and workmanship.
Available Now
The Wurth M16 Serrated Lock Washer 40116 is available for immediate purchase, ideal for securing fasteners in industrial and construction applications.
