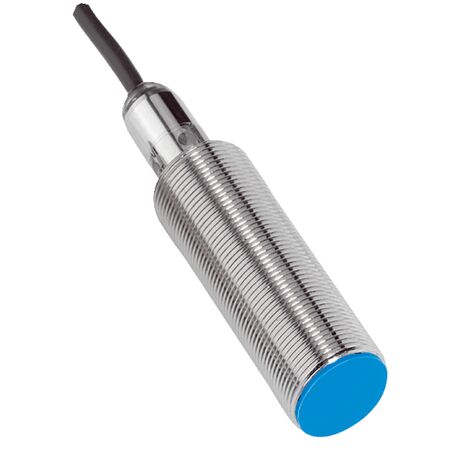

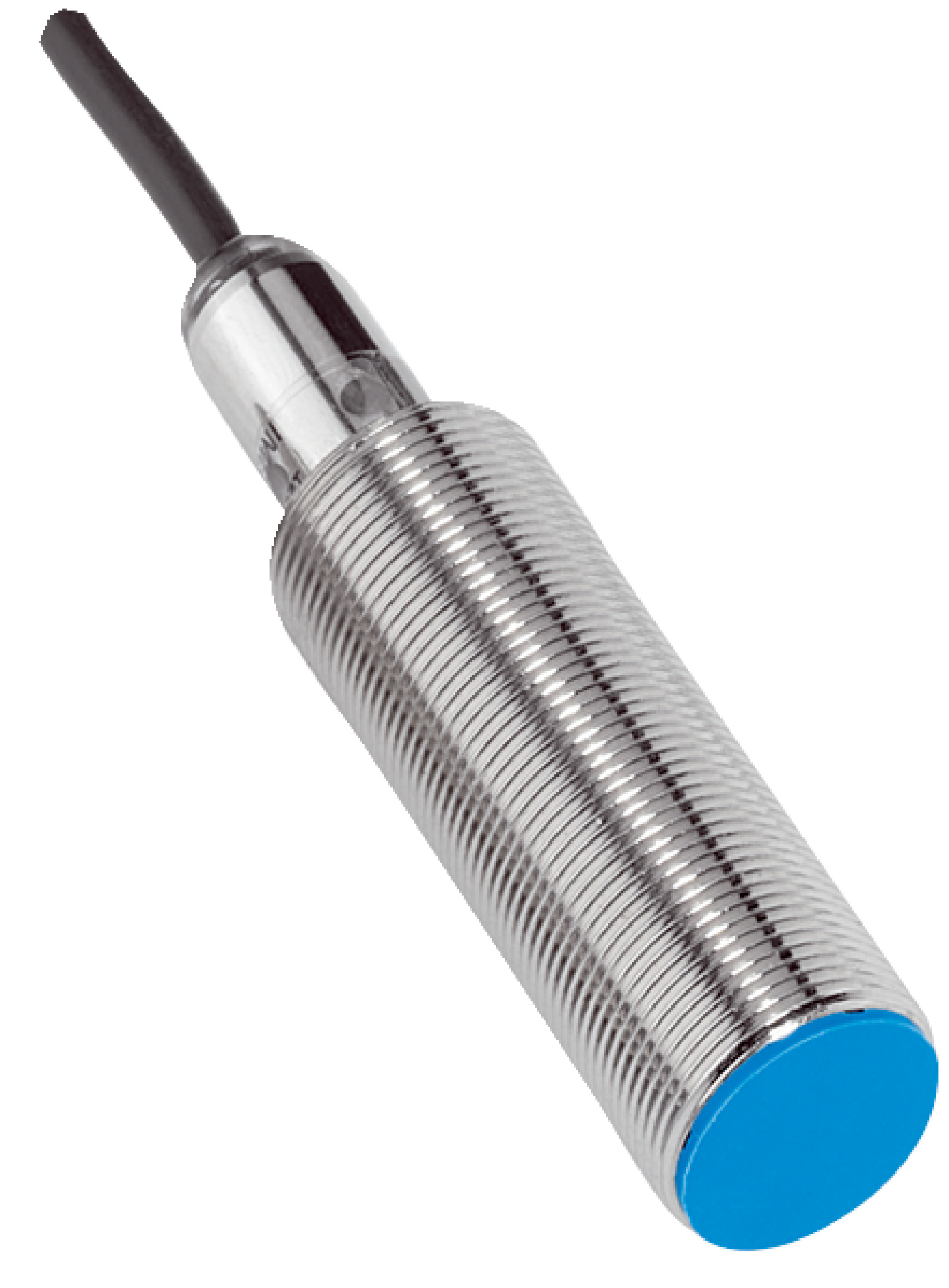

M18 Analog Proximity Sensor | Flush Mount | 0-5mm Sensing Range | IP67 Rated | by SICK
The M18 Analog Proximity Sensor is designed for precise object detection with a sensing range of 0 to 5 mm and high repeatability of ±0.1 mm. Ideal for industrial automation and machine safety applications, this sensor features an analog output (0 V to 10 V, 4 mA to 20 mA) and an IP67 rated enclosure for dust and water protection, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric M18 x 1 thread
- Sensing range Sn: 0 mm to 5 mm
- Installation type: Flush
- Connection type: Cable, 4-wire, 2 m
- Output function: Analog (0 V to 10 V, 4 mA to 20 mA)
- Repeatability: ±0.1 mm
- Enclosure rating: IP67
- Supply voltage: 15 V DC to 30 V DC
- Ripple: ≤ 20%
- Time delay before availability: ≤ 30 ms
- Temperature drift: ≤ 10%
- No load current: ≤ 12 mA
- Max load resistance QA1: ≥ 2 kΩ
- Max load resistance QA2: 400 Ω at 15 V
- Output voltage QA1 at 0 mm: 0 V ±0.6 V, at 2.5 mm: 5 V ±0.6 V, at 5 mm: 10 V ±0.6 V
- Output current QA2 at 0 mm: 4 mA ±0.8 mA, at 5 mm: 20 mA ±0.8 mA
- Bandwidth: 1000 Hz
- Short-circuit protection: Yes
- Ambient operating temperature: -25 °C to +70 °C
- Housing material: Brass, chromium-plated
- Sensing face material: Plastic
- Housing length: 67 mm
- Thread length: 52 mm
- Dimensions (H x L x W): 67mm x 67mm x 18mm
- Weight: 0.1 kg
Key Features
- Flush installation type with M18 x 1 metric thread housing
- Analog output with voltage range 0 V to 10 V and current 4 mA to 20 mA
- Sensing range up to 5 mm with high repeatability ±0.1 mm
- IP67 rated enclosure for dust and water protection
- Short-circuit protection included
- Operating temperature range from -25 °C to +70 °C
- Brass chromium-plated housing with plastic sensing face
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper mounting and electrical connections according to local regulations.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing processes
- Machine safety and control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption enhances energy efficiency in industrial applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMA18-05BE1ZW2S Analog M18 Flush Mount Proximity Sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
