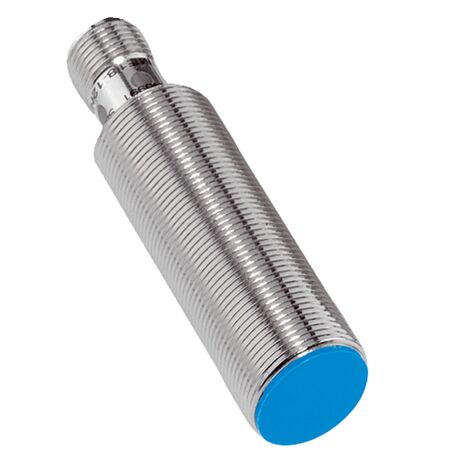

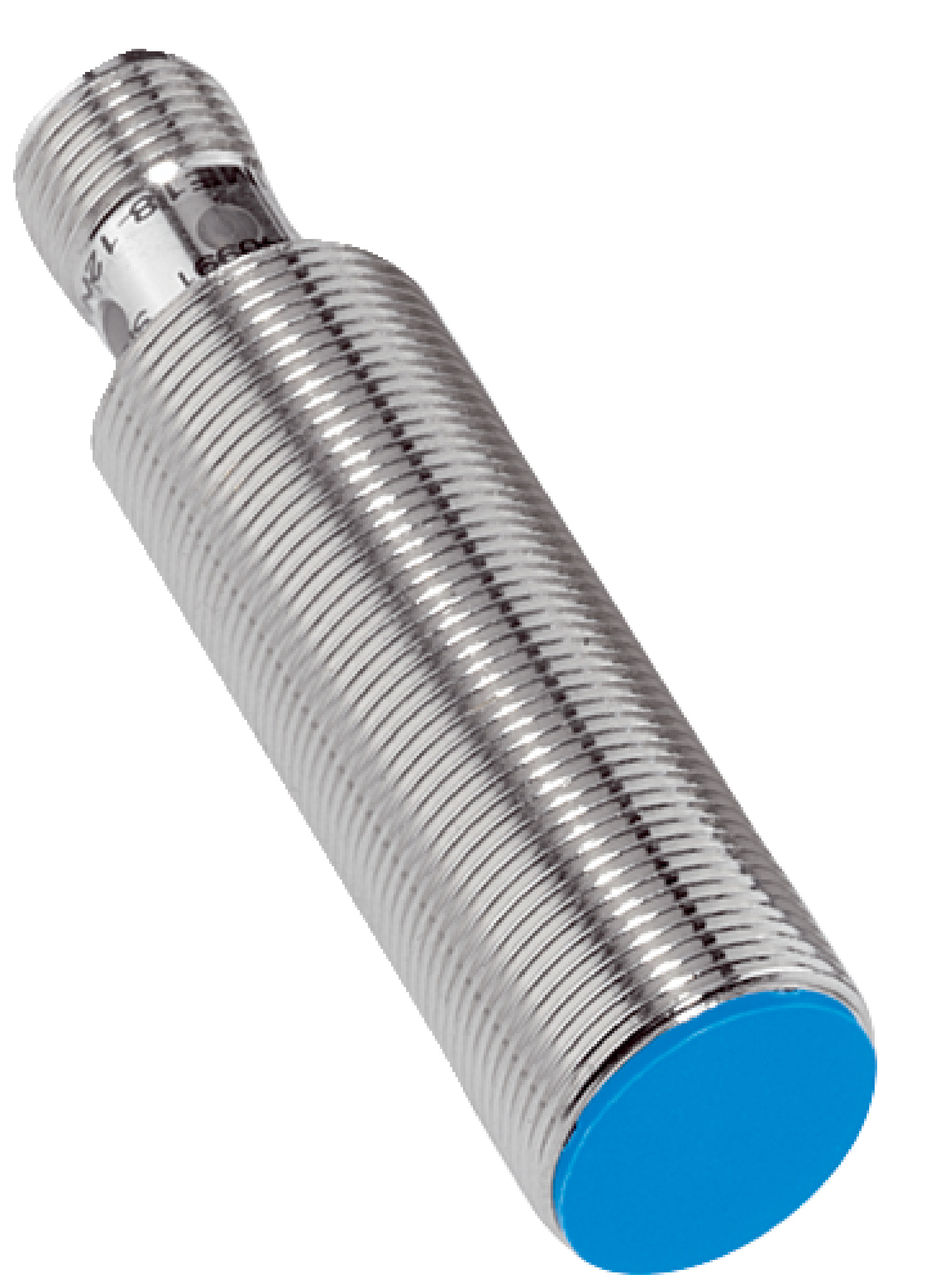

M18 Analog Proximity Sensor | Flush Mount | IP67 Rated | ±0.1 mm Accuracy | by SICK
The M18 Analog Proximity Sensor is designed for precise position sensing in industrial automation. With a sensing range of 0 mm to 5 mm and an analog output of 0-10 V and 4-20 mA, it ensures high repeatability with ±0.1 mm accuracy. Ideal for machine safety and control systems, this sensor features a durable IP67 rated enclosure for dust and water protection, making it perfect for various applications in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric M18 x 1 thread
- Sensing range: 0 mm to 5 mm
- Installation type: Flush
- Connection type: Male connector M12, 4-pin
- Output function: Analog voltage 0-10 V and current 4-20 mA
- Repeatability: ±0.1 mm
- Enclosure rating: IP67
- Supply voltage: 15 V DC to 30 V DC
- Ripple: ≤ 20%
- Time delay before availability: ≤ 30 ms
- Temperature drift: ≤ 10%
- No load current: ≤ 12 mA
- Max load resistance QA1: ≥ 2 kΩ
- Max load resistance QA2: 400 Ω at 15 V
- Output voltage QA1 at 0 mm: 0 V ±0.6 V
- Output voltage QA1 at 2.5 mm: 5 V ±0.6 V
- Output voltage QA1 at 5 mm: 10 V ±0.6 V
- Output current QA2 at 0 mm: 4 mA ±0.8 mA
- Output current QA2 at 5 mm: 20 mA ±0.8 mA
- Bandwidth: 1000 Hz
- Short-circuit protection: Yes
- Ambient operating temperature: -25 °C to +70 °C
- Housing material: Brass, chromium-plated
- Sensing face material: Plastic
- Housing length: 69 mm
- Thread length: 52 mm
- Dimensions (H x L x W): 18mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Flush installation with M18 x 1 metric thread housing
- Analog output with voltage range 0 V to 10 V and current 4 mA to 20 mA
- High repeatability with ±0.1 mm accuracy
- IP67 rated enclosure for dust and water protection
- Short-circuit protection included
- Operating temperature range from -25 °C to +70 °C
- Brass chromium-plated housing with plastic sensing face
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for position sensing
- Machine safety and control systems
- Material handling and conveyor systems
- Robotics and manufacturing process monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption enhances energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMA18-05BE1ZC0S Analog M18 Flush Mount Proximity Sensor is available for immediate purchase, ideal for industrial automation and control applications.
