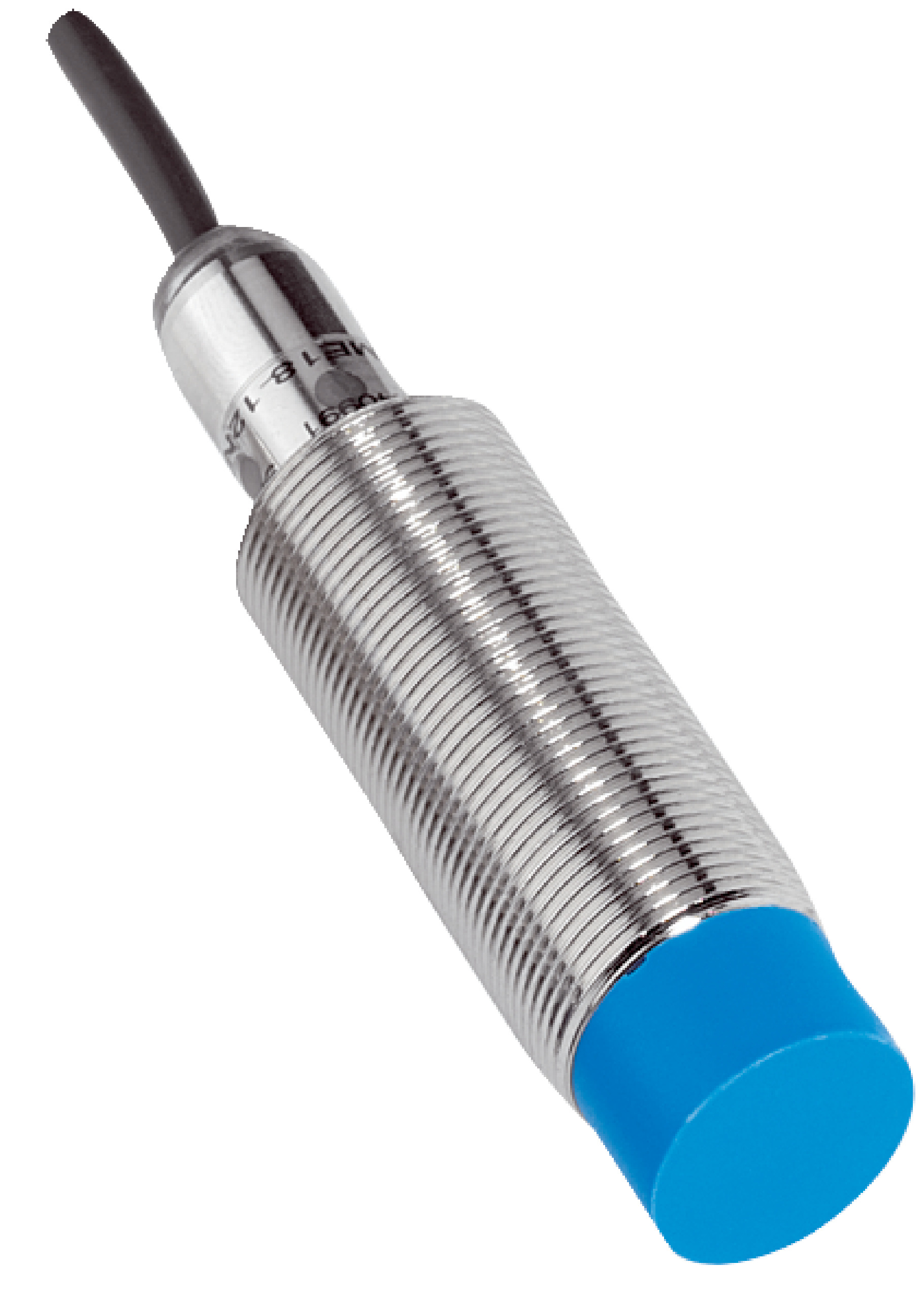

M18 Analog Proximity Sensor | IP67 Rated | 0-10V & 4-20mA Output | 0-8mm Sensing Range | by SICK
The M18 Analog Proximity Sensor is designed for precise object detection in industrial automation, featuring a sensing range of 0 to 8 mm and high repeatability of ±0.1 mm. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for manufacturing lines and non-contact measurements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 15 V DC to 30 V DC
- Output function: Analog 0-10 V and 4-20 mA
- Repeatability: ±0.1 mm
- Sensing range: 0 to 8 mm
- Enclosure rating: IP67
- Operating temperature: -25 °C to +70 °C
- Housing material: Brass, chromium-plated
- Connection type: 4-wire cable, 5 m length
- Bandwidth: 500 Hz
- Short-circuit protection: Yes
- Output current QA2: 4 mA to 20 mA
- Output voltage QA1: 0 V to 10 V
- Dimensions (H x L x W): 67mm x 67mm x 18mm
- Weight: 0.15 kg
Key Features
- Metric housing with M18 x 1 thread size
- Non-flush installation type
- Analog output with 0 V to 10 V voltage range
- Sensing range of 0 mm to 8 mm
- High repeatability with ±0.1 mm accuracy
- IP67 rated enclosure for dust and water protection
- Short-circuit protection included
- Supplied with two brass, chromium-plated mounting nuts
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact measurement in harsh environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now

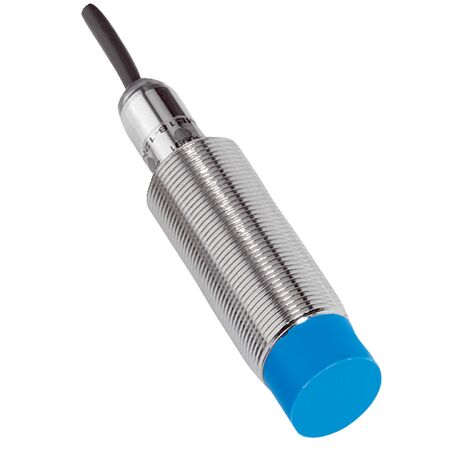

The SICK IMA18-08NE1ZW5S Analog Proximity Sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
