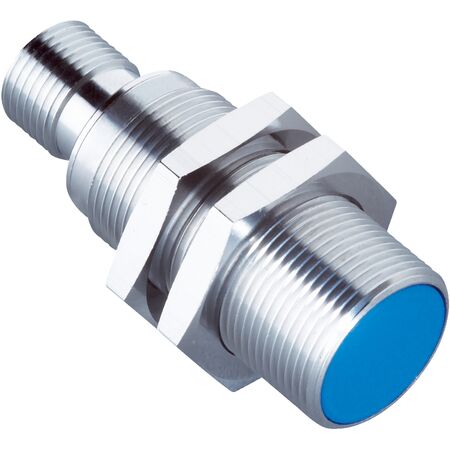

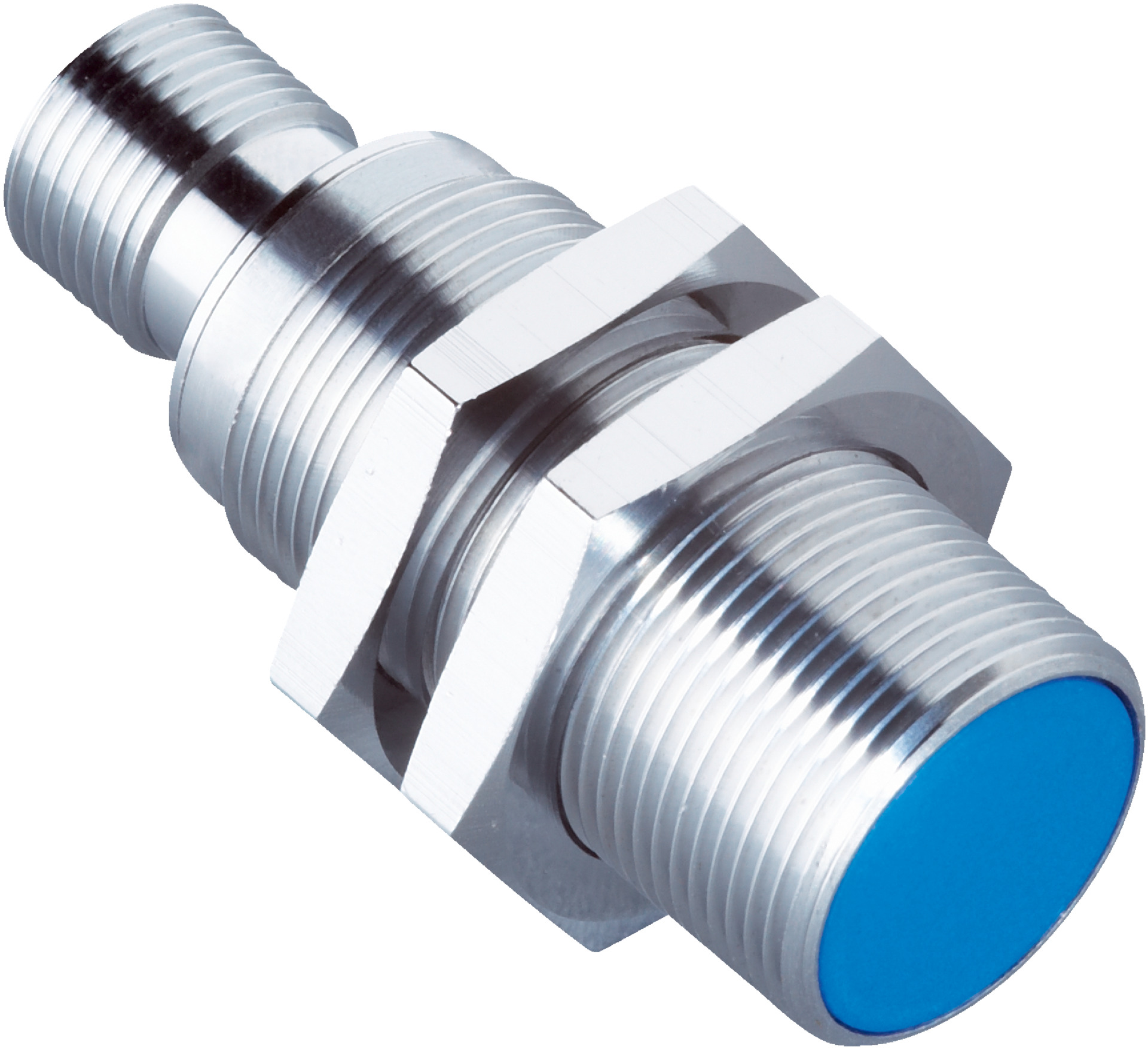

M18 Analog Proximity Sensor | Quasi-Flush Installation | IP67 Rated | High Repeatability ±0.02 mm | by SICK
The M18 Analog Proximity Sensor is designed for precise position sensing in industrial automation, featuring a sensing range of 0 mm to 10 mm and an analog output of 0 V to 10 V. With high repeatability of ±0.02 mm and an IP67 rated enclosure, this sensor is perfect for machine tool monitoring, robotics, and conveyor systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric M18 x 1
- Sensing range Sn: 0 mm to 10 mm
- Installation type: Quasi-flush
- Connection type: Male connector M12, 4-pin
- Output function: Analog 0 V to 10 V
- Repeatability (Taconstant): ±0.02 mm
- Resolution: ≤ 2 µm
- Enclosure rating: IP67
- Supply voltage: 15 V DC to 30 V DC
- Ripple: ≤ 20%
- No load current: ≤ 12 mA
- Load current: ±10 mA
- Max load resistance: ≤ 400 Ω at 15 V, ≤ 1000 Ω at 30 V
- Output voltage QA1 at 23 °C: 0 mm = 0 V, 5 mm = 5.2 V, 10 mm = 10 V
- Output current QA2 at 23 °C: 0 mm = 4 mA, 10 mm = 20 mA
- Bandwidth: 500 Hz
- Short-circuit protection: Yes
- Ambient operating temperature: –25 °C to +70 °C
- Housing material: Brass, chromium-plated
- Sensing face material: Plastic, PTB
- Housing length: 48.5 mm
- Thread length: 32 mm
- Dimensions (H x L x W): 18mm x 48.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Metric M18 x 1 housing with quasi-flush installation
- Analog output with triple sensing range
- High repeatability with ±0.02 mm accuracy
- Resolution ≤ 2 µm for precise measurements
- IP67 rated enclosure for dust and water protection
- Short-circuit protection included
- Operating temperature range from –25 °C to +70 °C
- Supplied with mounting nuts and stainless steel toothed washers
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for precise position sensing
- Machine tool monitoring
- Robotics and assembly line control
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass housing with chromium plating extends product life reducing waste
- Energy-efficient operation with low current consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMA18-10BE1ZC0K sensor is available for immediate purchase, ideal for industrial automation and precise sensing applications.
