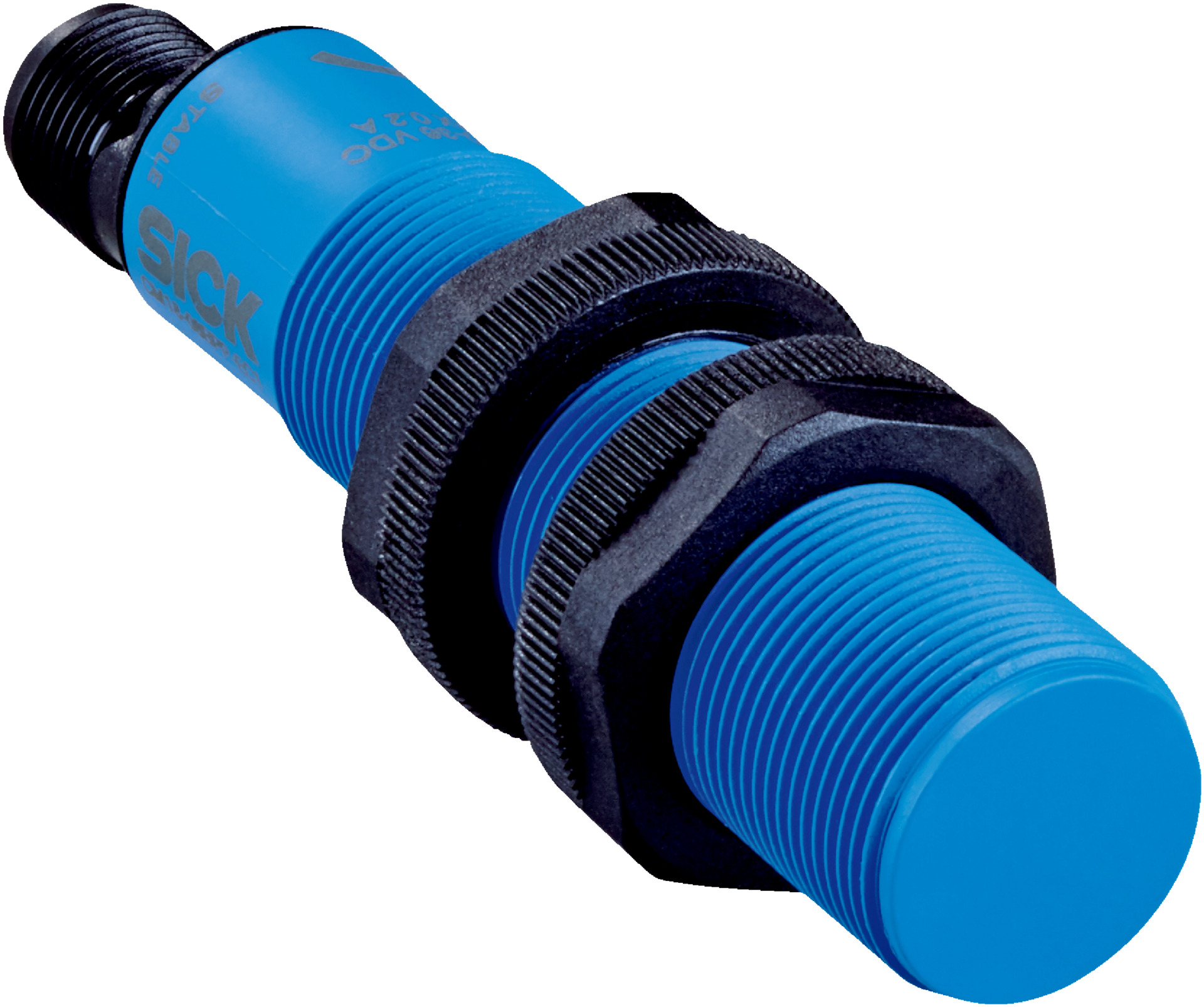

M18 Inductive Proximity Sensor | 0-8mm Sensing Range | IP67/IP68/IP69K Rated | by SICK
The M18 Inductive Proximity Sensor is designed for precise object detection in industrial automation, featuring a sensing range of 0 mm to 8 mm and a robust IP67/IP68/IP69K rated enclosure. Ideal for machine safety and control systems, this sensor operates efficiently in temperatures from -30°C to +85°C, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric M18 x 1
- Sensing range Sn: 0 mm to 8 mm
- Safe sensing range Sa: 6.12 mm
- Switching frequency: 50 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, complementary, wire configurable
- Electrical wiring: DC 4-wire
- Enclosure rating: IP67, IP68, IP69K
- Supply voltage: 10 V DC to 36 V DC
- Current consumption: ≤ 20 mA
- Voltage drop: ≤ 2.5 V DC
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 150 Hz, 1 mm / 15 g
- Ambient operating temperature: -30°C to +85°C
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Process data length: 4 Byte
- Smart Task functions: Base logics including AND, OR, Window, Hysteresis, timers, inverter
- Dimensions (H x L x W): 85mm x 18mm x 18mm
- Weight: 0.1 kg
Key Features
- Flush installation type with metric M18 x 1 housing
- Sensing range of 0 mm to 8 mm with safe sensing range of 6.12 mm
- PNP switching output with complementary wire configurable function
- High switching frequency of 50 Hz
- Robust IP67, IP68, and IP69K rated enclosure for harsh environments
- Visual adjustment indicator for sensitivity tuning
- Shock and vibration resistant compliant with EN 60068 standards
- Wide ambient operating temperature range from -30°C to +85°C
- IO-Link V1.1 communication interface with Smart Task functions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and configuration, ensuring proper mounting torque and connector connections.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Manufacturing process monitoring
- Robotics and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation minimizes power consumption
- Compliant with China-RoHS and ECOLAB standards for environmental safety
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

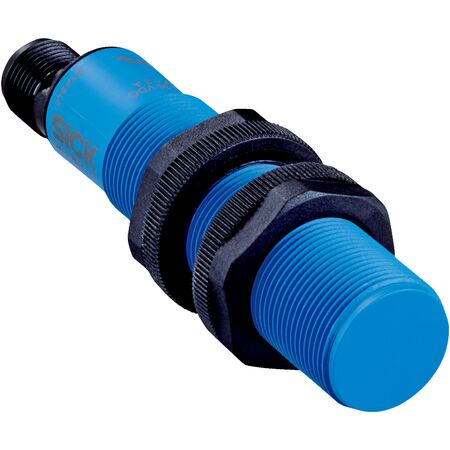

The SICK CMB18-08BPPEC0SA00 inductive sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
