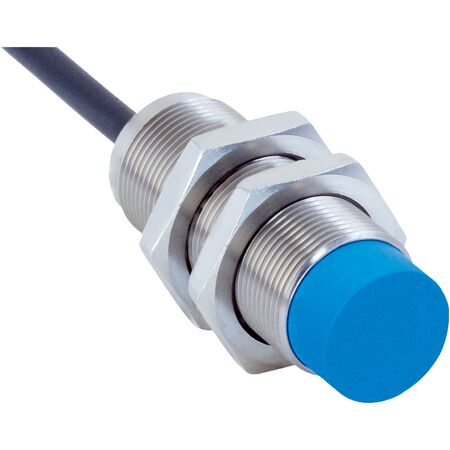

M18 Inductive Proximity Sensor | 12mm Sensing Range | IP67/IP68/IP69K Rated | 1000Hz Switching Frequency | by SICK
The M18 Inductive Proximity Sensor is designed for reliable object detection in industrial automation and mobile machinery applications. With a sensing range of 12mm and a high switching frequency of 1,000 Hz, this sensor is perfect for harsh environments, featuring an IP67/IP68/IP69K enclosure rating for protection against dust and moisture. Built to withstand coolant lubricants and temperature extremes, it ensures durability and minimal downtime.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, nickel-plated brass
- Thread size: M18 x 1
- Sensing range Sn: 12 mm
- Safe sensing range Sa: 9.72 mm
- Installation type: Non-flush
- Switching frequency: 1,000 Hz
- Connection type: Cable, 3-wire, 2 m
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67, IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Environmental test: Quick temperature change EN 60068-2-14
- Corrosion test: Salt spray test EN 60068-2-52 severity 5
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR
- Cable diameter: Ø 3.9 mm
- Bending radius: Fixed > 5x cable diameter, flexible > 10x cable diameter
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: EN 60068-2-6, EN 60068-2-27, EN 60068-2-64
- Ambient operating temperature: -40 °C to +85 °C
- Housing length: 59.4 mm
- Thread length: 46.9 mm
- Tightening torque max: ≤ 30 Nm
- Protection class: III
- UL File No.: E181493
- Dimensions (H x L x W): 59mm x 59mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard M18 x 1 housing with non-flush installation
- Sensing range of 12 mm with safe sensing range of 9.72 mm
- High switching frequency of 1,000 Hz
- PNP switching output with normally open function
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP67, IP68, and IP69K for harsh environments
- Resistant against coolant lubricants and temperature extremes
- Shock and vibration resistant according to EN 60068 standards
- Operating temperature range from -40 °C to +85 °C
- Includes mounting nuts, brass, nickel-plated
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Mobile machines in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- High resistance to harsh environments minimizes downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMG18-12NPSZU2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and mobile machinery applications requiring reliable object detection in harsh environments.
