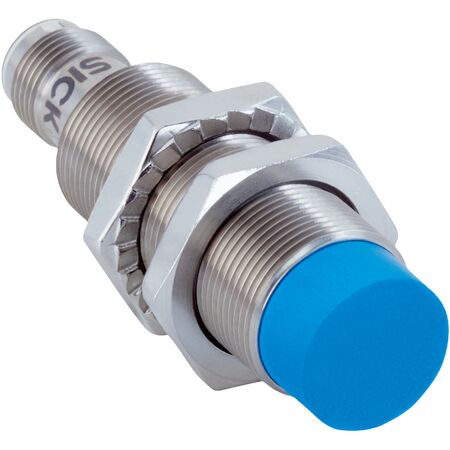

M18 Inductive Proximity Sensor | 12mm Sensing Range | IP68 & IP69K Rated | PNP Output | by SICK
The M18 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a sensing range of up to 12mm and robust IP68/IP69K protection. Ideal for harsh environments with coolants and lubricants, this sensor offers programmable switching points and high durability, making it perfect for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: Programmable
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -40 °C to +75 °C
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Plastic, LCP
- Thread length: 39 mm
- Tightening torque max: Typ. 90 Nm
- Switching frequency: 250 Hz
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Process data length: 32 Bit
- Dimensions (H x L x W): 65mm x 65mm x 18mm
- Weight: 0.1 kg
Key Features
- Metric housing with M18 x 1 thread size
- Sensing range up to 12 mm with safe sensing range of 9.72 mm
- Up to 4 adjustable switching points or windows
- Switching modes include single point, window mode, two point mode with visual adjustment indicator
- Switching frequency of 250 Hz
- Non-flush installation type
- Male connector M12, 4-pin connection
- PNP switching output with programmable NC/NO function
- Electrical wiring DC 4-wire
- Enclosure rating IP68 and IP69K for high protection
- Smart Task functionality with logic and timer functions
- Resistant against coolant lubricants
- Communication interface IO-Link V1.1 with COM2 38.4 kBaud
- Shock and vibration resistant with high durability
- Operating temperature range from -40 °C to +75 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Includes mounting nut made of V2A stainless steel with locking teeth
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and IO-Link communication protocols to ensure proper setup and safety.
Applications
- Industrial automation for object detection
- Use in zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient sensor operation minimizes power consumption
- Resistant to harsh environments reducing environmental contamination risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMC18-12NPPVC0SA00 inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
