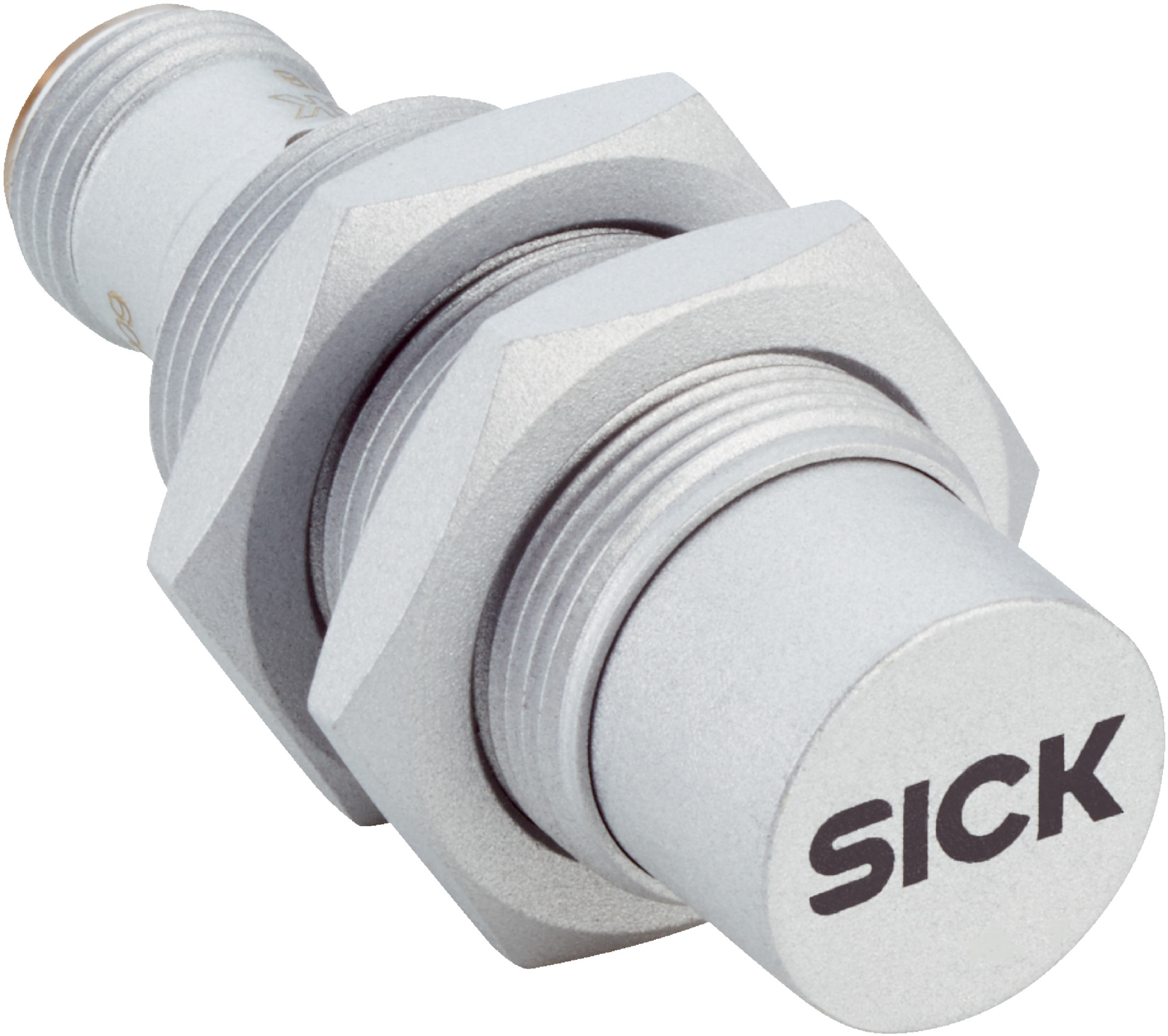

M18 Inductive Proximity Sensor | 15mm Sensing Range | PNP Output | IP68 Rated | by SICK
The M18 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a 15mm sensing range and a high switching frequency of 1,500 Hz. With its durable PTFE coated brass housing and IP68 rating, this sensor is perfect for harsh environments and non-flush mounting applications, ensuring optimal performance in welding and manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 1,500 Hz
- Sensing range Sn: 15 mm
- Safe sensing range Sa: 12.1 mm
- Output type: PNP, Normally Open (NO)
- Connection: Male connector M12, 4-pin
- Electrical wiring: DC 3-wire
- Ripple: ≤ 10%
- Voltage drop: ≤ 1.8 V
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ≤ ±10% to ±15%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 15 mA
- Off-state current: ≤ 0.1 mA
- Short-circuit protection included
- Magnetic field strength tolerance: ≤ 100 mT
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Operating temperature: -30°C to +85°C
- Housing material: PTFE coated brass
- Sensing face material: Plastic with PTFE coating
- Protection class: II
- IP rating: IP68
- Dimensions (H x L x W): 52mm x 52mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with PTFE coated brass
- Thread size M18 x 1 with 15 mm sensing range
- Non-flush installation type
- High switching frequency of 1,500 Hz
- PNP switching output with NO function
- IP68 rated enclosure for harsh environments
- Magnetic-field-resistant with reduction factor 1
- Includes mounting nut and washers with PTFE coating
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Welding range and difficult application conditions
- Non-flush mounting sensing in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable PTFE coated housing extends product life reducing waste
- Energy-efficient sensor operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

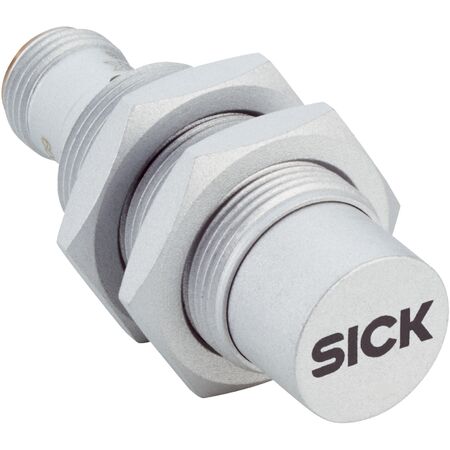

The SICK IMR18-15NPSTC0S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
