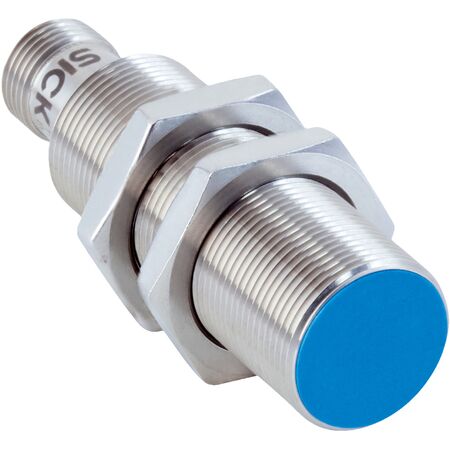

M18 Inductive Proximity Sensor | 8mm Sensing Range | IP67/IP68/IP69K Rated | PNP Output | by SICK
The M18 Inductive Proximity Sensor is designed for industrial automation, featuring an 8mm sensing range and robust IP67/IP68/IP69K protection. Ideal for detecting metal objects in harsh environments, this sensor operates within -40 °C to +85 °C and includes a PNP output with a switching frequency of 1,000 Hz. Its durable design ensures reliability in zones with coolant and lubricants, making it perfect for mobile machines and challenging applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g, vibration resistance: 60 g peak
- LED yellow indicator for switching status
- Protection class III
- UL File No.: E181493
- Dimensions (H x L x W): 18mm x 69.4mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M18 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Flush installation type
- Switching frequency of 1,000 Hz
- PNP switching output with NC function
- Connection via male M12 4-pin connector
- Enclosure rating IP67, IP68, and IP69K for high protection
- Resistant against coolant lubricants and temperature resistant
- Shock and vibration resistant according to EN standards
- Operating temperature range from -40 °C to +85 °C
- Housing made of nickel-plated brass with plastic sensing face
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to industrial safety standards.
Applications
- Industrial automation for detecting metal objects
- Mobile machines operating in harsh environments
- Zones with coolant and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- High resistance to harsh environments minimizes downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMG18-08BPOZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
