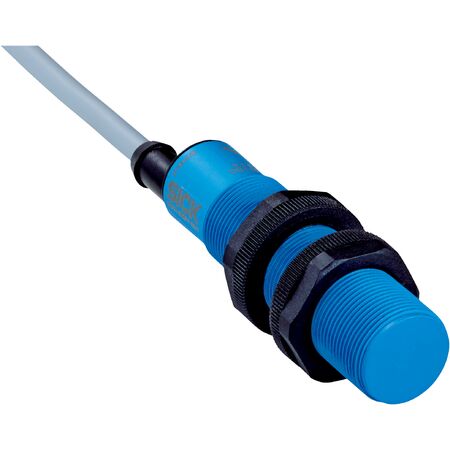

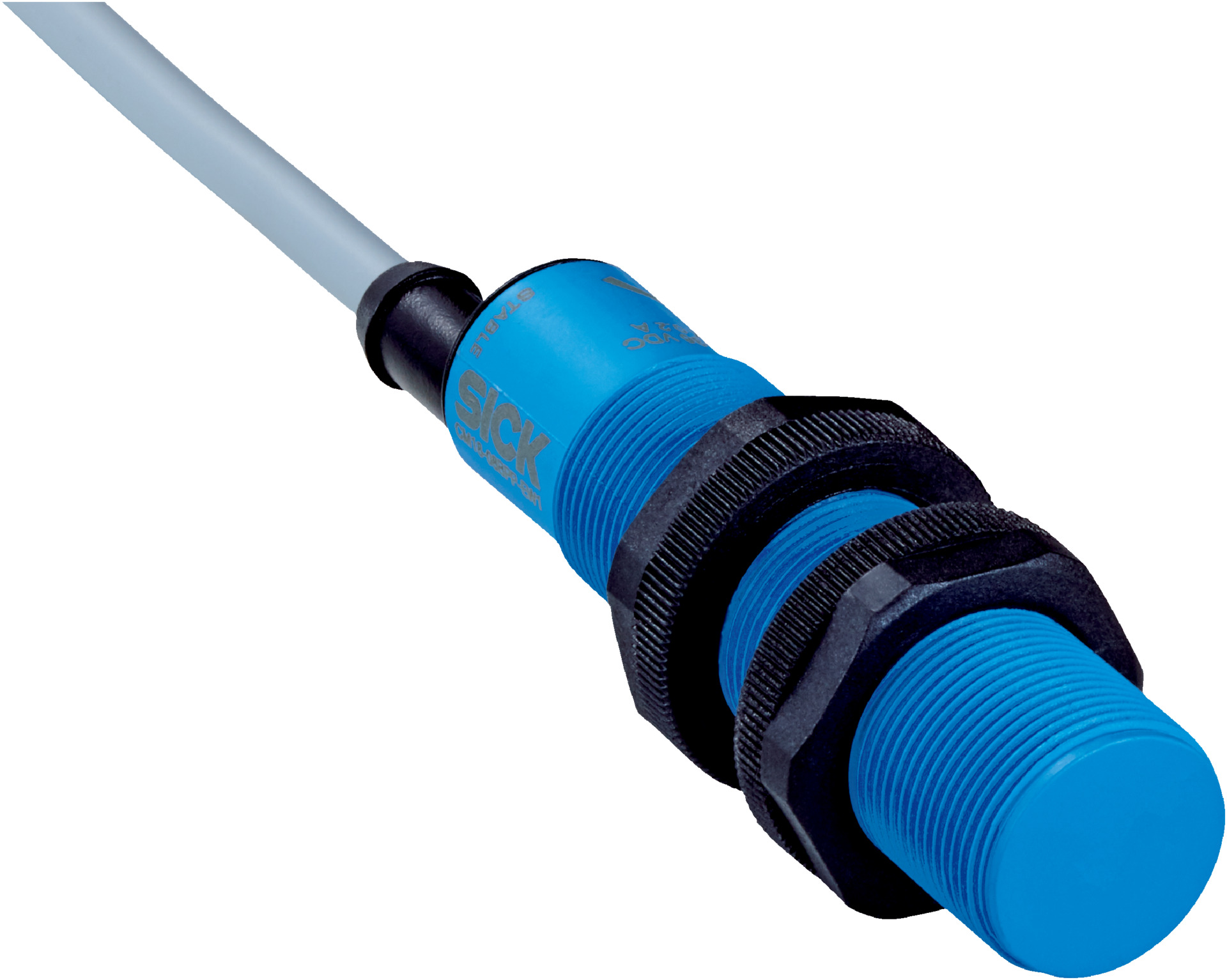

M18 Inductive Proximity Sensor | Flush Mount | 8mm Sensing Range | IP67/IP68/IP69K Rated | by SICK
The M18 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a sensing range of up to 8 mm and a robust IP67/IP68/IP69K rated enclosure. Ideal for machine safety and control systems, this sensor operates within a wide temperature range of -30°C to +85°C, ensuring durability and performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric M18 x 1 thread
- Sensing range Sn: 0 to 8 mm
- Safe sensing range Sa: 6.12 mm
- Switching frequency: 50 Hz
- Connection type: 4-wire cable, 2 m length
- Switching output: PNP, complementary, wire configurable
- Electrical wiring: DC 4-wire
- Enclosure rating: IP67, IP68, IP69K
- Supply voltage: 10 V DC to 36 V DC
- Current consumption: ≤ 20 mA
- Voltage drop: ≤ 2.5 V DC
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 5%
- Operating temperature: -30°C to +85°C
- Storage temperature: -40°C to +85°C
- Cable diameter: Ø 5.2 mm
- Housing material: Plastic, PBT
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 150 Hz, 1 mm / 15 g
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 86mm x 86mm x 18mm
- Weight: 0.1 kg
Key Features
- Flush installation with M18 x 1 metric thread housing
- Sensing range up to 8 mm with safe sensing range of 6.12 mm
- PNP switching output with complementary wire configurable function
- High switching frequency of 50 Hz
- Robust IP67, IP68, and IP69K rated enclosure for harsh environments
- Visual adjustment indicator for sensitivity tuning
- Shock and vibration resistant according to EN 60068 standards
- Wide operating temperature range from -30°C to +85°C
- IO-Link V1.1 communication interface with smart task functions
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Manufacturing process monitoring
- Robotics and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation minimizes power consumption
- Robust IP ratings protect against environmental damage, extending product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK CMB18-08BPPEW2SA00 inductive sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
