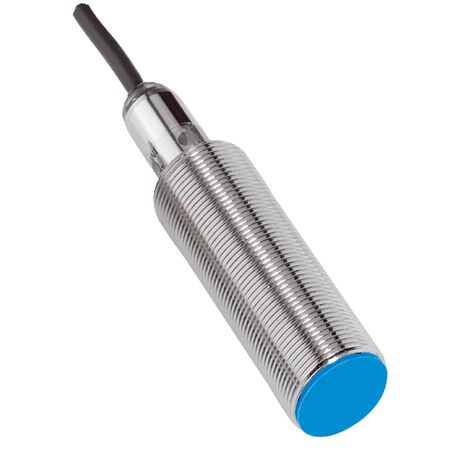

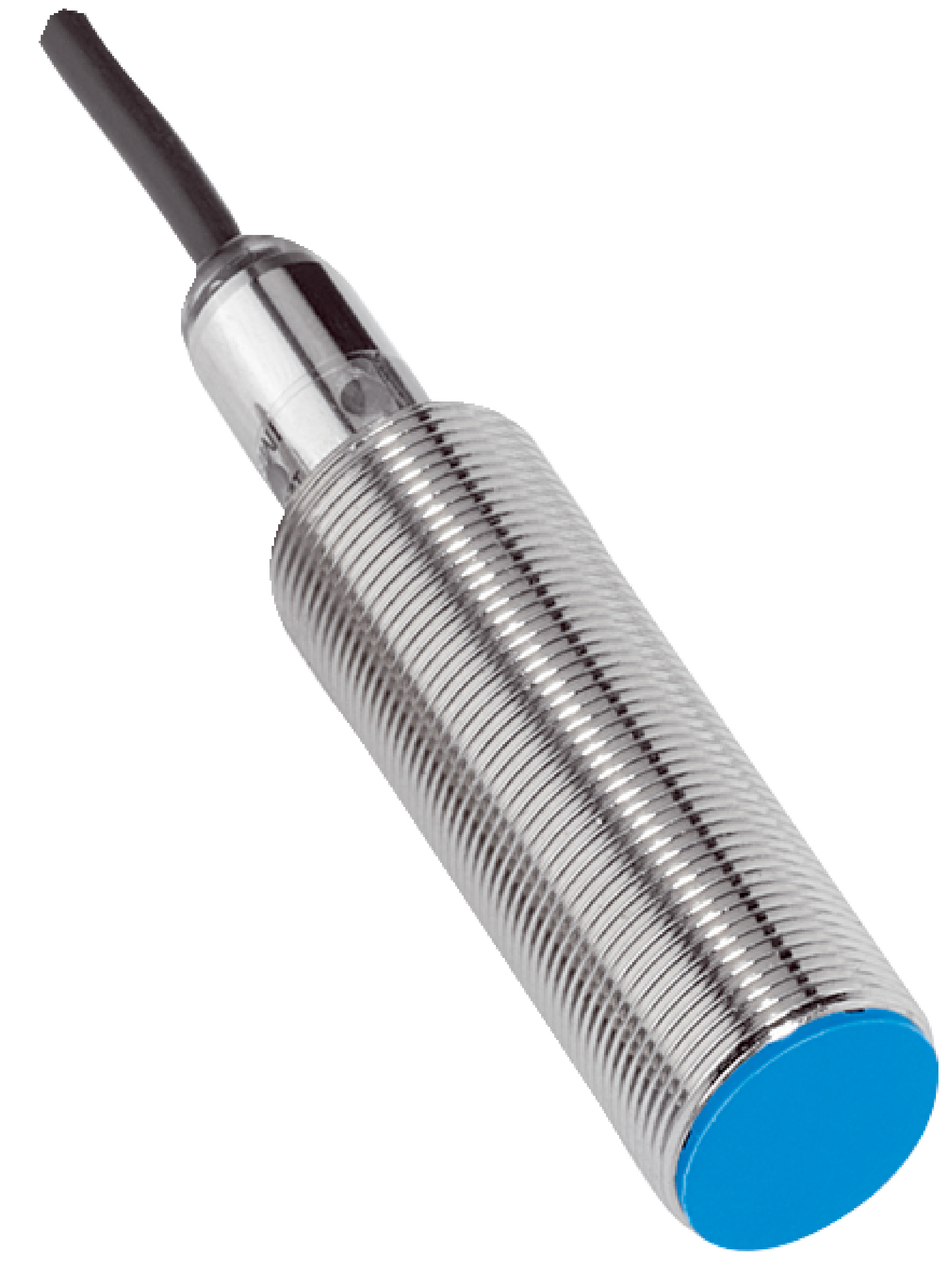

M18 Inductive Proximity Sensor | IP67 Rated | 5mm Sensing Range | PNP Output | by SICK
The M18 Inductive Proximity Sensor is designed for reliable object detection in industrial automation. With a sensing range of 5 mm and an IP67 rating for dust and water protection, it’s perfect for machine safety and control systems. Built for durability with a nickel-plated brass housing, this sensor ensures long service life and energy-efficient operation, making it ideal for manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M18 Inductive Proximity Sensor | IP67 Rated | 5mm Sensing Range | PNP Output | by SICK
Brand: SICK
SKU: 1046725
Alternatively Known As: M18 Inductive Proximity Sensor, IME18 Proximity Sensor, SICK Proximity Sensor M18
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter 3.9 mm
- Conductor size: 0.25 mm²
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Tightening torque max: ≤ 40 Nm
- Switching output: PNP, normally open
- Connection type: Cable, 3-wire, 5 m
- Dimensions (H x L x W): 18mm x 67mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M18 x 1 thread size
- Sensing range of 5 mm with safe sensing range of 4.05 mm
- Flush installation type
- Switching frequency up to 1,000 Hz
- PNP switching output with normally open function
- Cable connection, 3-wire, 5 m length
- Enclosure rating IP67 for dust and water protection
- Shock and vibration resistant up to 30 g
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Position sensing in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass housing with nickel plating ensures long service life reducing waste
- Energy-efficient operation with low power consumption
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IME18-05BPSZW5S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and safety control applications.
