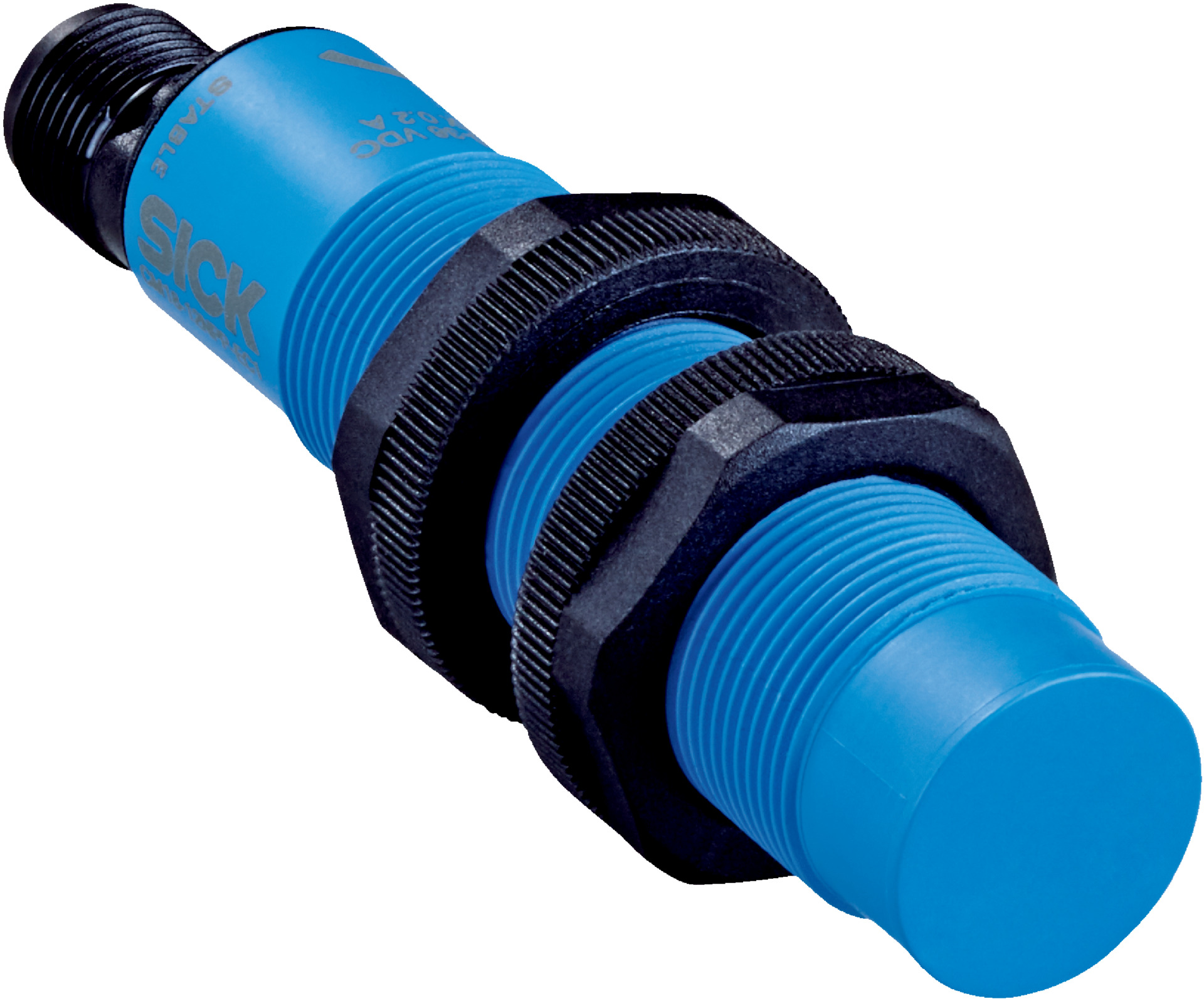

M18 Inductive Proximity Sensor | IP67, IP68, IP69K Rated | 12mm Sensing Range | PNP Output | by SICK
The M18 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a sensing range of up to 12 mm and a robust IP67, IP68, and IP69K enclosure rating. Ideal for manufacturing process control and conveyor systems, this sensor operates within a wide temperature range of -30°C to +85°C, ensuring durability and performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 36 V DC
- Current consumption: ≤ 20 mA
- Voltage drop: ≤ 2.5 V DC
- Switching output: PNP complementary, wire configurable
- Switching frequency: 50 Hz
- Sensing range Sn: 0 to 12 mm
- Safe sensing range Sa: 9.18 mm
- Enclosure rating: IP67, IP68, IP69K
- Operating temperature: -30°C to +85°C
- Housing material: Plastic, PBT
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Shock resistance: 30 g, 11 ms shocks per EN 60068-2-27
- Vibration resistance: 10 Hz to 150 Hz, 1 mm / 15 g per EN 60068-2-6
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 85mm x 85mm x 18mm
- Weight: 0.1 kg
Key Features
- Metric housing with M18 x 1 thread size
- Non-flush installation type
- Sensing range up to 12 mm with safe sensing range of 9.18 mm
- Switching frequency of 50 Hz
- PNP complementary wire configurable output
- Male connector M12, 4-pin connection
- Visual adjustment indicator for sensitivity
- Enclosure rating IP67, IP68, and IP69K for harsh environments
- Short-circuit and power-up pulse protection
- Shock and vibration resistant according to EN 60068 standards
- Wide ambient operating temperature from -30°C to +85°C
- Communication interface IO-Link V1.1 with COM2 38.4 kBaud
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Conveyor systems
- Robotics and machinery safety
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP69K rated housing reduces waste by extending product life in harsh environments
- Energy-efficient sensor operation minimizes power consumption in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

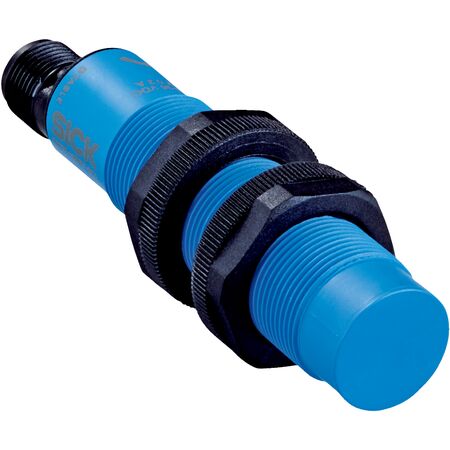

The SICK CMB18-12NPPEC0SA00 inductive sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
