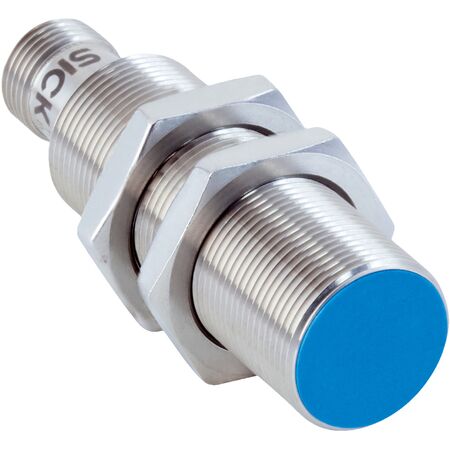

M18 Inductive Proximity Sensor | IP67, IP68, IP69K Rated | NPN Normally Open Output | by SICK
The M18 Inductive Proximity Sensor is designed for reliable object detection in industrial automation. With an IP67, IP68, and IP69K rating, it withstands harsh environments, making it ideal for mobile machines and areas with coolants. Featuring a sensing range of 8 mm and a robust nickel-plated brass housing, this sensor ensures durability and high performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: NPN, normally open
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67, IP68, IP69K
- Shock resistance: 100 g, 2 ms sinusoidal shocks
- Vibration resistance: 60 g peak (10 Hz to 2000 Hz)
- Housing material: Nickel-plated brass
- Sensing face material: Plastic, LCP
- Protection class: III
- Dimensions (H x L x W): 18mm x 69.4mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with nickel-plated brass material
- M18 x 1 thread size for flush installation
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Switching frequency up to 1,000 Hz
- NPN normally open switching output with DC 3-wire electrical wiring
- IP67, IP68, and IP69K rated for high protection against dust and water
- Resistant against coolant lubricants and temperature resistant
- Shock and vibration resistant according to EN 60068 standards
- Short-circuit and power-up pulse protection included
- Operating temperature range from -40 °C to +85 °C
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Mobile machines in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- High resistance to harsh environments minimizes risk of failure and downtime
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMG18-08BNSZC0S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
