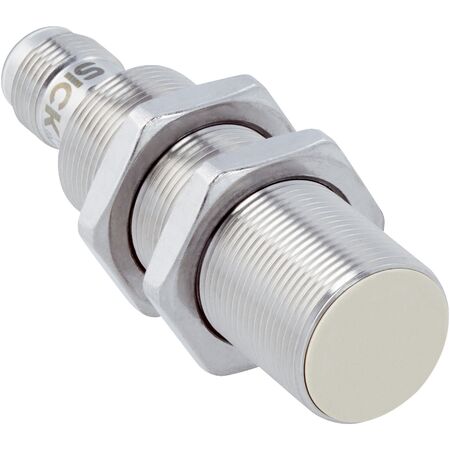

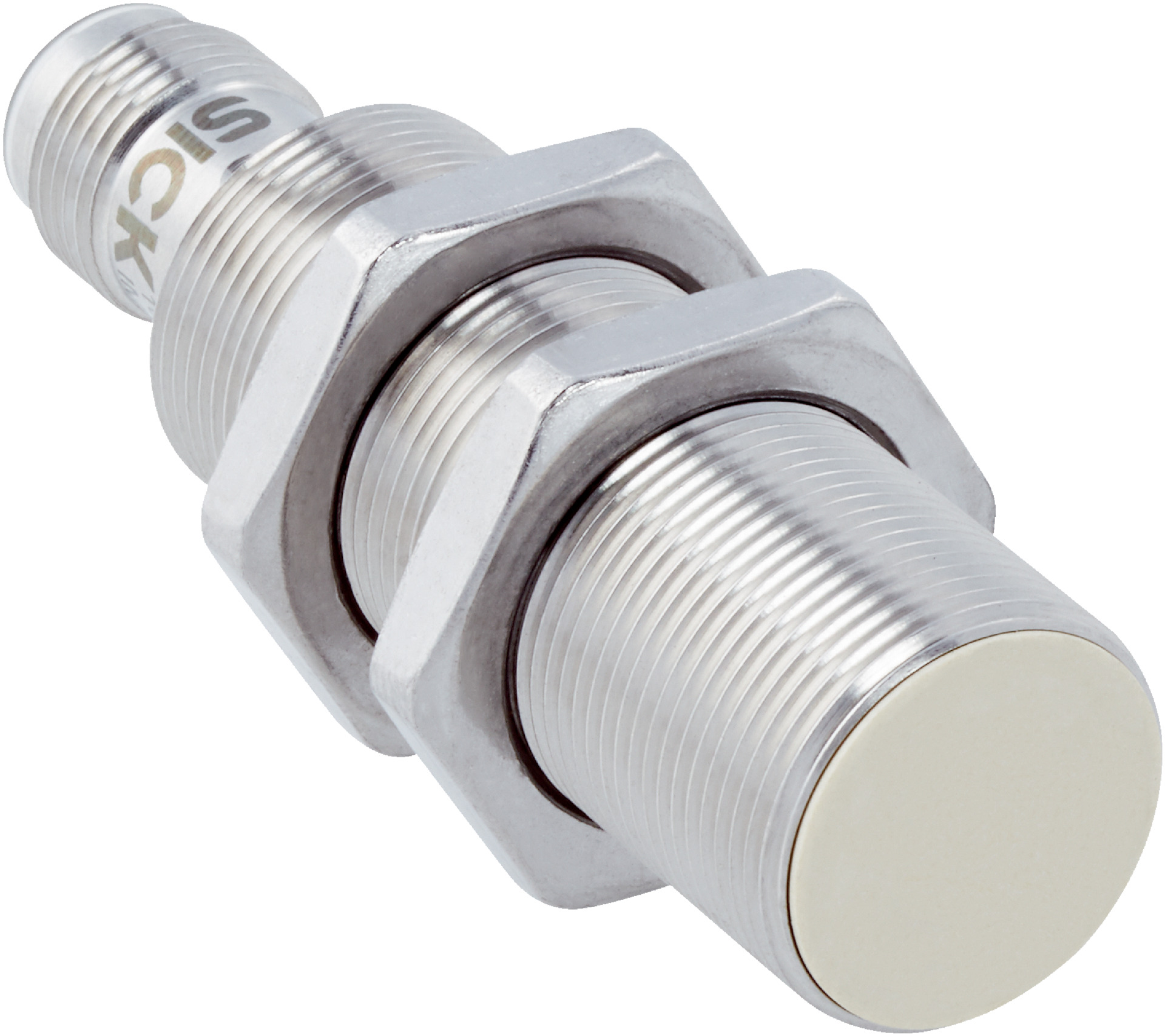

M18 Inductive Proximity Sensor | IP68 & IP69K Rated | Stainless Steel Housing | 8mm Sensing Range | by SICK
The M18 Inductive Proximity Sensor is designed for hygienic and washdown zones, featuring an IP68 and IP69K rating for high protection against dust and water. With a robust stainless steel housing and a sensing range of 8 mm, this sensor is perfect for industrial automation and machinery requiring reliable object detection, ensuring durability and longevity in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic, LCP
- Protection class: III
- Switching output: PNP, normally closed (NC)
- Connection type: Male connector M12, 4-pin
- Dimensions (H x L x W): 65mm x 65mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M18 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Quasi-flush installation type
- Switching frequency of 1,000 Hz with PNP NC output
- Male connector M12, 4-pin connection
- Enclosure rating IP68 and IP69K for high protection
- Resistant to cleaning agents and temperature resistant
- Visual adjustment indicator for easy setup
- Includes mounting nuts made of V4A stainless steel
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation and machinery requiring reliable object detection
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to cleaning agents reduces need for frequent replacements
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IMF18-08BPONC0S inductive sensor is available for immediate purchase, ideal for industrial automation and hygienic applications requiring robust sensing solutions.
