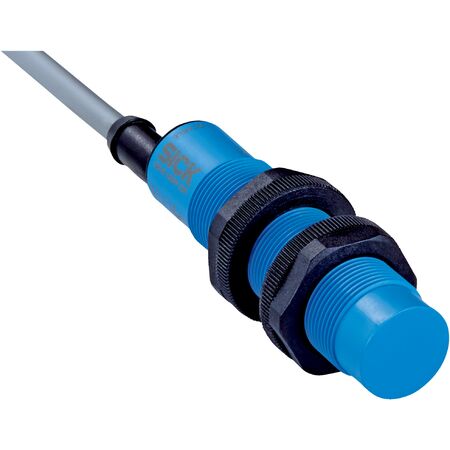

M18 Inductive Proximity Sensor | Non-Flush Installation | IP67, IP68, IP69K Rated | 12mm Sensing Range | by SICK
The M18 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a non-flush installation type and a sensing range of up to 12 mm. With an IP67, IP68, and IP69K rating, this sensor is built to withstand harsh environments, making it ideal for manufacturing process control and robotics safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 36 V DC
- Current consumption: ≤ 20 mA
- Switching frequency: 50 Hz
- Cable: 4-wire, 2 m PVC cable with 0.34 mm² conductor size
- Voltage drop: ≤ 2.5 V DC
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 5%
- Temperature drift: ±10%
- Shock resistance: 30 g, 11 ms per EN 60068-2-27
- Vibration resistance: 10 Hz to 150 Hz, 1 mm / 15 g per EN 60068-2-6
- Enclosure rating: IP67, IP68, IP69K
- Housing material: Plastic, PBT
- Thread size: M18 x 1
- Communication: IO-Link V1.1, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 86mm x 18mm x 18mm
- Weight: 0.1 kg
Key Features
- Metric M18 x 1 housing with 18 mm diameter
- Non-flush installation type
- Sensing range up to 12 mm with safe sensing range of 9.18 mm
- PNP switching output with complementary wire configurable function
- Visual adjustment indicator for sensitivity
- IP67, IP68, and IP69K rated for harsh environments
- Shock and vibration resistant according to EN 60068 standards
- Operating temperature range from -30°C to +85°C
- IO-Link V1.1 communication interface with COM2 (38.4 kBaud)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting, wiring, and configuration according to industrial standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Conveyor systems
- Robotics and machinery safety
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
- High ingress protection reduces environmental contamination
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CMB18-12NPPEW2SA00 inductive sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
