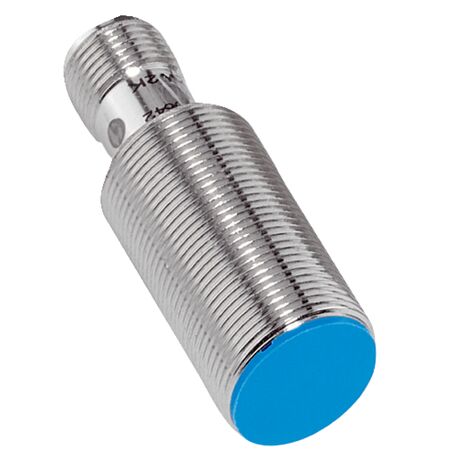

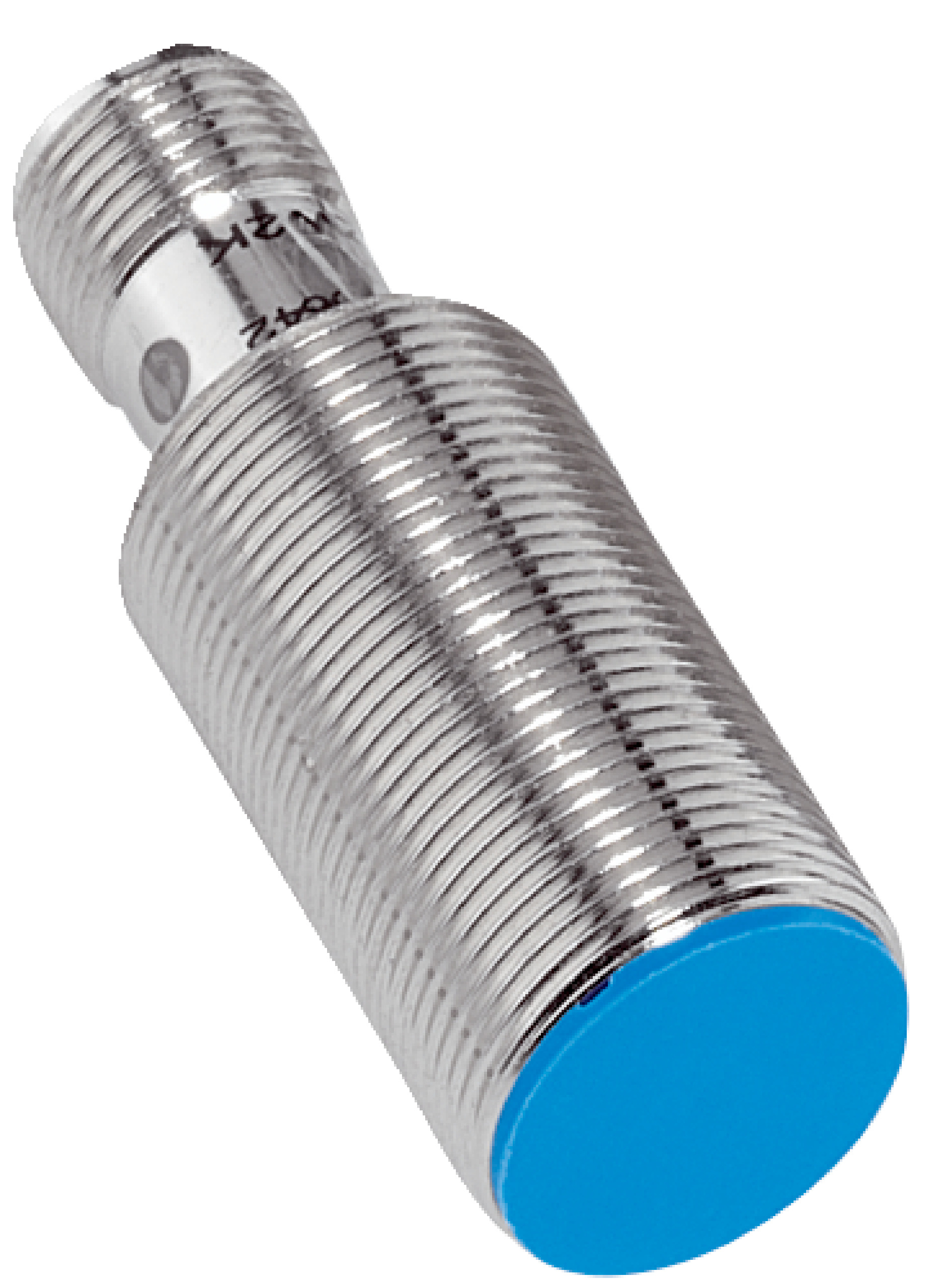

M18 Inductive Proximity Sensor | Short Body | IP67 Rated | NPN NC Output | by SICK
The M18 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a short body with an M18 x 1 thread size and an IP67 rated enclosure. With a sensing range of 5 mm and a switching frequency of up to 1,000 Hz, this sensor is perfect for position sensing in manufacturing lines and metal detection in machinery, ensuring durability and efficiency in confined spaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M18 Inductive Proximity Sensor | Short Body | IP67 Rated | NPN NC Output | by SICK
Brand: SICK
SKU: 1040945
Alternatively Known As: M18 Inductive Proximity Sensor, Short Body Inductive Sensor, NPN NC Proximity Sensor, Flush Mount Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: NPN normally closed
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread size: M18 x 1
- Housing length: 50 mm
- Thread length: 33 mm
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 50mm x 18mm x 18mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M18 x 1 thread size
- Sensing range of 5 mm with safe sensing range of 4.05 mm
- Flush installation type with IP67 rated enclosure
- Switching frequency up to 1,000 Hz
- NPN normally closed output with DC 3-wire electrical wiring
- Male connector M12, 4-pin connection type
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Wide operating temperature range from -25 °C to +75 °C
- Brass nickel-plated housing with plastic PA 66 sensing face
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Flush mounting in confined spaces
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient sensor operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK IME18-05BNOZC0K inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
