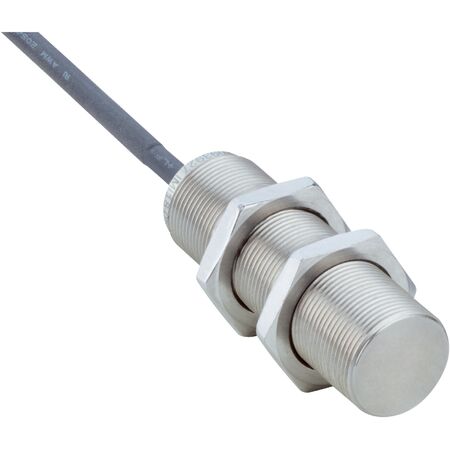

M18 Inductive Proximity Sensor | Stainless Steel Flush Mount | IP68 & IP69K Rated | NPN Output | by SICK
The M18 Inductive Proximity Sensor is designed for robust industrial automation, featuring a stainless steel flush mount for hygienic applications. With an IP68 and IP69K rating, it withstands harsh conditions while providing reliable NPN switching output. Ideal for washdown zones and environments requiring high durability, this sensor ensures optimal performance in challenging settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 50 Hz
- Switching output: NPN, normally closed (NC)
- Cable: 3-wire, 2 m length, PUR material
- Enclosure rating: IP68, IP69K
- Housing and sensing face material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Operating temperature: -25 °C to +75 °C
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 5 ms / 1000 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz, 60 g
- Voltage drop: ≤ 2 V
- No load current: ≤ 10 mA
- Continuous current: ≤ 200 mA
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- MTTFD: 1,892 years
- Dimensions (H x L x W): 59.5mm x 59.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Metric housing with M18 x 1 thread size
- Flush installation type
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- NPN switching output with NC function
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V4A, resistant to cleaning agents
- Short-circuit and power-up pulse protection
- Shock and vibration resistant
- Wide operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring flush mounting sensors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to cleaning agents supports hygienic environments reducing contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMI18-08BNONU2S stainless steel M18 flush mount inductive sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
