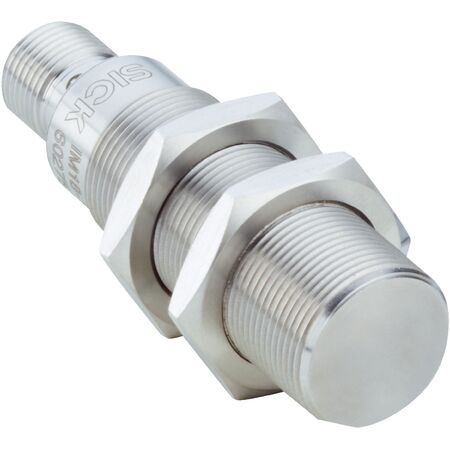

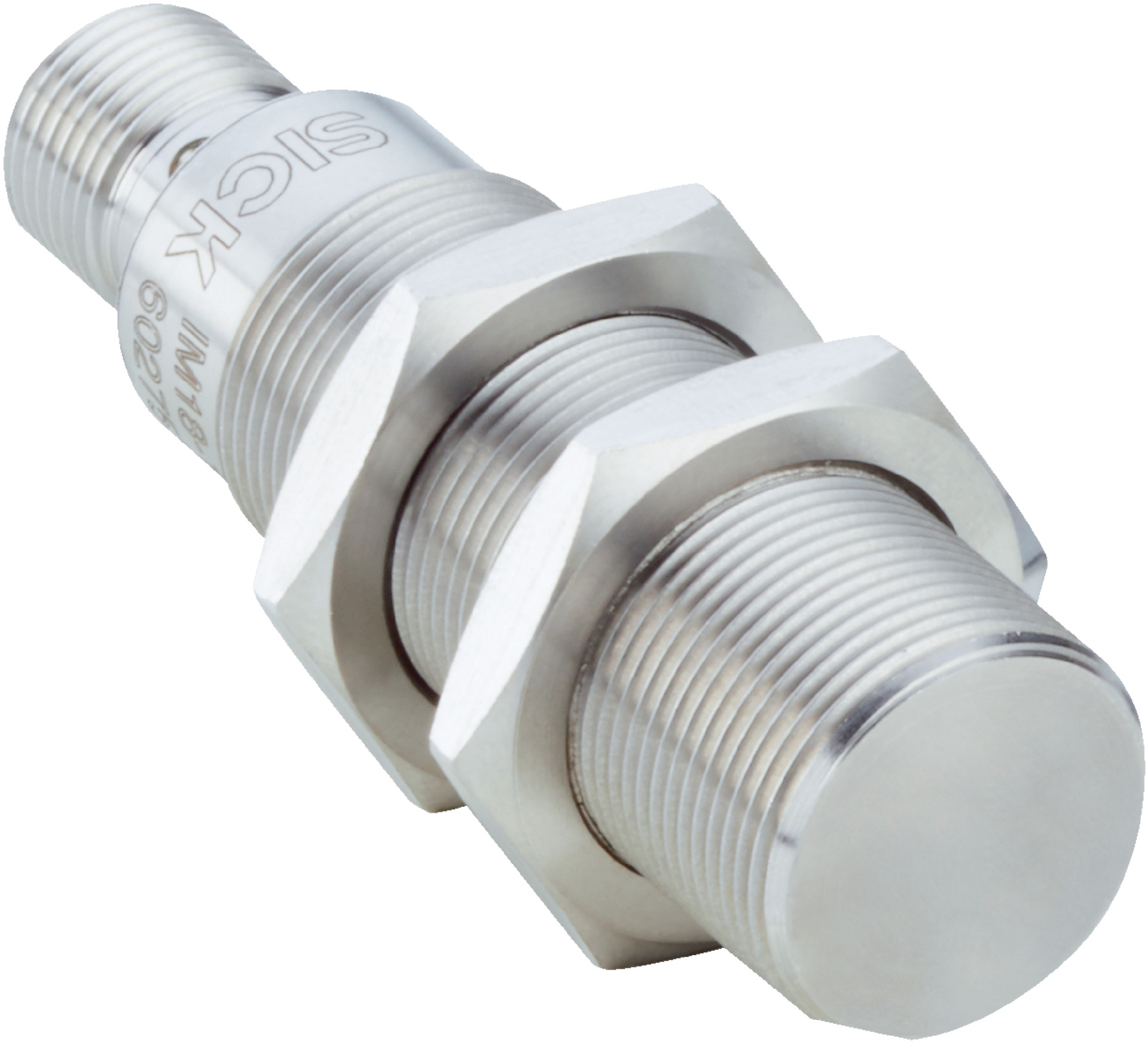

M18 Inductive Proximity Sensor | Stainless Steel | IP68 & IP69K Rated | 10 mm Sensing Range | by SICK
The M18 Inductive Proximity Sensor is designed for reliable detection in hygienic and washdown zones, featuring a robust stainless steel housing and an IP68/IP69K rating for high protection. With a sensing range of 10 mm and a switching frequency of 300 Hz, it's perfect for industrial automation applications requiring durability and precision.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 40 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ≤ 10%
- EMC compliant according to EN 60947-5-2
- Continuous current: ≤ 200 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 30 g, 11 ms; vibration resistance: 10 to 55 Hz, 1 mm
- Operating temperature range: -25 °C to +85 °C
- Housing and sensing face material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Protection class: III
- Thread length: 42 mm
- Tightening torque max: ≤ 50 Nm
- Dimensions (H x L x W): 18mm x 63.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Metric housing with M18 x 1 thread size
- Flush installation type
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- Switching frequency of 300 Hz
- NPN normally open switching output with DC 3-wire electrical wiring
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V4A resistant to cleaning agents
- Visual adjustment indicator for easy setup
- Includes mounting nut and washers made of V4A stainless steel
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation standards to ensure proper mounting and wiring.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring reliable proximity detection
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- High ingress protection (IP68, IP69K) ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IM18-10BNS-NC1 inductive sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
