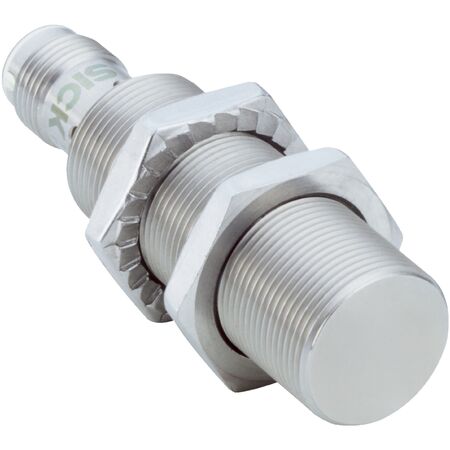

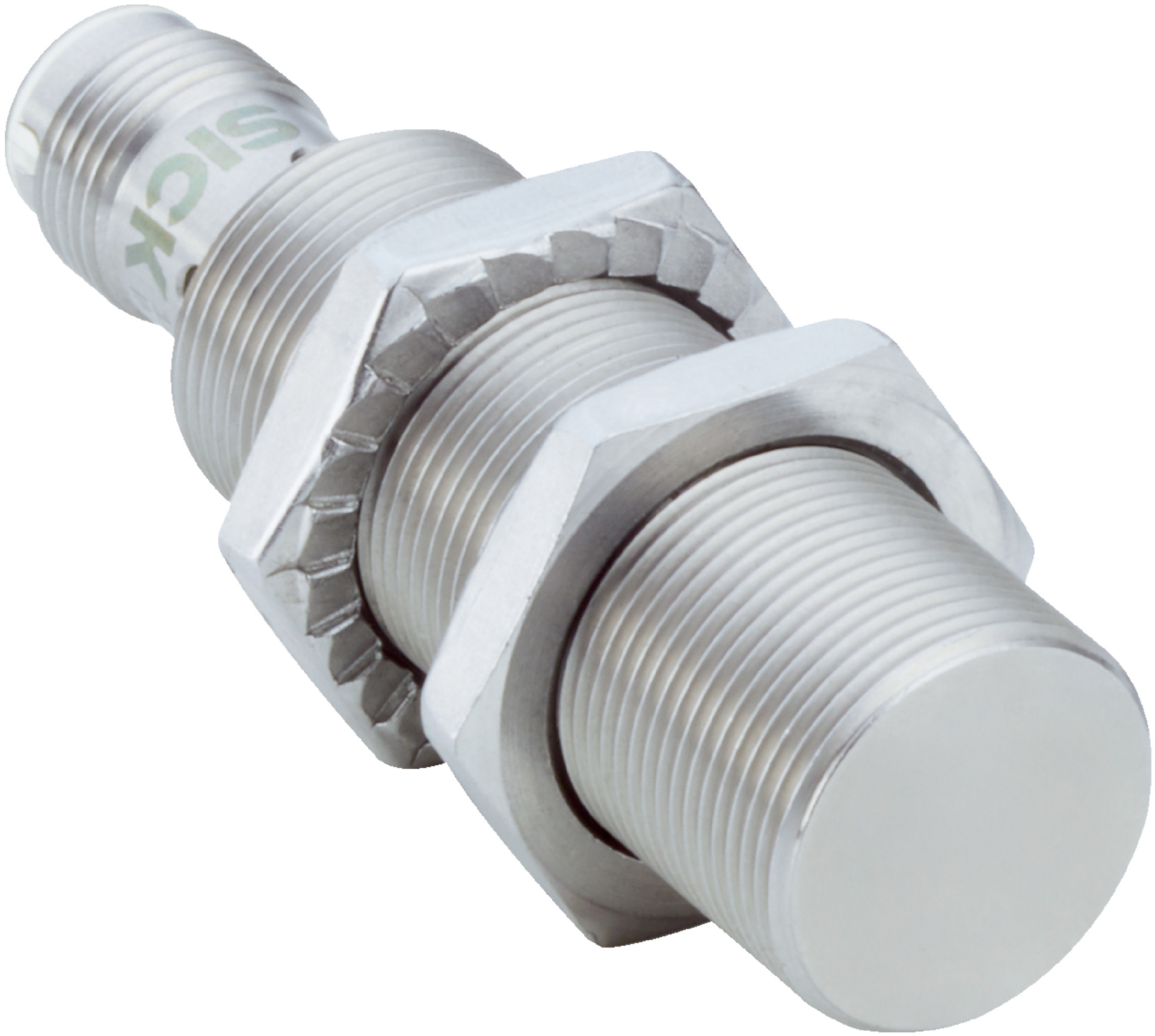

M18 Inductive Proximity Sensor | Stainless Steel | IP68 & IP69K Rated | 8mm Sensing Range | by SICK
The M18 Inductive Proximity Sensor is designed for industrial automation, featuring a robust stainless steel housing and an impressive IP68/IP69K rating for protection against dust and water. With a sensing range of 8 mm and a switching frequency of 50 Hz, this sensor is perfect for object detection in harsh environments, ensuring reliable performance even in the presence of coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 300 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: PNP, Normally Closed (NC)
- Electrical wiring: DC 3-wire
- Protection class: III
- EMC according to EN 60947-5-2
- Shock and vibration resistance: 100 g / 5 ms / 1000 cycles; 150 g / 1 million cycles; 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz / 60 g
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Thread size: M18 x 1
- Enclosure rating: IP68, IP69K
- Dimensions (H x L x W): 18mm x 64.7mm x 18mm
- Weight: 0.1 kg
Key Features
- Metric housing with M18 x 1 thread size
- Flush installation type
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Switching frequency of 50 Hz with PNP NC output
- Connection via male M12 4-pin connector
- Housing and sensing face made of stainless steel V2A (DIN 1.4305 / AISI 303)
- IP68 and IP69K rated for high protection against dust and water
- Resistant against coolant lubricants
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (100 g / 5 ms / 1000 cycles; 150 g / 1 million cycles)
- Wide ambient operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel following manufacturer guidelines to ensure proper mounting and electrical connection.
Applications
- Industrial automation for object detection
- Use in zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- High resistance to harsh environments minimizes environmental contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMI18-08BPOVC0S inductive sensor is available for immediate purchase, ideal for industrial automation applications requiring reliable sensing in harsh environments.
