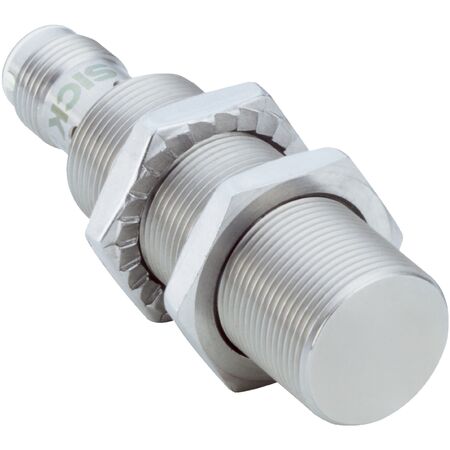

M18 Inductive Proximity Sensor | Stainless Steel Housing | IP68 & IP69K Rated | 8mm Sensing Range | by SICK
The M18 Inductive Proximity Sensor is designed for industrial automation, featuring a robust stainless steel housing and an impressive IP68/IP69K rating for high protection in harsh environments. With an 8mm sensing range and a switching frequency of 50 Hz, this sensor is perfect for detecting metal objects in areas with coolants and lubricants, ensuring reliable performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 300 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Protection class: III
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Tightening torque max: ≤ 90 Nm
- EMC compliant according to EN 60947-5-2
- Shock and vibration resistance: 100 g / 5 ms / 1000 cycles; 150 g / 1 million cycles; 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz / 60 g
- Dimensions (H x L x W): 18mm x 64.7mm x 18mm
- Weight: 0.1 kg
Key Features
- Metric housing with M18 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Flush installation type
- Switching frequency of 50 Hz
- NPN normally open switching output with DC 3-wire electrical wiring
- Male connector M12, 4-pin connection type
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V2A, resistant against coolant lubricants
- Shock and vibration resistant withstanding 100 g / 5 ms / 1000 cycles
- Operating temperature range from -25 °C to +75 °C
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct mounting torque and electrical connection for optimal sensor performance and safety.
Applications
- Industrial automation for detecting metal objects
- Use in zones with coolants and lubricants
- Harsh environments requiring robust sensor protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces need for frequent replacements
- High resistance to harsh environments minimizes waste
- Energy efficient operation with low power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMI18-08BNSVC0S inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
