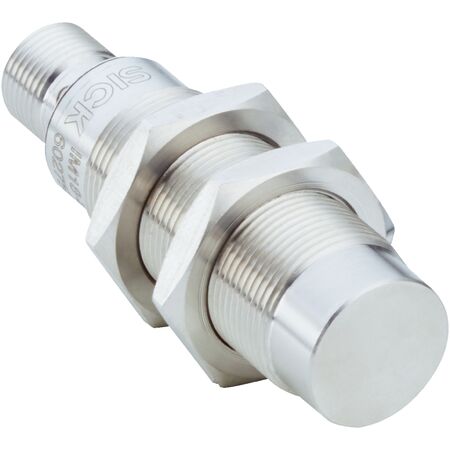

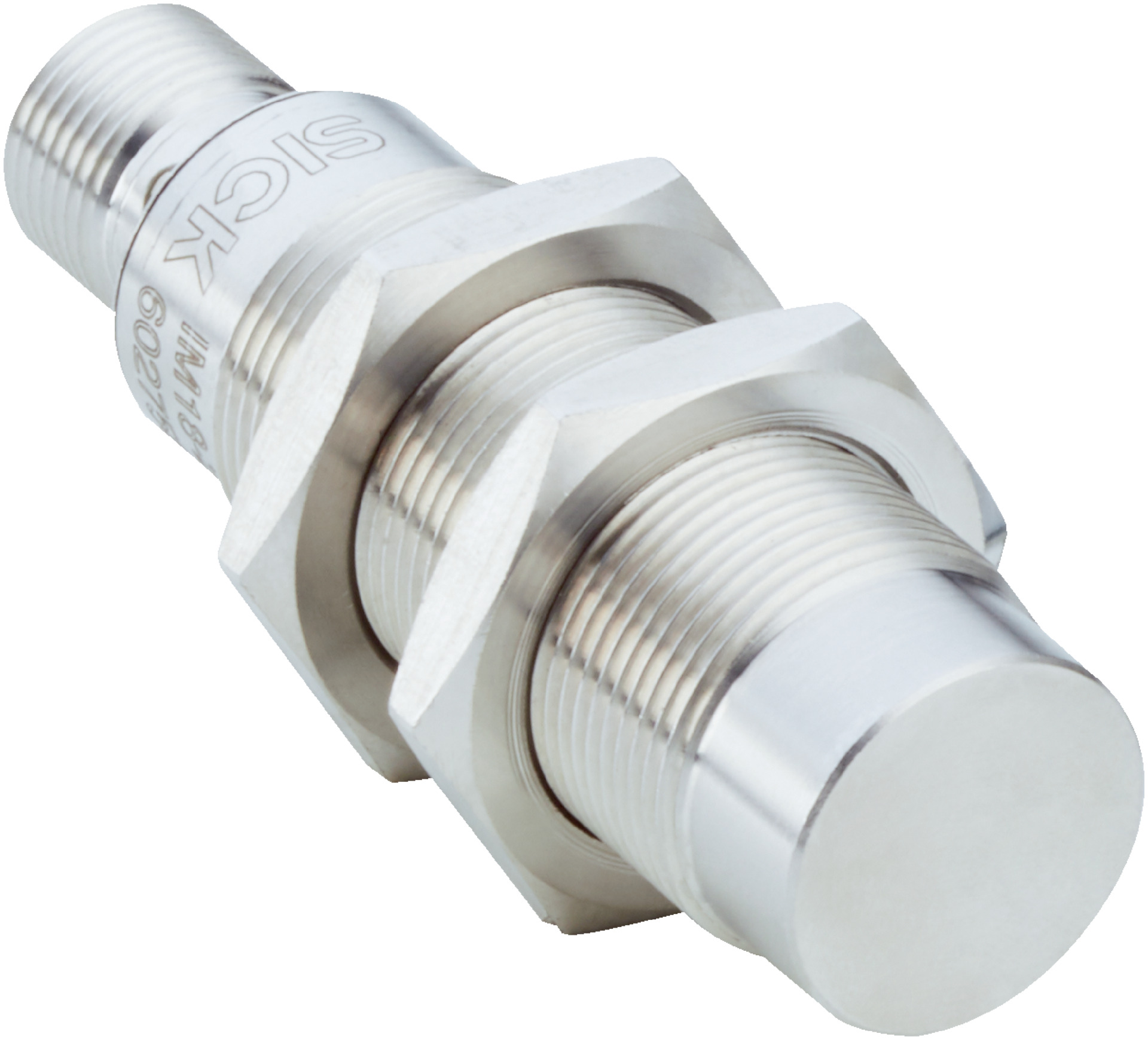

M18 Inductive Proximity Sensor | Stainless Steel | IP68 & IP69K Rated | IO-Link Communication | by SICK
The M18 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a robust stainless steel housing and an IP68/IP69K enclosure rating. With a sensing range of 20 mm and IO-Link communication for smart connectivity, it's perfect for harsh environments with coolants and lubricants, ensuring durability and efficiency in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 15 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- Short-circuit and power-up pulse protection included
- Housing and sensing face material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Protection class: III
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Process data length: 1 Byte
- Switching output: PNP, Normally Open (NO)
- Enclosure rating: IP68, IP69K
- Dimensions (H x L x W): 18mm x 63.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Metric housing with M18 x 1 thread size
- Non-flush installation type
- Sensing range Sn of 20 mm with safe sensing range Sa of 16.2 mm
- Switching frequency of 200 Hz with PNP NO output
- Male connector M12, 4-pin connection
- Enclosure rating IP68, IP69K for high protection
- Sensing face made of stainless steel V2A resistant to coolant lubricants
- Triple sensing range and visual adjustment indicator
- IO-Link communication interface for smart connectivity
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature from –25 °C to +85 °C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct mounting torque and electrical connections.
Applications
- Industrial automation for object detection
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Energy-efficient operation with low voltage DC supply
- Resistant to harsh environments reducing environmental contamination risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now
The SICK IM18-20NPS-VC1 inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
